TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

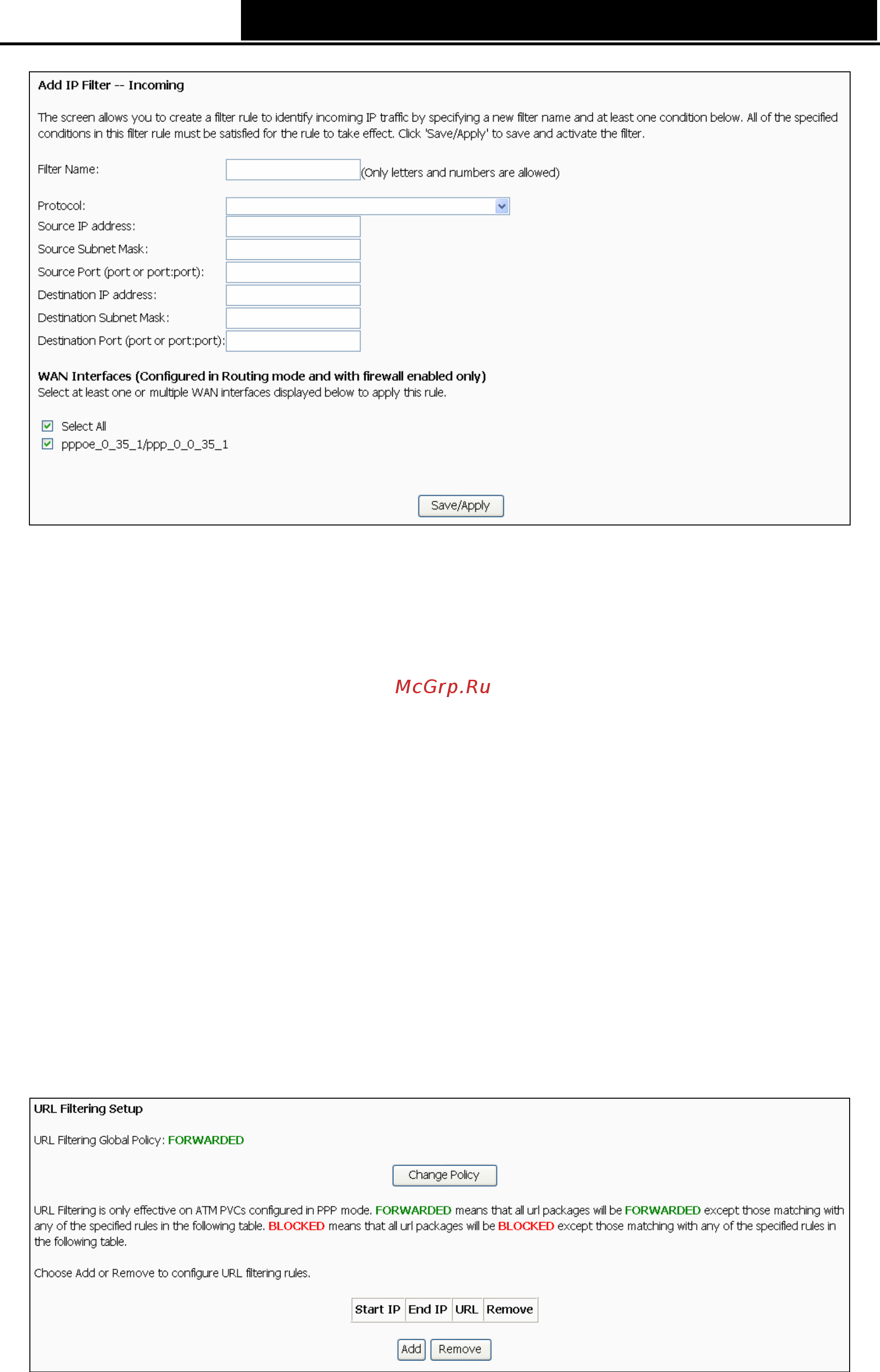

Figure 4-46

2. Enter the Filter name for the rule, it is exclusive and must be filled in.

3. Select Protocol in the drop-down list, enter Source IP address, Source Subnet Mask, Source

Port, Destination IP address, Destination Subnet Mask, and Destination Port for the rule.

4. Select at least one WAN interfaces displayed below to apply this rule.

5. Click Save/Apply to save this entry.

)

Note:

When you add an Incoming IP Filtering entry, you must configure at least one condition on the

preceding screen except the Filter name. If you leave Protocol blank, it means that the rule is

effective to all protocols, if you leave the Source IP address and/or Destination IP address blank, it

suggests that all Source IP addresses and/or Destination IP addresses are controlled by the rule,

if you leave the Source Port and/or Destination Port blank, it suggests that all Source Ports and/or

Destination Ports are controlled by the rule.

4.5.5.3 URL Filtering

This section allows you to configure the filter rules based on URL to control the computers in the

LAN to access the specified port.

Figure 4-47
