TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

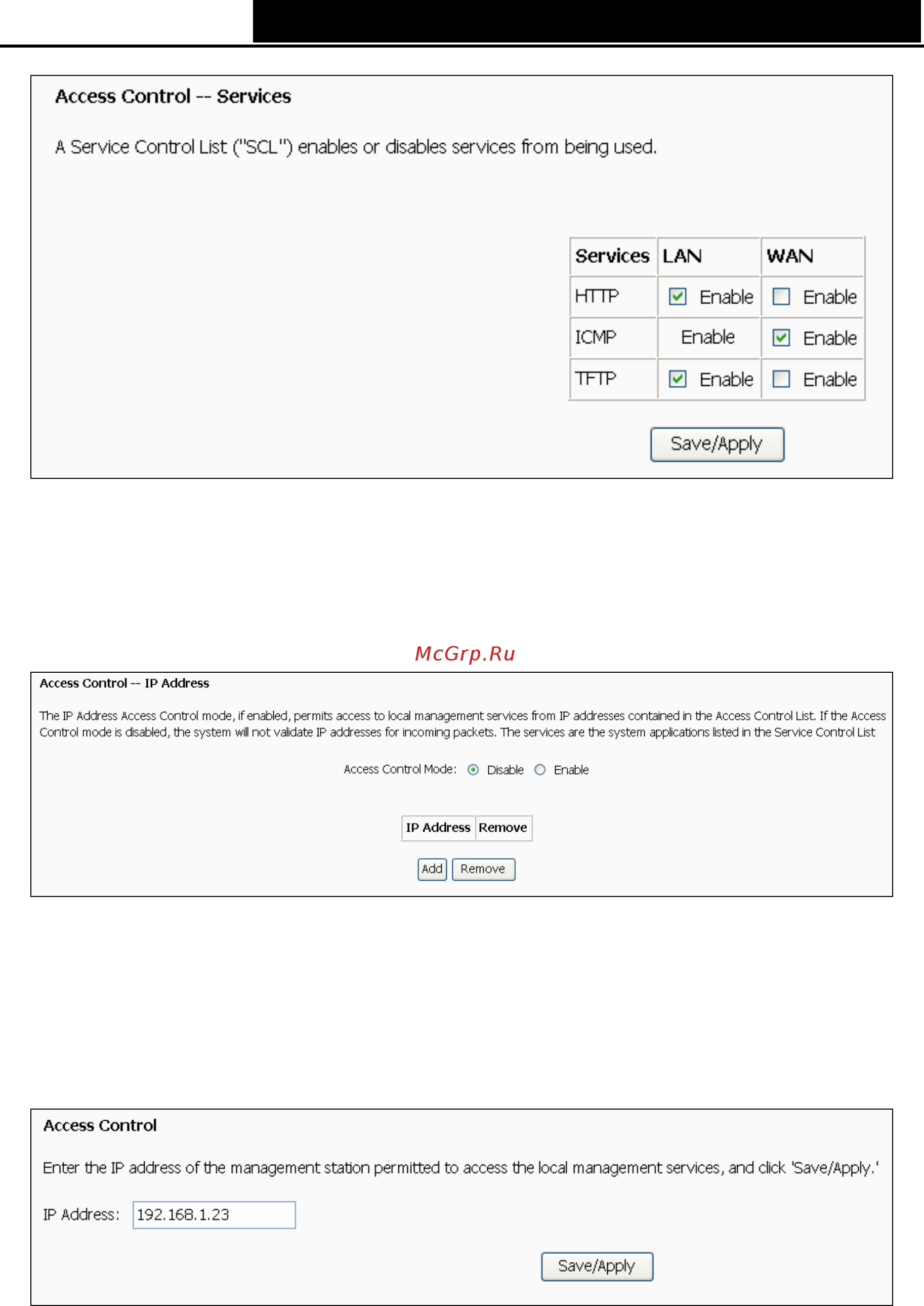

Figure 4-96

4.8.6.2 IP Address

Choose “Access Control→IP Address” menu, and can view and configure the IP address access

control in the screen as shown in Figure 4-97. If enabled, only PCs with IP addresses listed are

allowed to access the Router.

Figure 4-97

To add a new entry, follow the steps below.

1. Click the Add button in Figure 4-97 to go to the Access Control page in the screen as shown

in Figure 4-98.

2. Enter the IP address (e.g. 192.168.1.23) you want to add in the IP Address filed.

3. Click Save/Apply to save your configuration.

Figure 4-98

4.8.6.3 Password

Choose “Access Control→Password” menu, and you can change the factory default password of

the Router in the screen as shown in Figure 4-99.
