TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

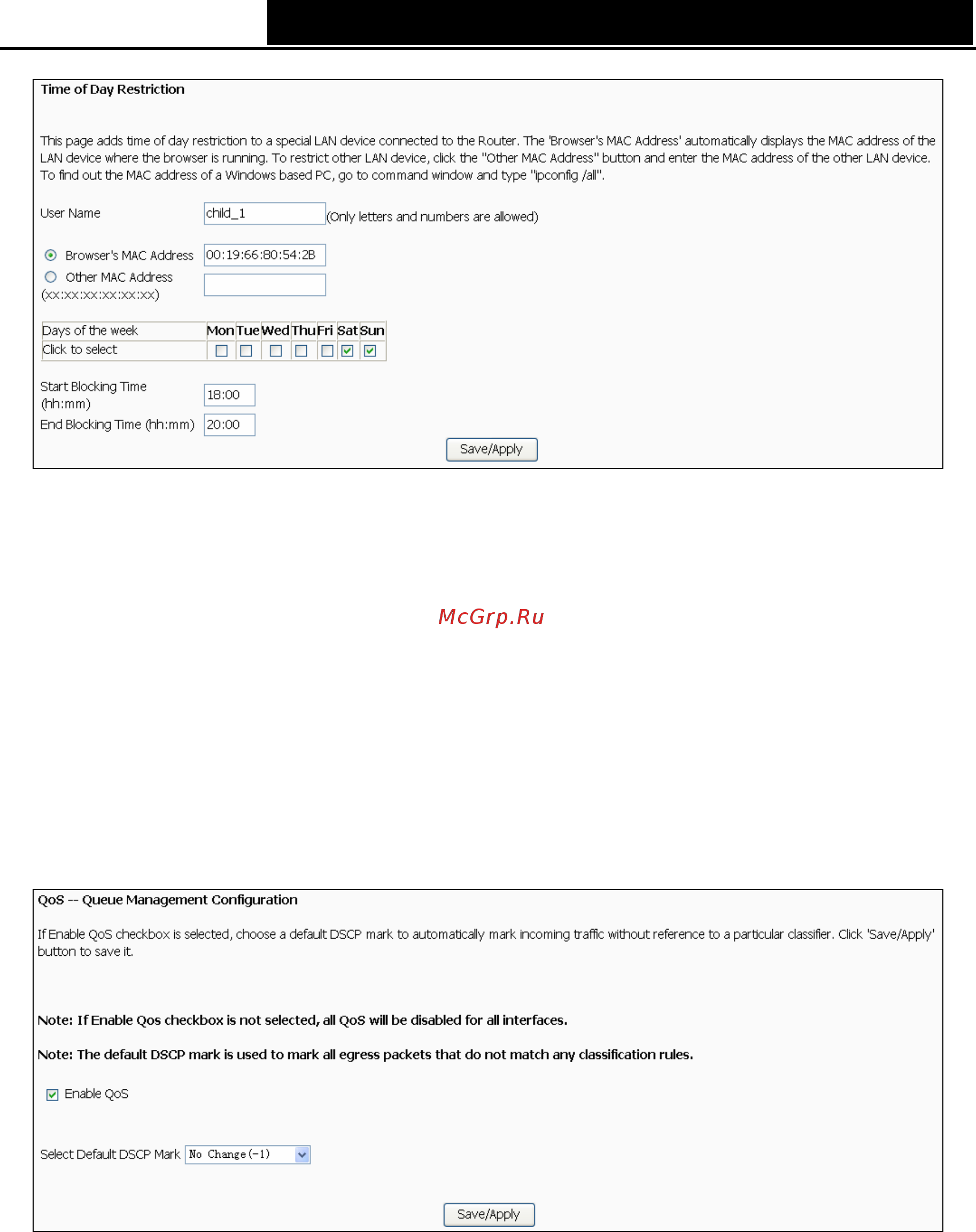

Figure 4-52

To remove an existing entry, follow the steps below.

1. Check the box in the Remove column of the entry as shown in Figure 4-51.

2. Click the Remove button below.

4.5.6 Quality of Service

Choose “Advanced Setup→Quality of Service”, you can enable QoS (Quality of Service) on the

screen shown in Figure 4-53. QoS helps to prioritize data as it enters your router. By attaching

special identification marks or headers to incoming packets, QoS determines which queue the

packets enter, based priority. This is useful when there are certain types of data you want to give

higher priority, such as voice data packets give higher priority than Web data packets. This option

will provide better service of selected network traffic over various technologies.

Figure 4-53

Select the Enable QoS checkbox to enable all QoS for all interfaces.

Select a Default DSCP Mark from drop-down list to automatically mark incoming traffic without

reference to a particular classifier.

Click Save/Apply to save the current configuration.

)

Note:

The default DSCP mark is used to mark all egress packets that do not match any classification

rules.
