TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

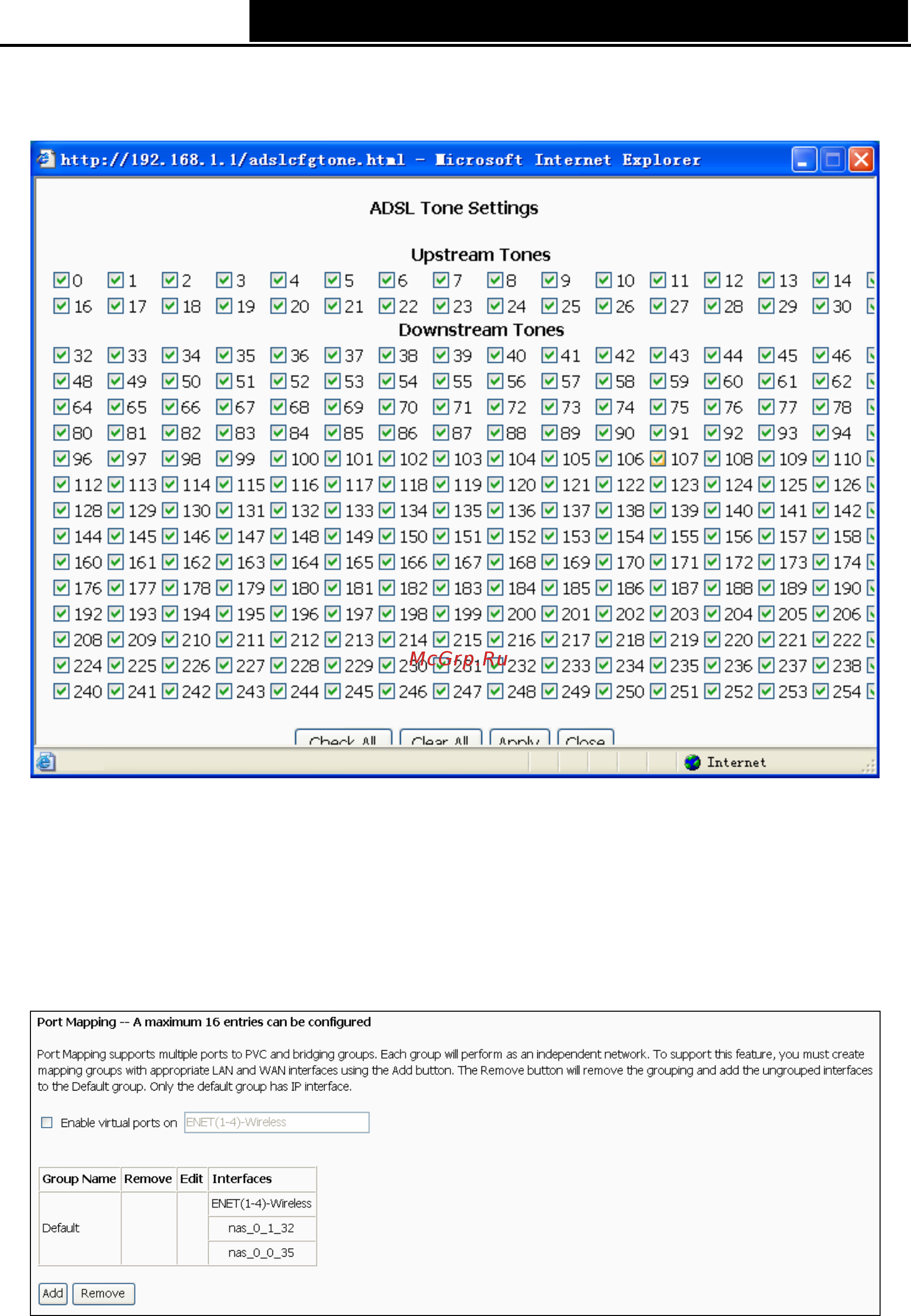

If you want to select the tone, click the Tone Selection button to go to the ADSL Tone Settings

page as shown in Figure 4-68.

Figure 4-68

4.5.10 Port Mapping

Choose “Advanced Setup→Port Mapping” menu, you can view and configure the parameters in

the screen as shown in Figure 4-69.

Port Mapping supports multiple ports to PVC and bridging groups. Each group will perform as an

independent network.

Figure 4-69

To add a Port Mapping group:

1. Click the Add button, and Figure 4-70 pop up, and then you will set the port mapping group.
