TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

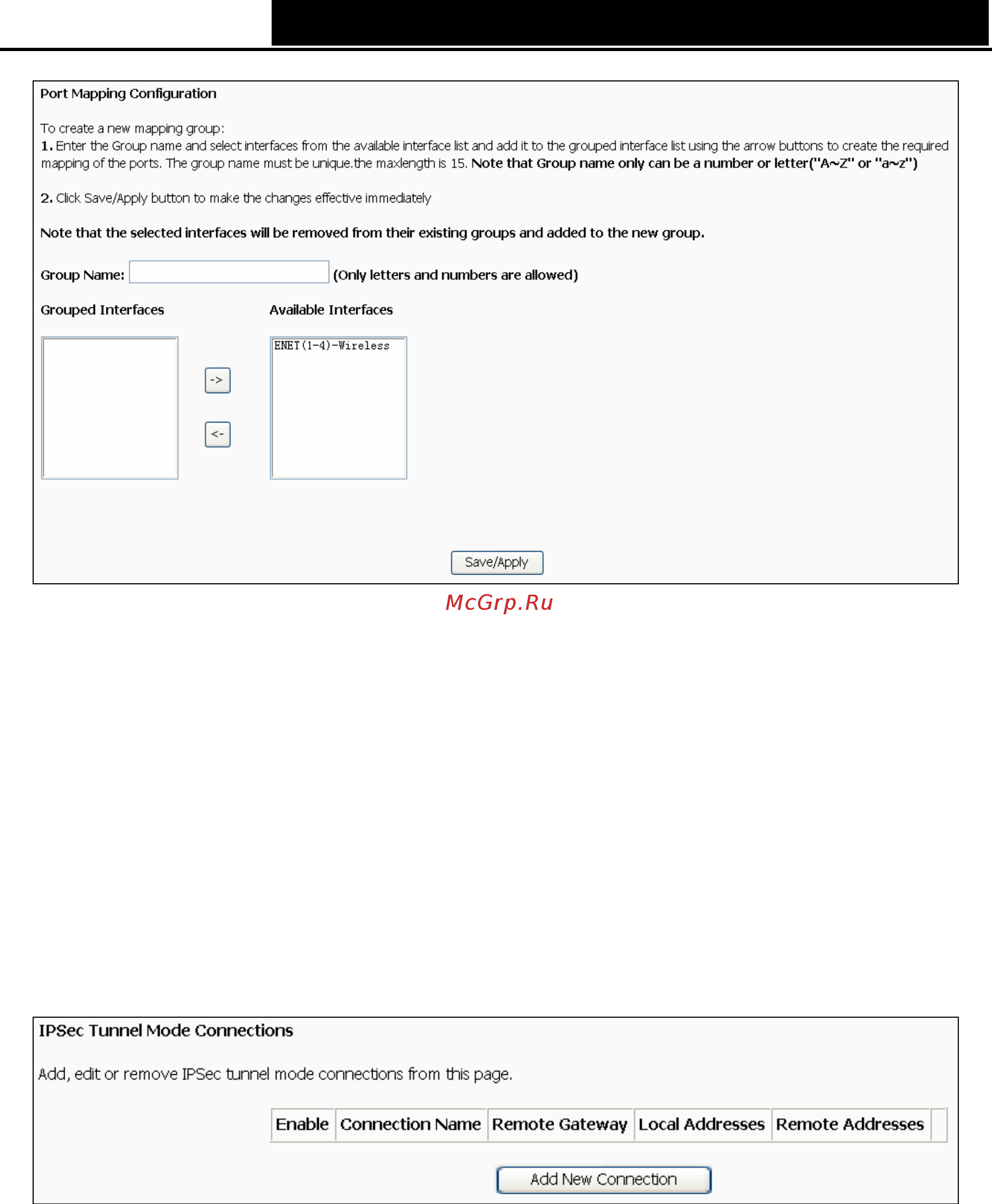

Figure 4-70

2. Enter the Group name and select interfaces from the available interface list and add it to the

grouped interface list using the arrow buttons to create the required mapping of the ports. The

group name must be unique. The max length is 15.

Click Save/Apply button to make the changes effective immediately

)

Note:

Group name only can be a number or letter 0("A~Z" or "a~z").

4.5.11 IPSec

Choose “Advanced Setup→IPSec”, you can Add/Remove or Enable/Disable the IPSec tunnel

connections on the screen as shown in Figure 4-71.

Figure 4-71

This section will guide you to configure a VPN tunnel between two TD-W8950NDs. The topology is

as follows.
