Tp-Link TD-W8950ND [56/94] Routing

TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

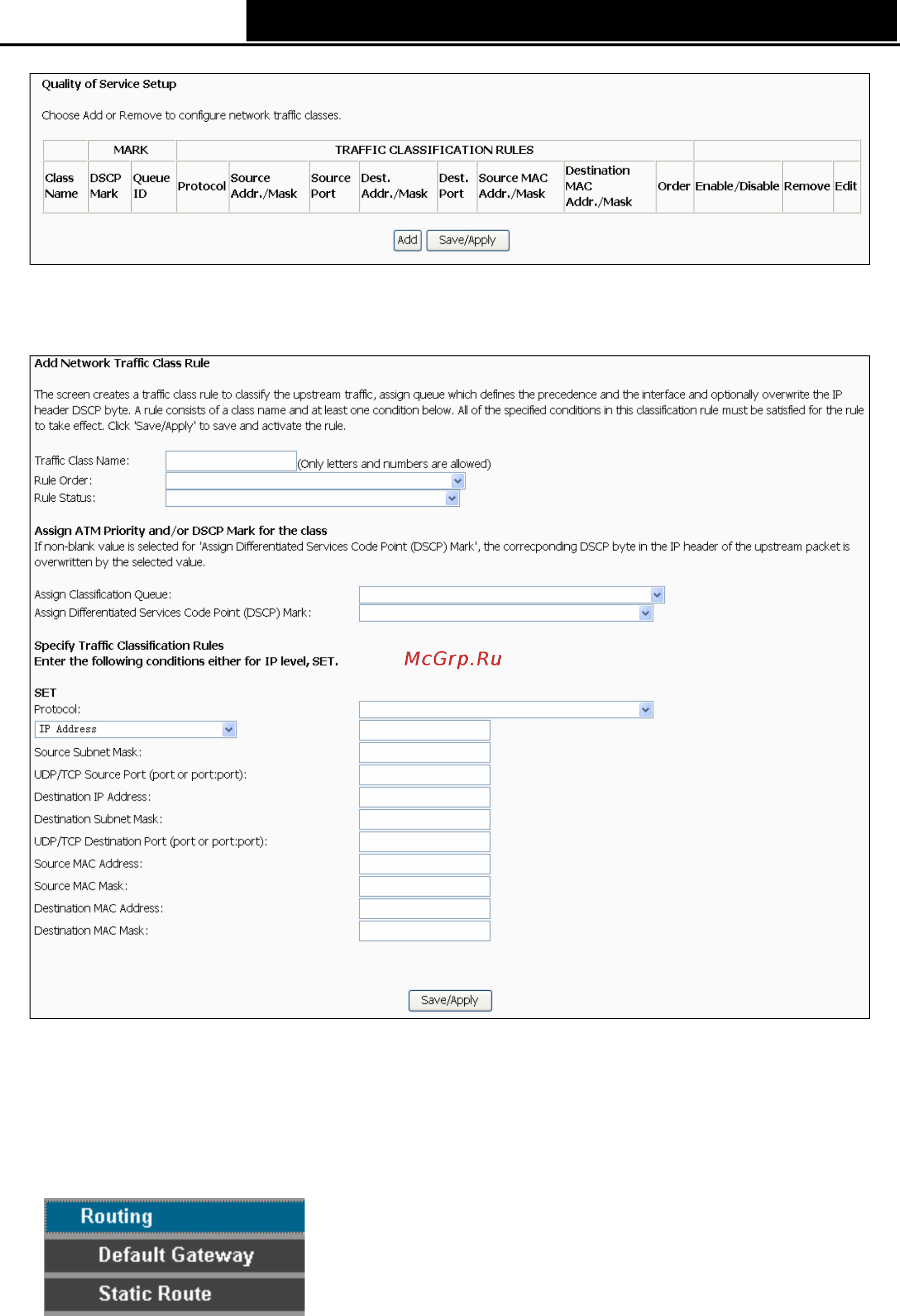

Figure 4-56

Click the Add button Figure 4-56, and you can configure the QoS on the next screen.

Figure 4-57

After you specify the condition, click Save/Apply to save the entry.

4.5.7 Routing

Choose “Advanced Setup→Routing” menu, you can see two submenus under the Routing menu

as shown in Figure 4-58.

Figure 4-58
