TD-W8950ND 150Mbps Wireless Lite N ADSL2+ Modem Router User Guide

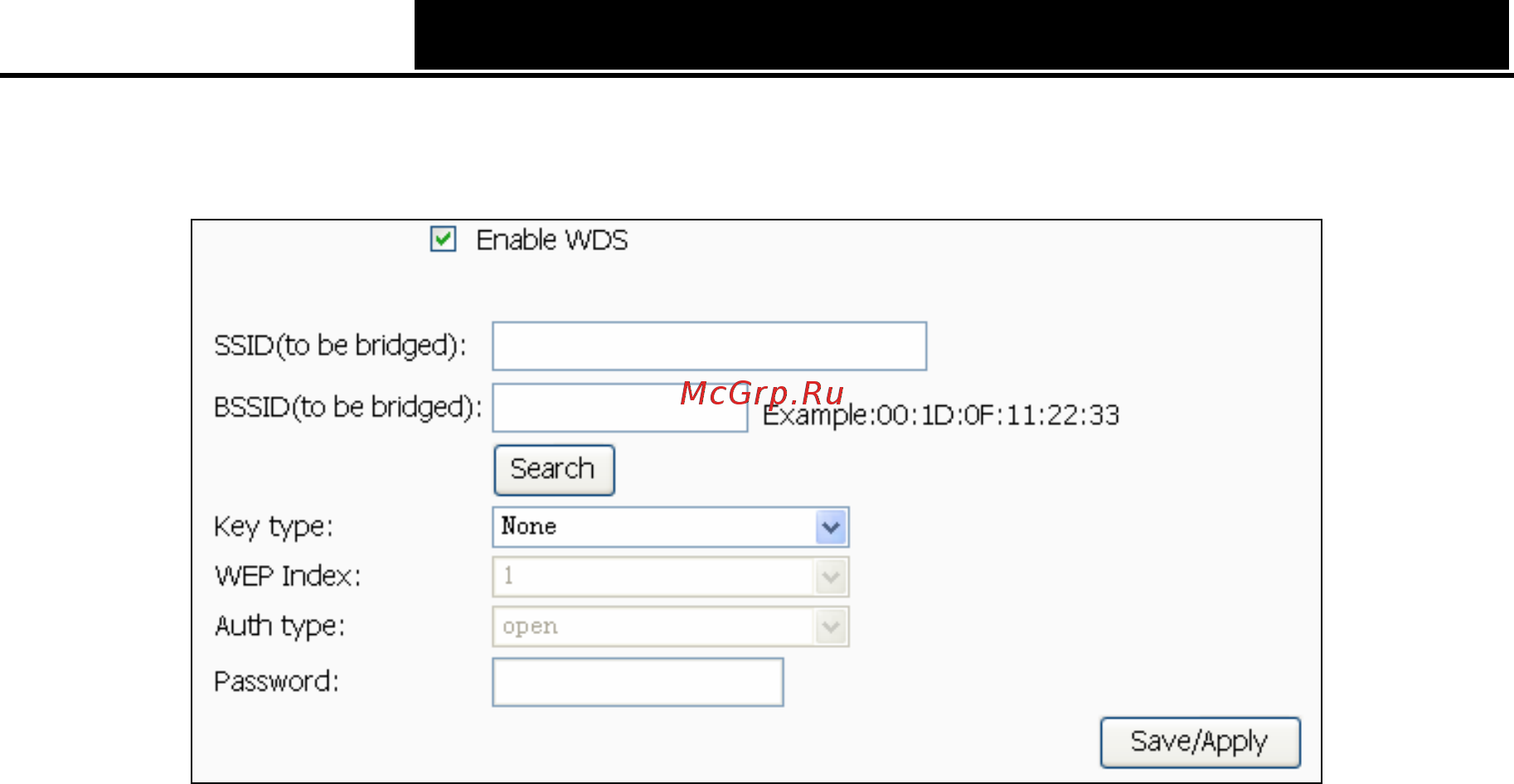

more WLANs. If this checkbox is selected, you will have to set the following parameters as

shown below. Make sure the following settings are correct

¾ SSID(to be bridged): The SSID of the AP your Router is going to connect to as a client.

You can also use the search function to select the SSID to join.

¾ BSSID(to be bridged): The BSSID of the AP your Router is going to connect to as a client.

You can also use the search function to select the BSSID to join.

¾ Search: Click this button, you can search the AP which runs in the current channel.

¾ Key type: This option should be chosen according to the AP's security configuration.It is

recommended that the security type is the same as your AP's security type

¾ WEP Index: This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).It

indicates the index of the WEP key.

¾ Auth Type: This option should be chosen if the key type is WEP(ASCII) or WEP(HEX).It

indicates the authorization type of the Root AP.

¾ Password: If the AP your Router is going to connect needs password, you need to fill the

password in this blank.

Click Apply/Save to save your settings.

4.6.2 Security

Choose menu “Wireless→Security”, you can configure the security settings of your wireless

network.

There are five wireless security modes supported by the Router: WEP (Wired Equivalent Privacy),

WPA (Wi-Fi Protected Access), WPA2 (Wi-Fi Protected Access 2), WPA2-PSK (Pre-Shared Key),

WPA-PSK (Pre-Shared Key).
