TD-W8151N 150Mbps Wireless N ADSL2+ Modem Router User Guide
32

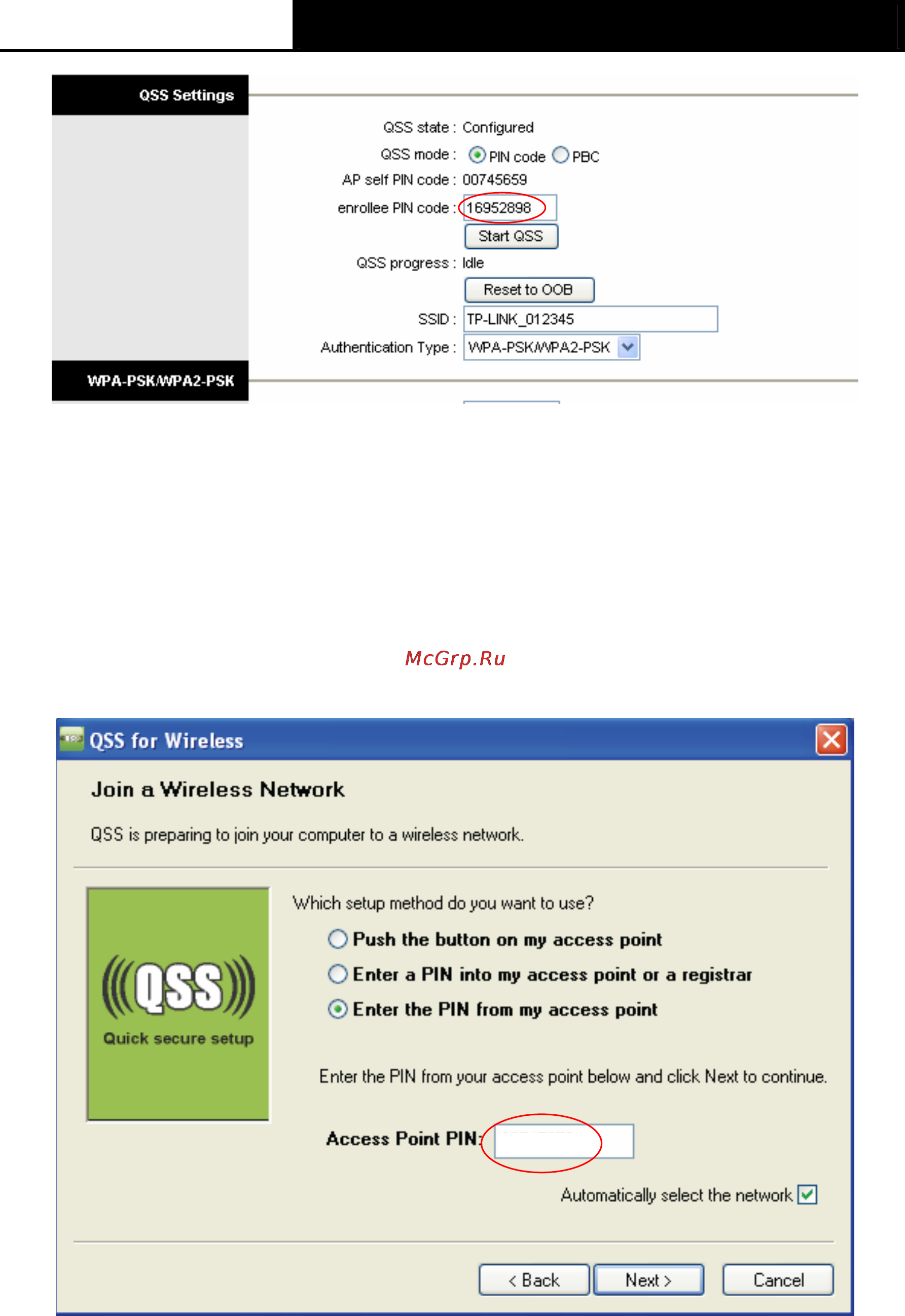

Figure 4-21
Method Two: Enter the PIN from my Router
Step 1: Get the Current PIN code of the Router from AP self PIN code in Figure 4-21 (each
Router has its unique PIN code. Here takes the PIN code 55924054 of this Router
for example).
Step 2: For the configuration of the wireless adapter, please choose “Enter a PIN from my
access point” in the configuration utility of the QSS as below, and enter the PIN
code of the Router into the field after “Access Point PIN”. Then click Next.
00745659
The QSS Configuration Screen of Wireless Adapter
)
Note:
The default PIN code of the Router can be found in its label or the QSS configuration screen
as Figure 4-21.
• QSS progress: Show the current QSS progress.
