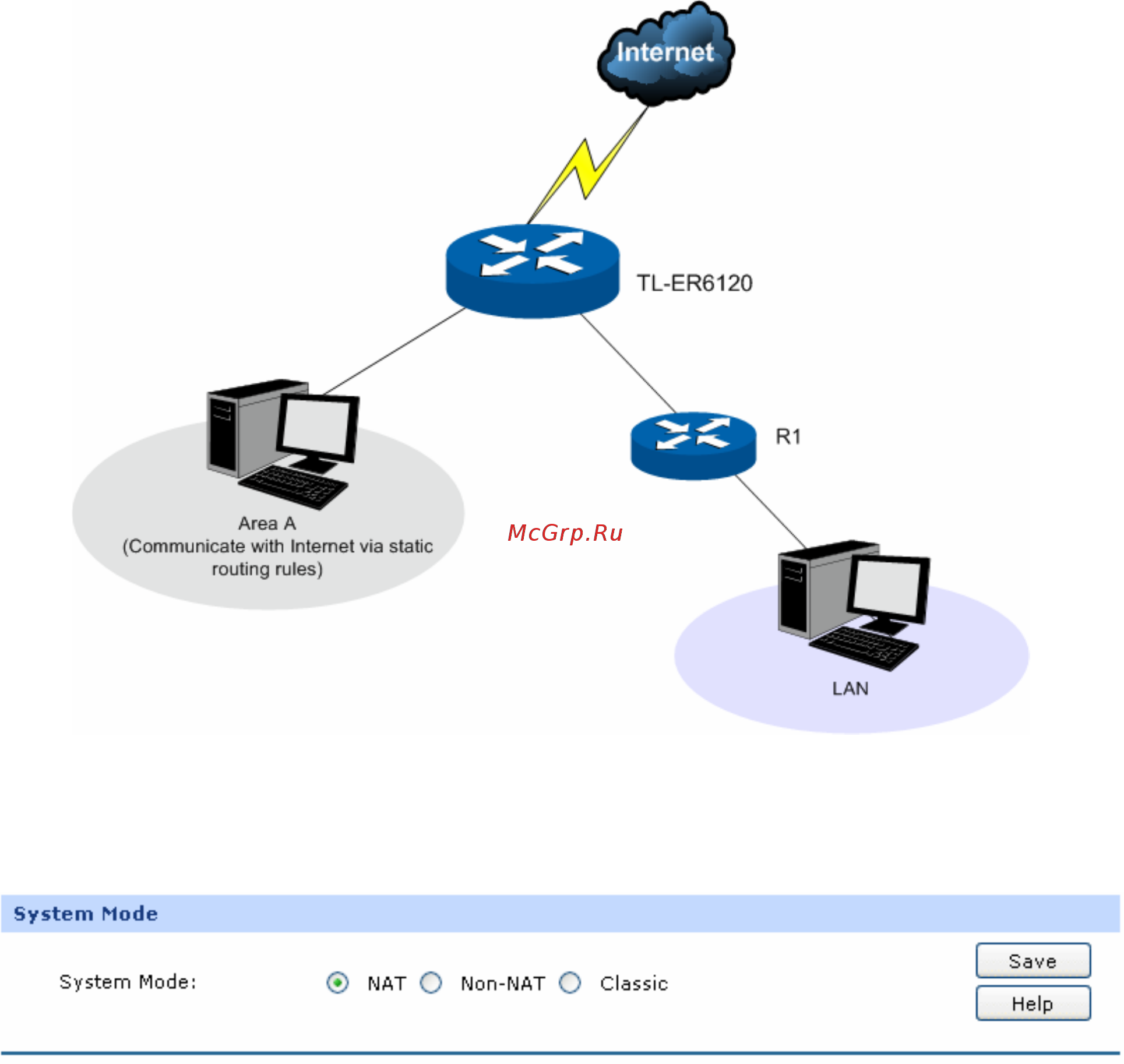

Figure 3-4 Network Topology – Classic Mode
Choose the menu Network→System Mode to load the following page.
Figure 3-5 System Mode
You can select a System Mode for your Router according to your network need.
z NAT Mode
NAT (Network Address Translation) mode allows the Router to translate private IP addresses within
internal networks to public IP addresses for traffic transport over external networks, such as the
Internet. Incoming traffic is translated back for delivery within the internal network. However, the
Router will drop all the packets whose source IP addresses are in different subnet of LAN port. For
example: If the LAN port of the Router is set to 192.168.0.1 for IP address and 255.255.255.0 for the
Subnet Mask, then the subnet of LAN port is 192.168.0.0/24. The packet with 192.168.0.123 as its
source IP address can be transported by NAT, whereas the packet with 20.31.76.80 as its source IP
address will be dropped.
