Client:

Enter the IP address of the client which is allowed to

connect to this L2TP/PPTP server. The default IP "0.0.0.0"

means any IP address is acceptable.

IP Pool:

Select the IP Pool Name to specify the address range for the

server's IP assignment. This item is available for Server

mode.

Remote Subnet:

Enter the IP address range of your remote network. (It's

always the IP address range of LAN on the remote peer of

VPN tunnel.) It’s the combination of IP address and subnet

mask.

Status

Activate or inactivate the entry.

¾ List of Configurations

In this table, you can view your configurations of the tunnels and edit them by the action buttons.

The No.1 entry in Figure 3-63 indicates: this tunnel is encapsulated by using L2TP. Its user name is

test, the password can be configured, and the Router is configured in Client mode. The remote

server is 172.30.70.161 and the remote subnet is 192.168.2.0/24. This entry is enabled.

3.5.3.2 IP Address Pool

On this page, you can configure the IP Address Pool.

Choose the menu VPN→L2TP/PPTP→IP Address Pool to load the following page.

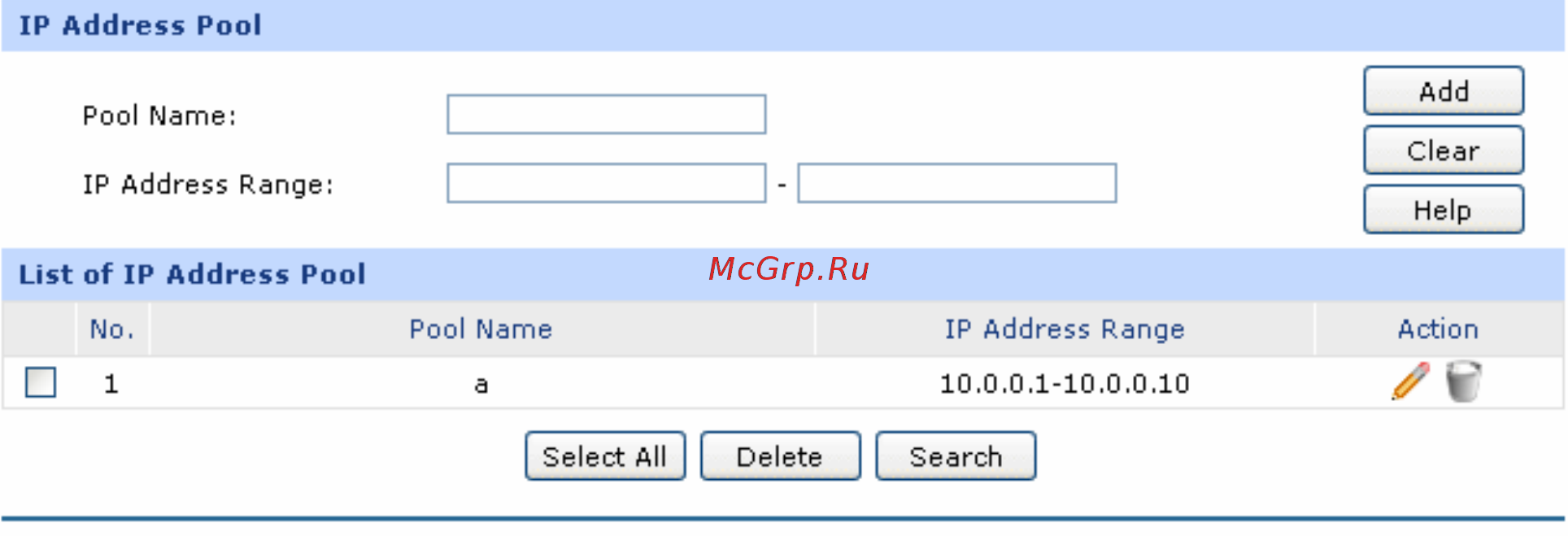

Figure 3-64 IP Address Pool

The following items are displayed on this screen:

¾ IP Address Pool
