-71-

Indicates that this entry is imported to the list on IP-MAC Binding page, but not

effective yet.

Indicates that the IP and MAC address of this entry are already bound.

To bind the entries in the list, check these entries and click the <Import> button, then the settings will

take effect if the entries do not conflict with the existed entries.

Note:

If the local hosts suffered from ARP attack, you cannot add IP-MAC Binding entries on this page.

Please add entries manually on 3.4.1.1 IP-MAC Binding.

3.4.1.3 ARP List

On this page, the IP-MAC information of the hosts which communicated with the Router recently will

be saved in the ARP list.

Choose the menu Firewall→Anti ARP Spoofing→ARP List to load the following page.

Figure 3-48 ARP List

The configurations for the entries is the same as the configuration of List of Scanning Result on 3.4.1.2

ARP Scanning page.

The unbound IP-MAC information will be replaced by new IP-MAC information or be automatically

removed from the list if it has not been communicated with others for a long time. This period is

regarded as the aging time of the ARP information.

3.4.2 Attack Defense

With Attack Defense function enabled, the Router can distinguish the malicious packets and prevent

the port scanning from external network, so as to guarantee the network security.

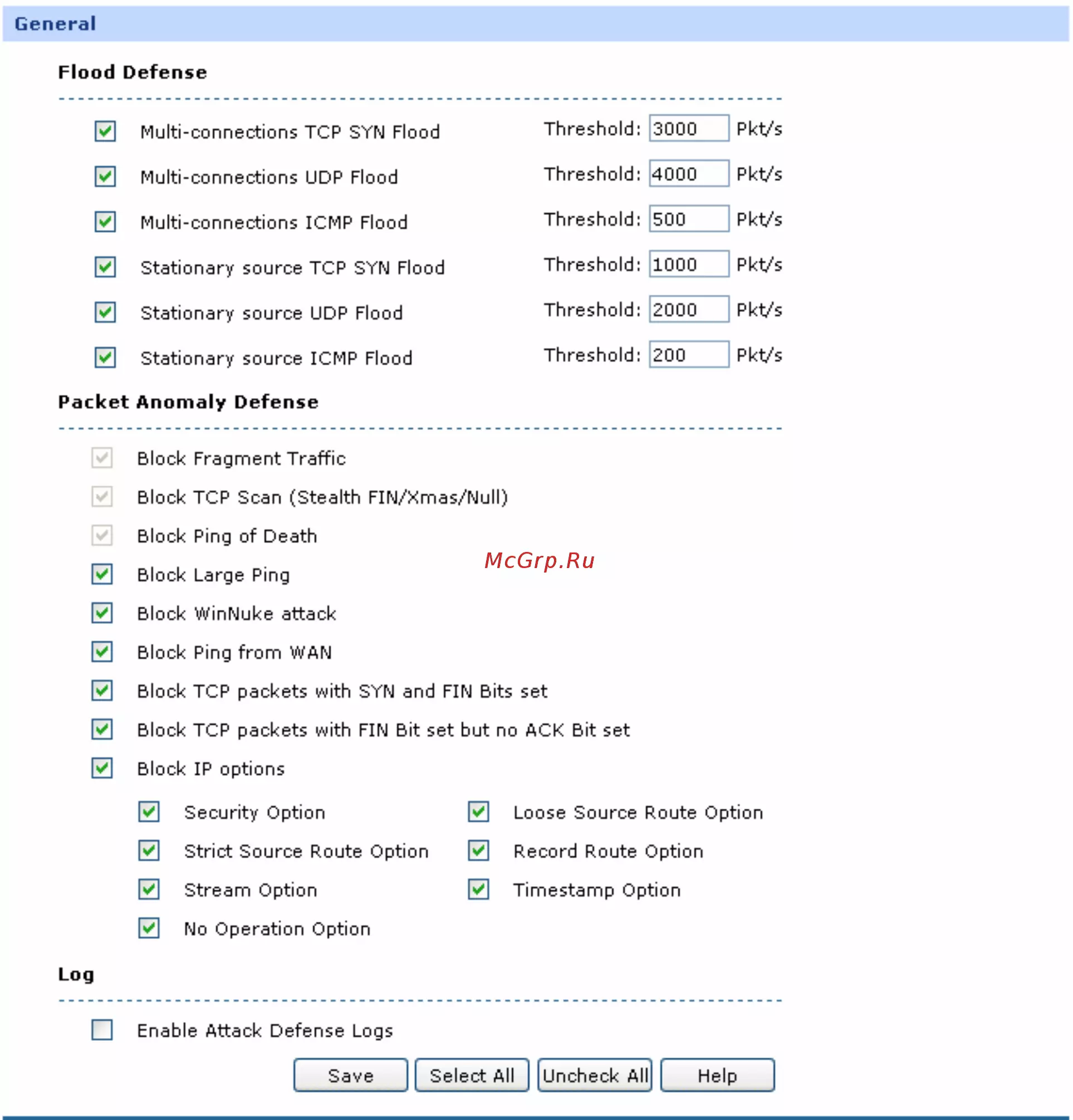

Choose the menu Firewall→Attack Defense→Attack Defense to load the following page.
