-97-
Pool Name:
Specify a unique name to the IP Address Pool for
identification and management purposes.
IP Address Range:
Specify the start and the end IP address for IP Pool. The
start IP address should not exceed the end address and
the IP ranges must not overlap.
¾ List of IP Pool
In this table, you can view the information of IP Pools and edit them by the action buttons.
3.5.3.3 List of L2TP/PPTP Tunnel
This page displays the information and status of the tunnels.
Choose the menu VPN→L2TP/PPTP→List of L2TP/PPTP Tunnel to load the following page.

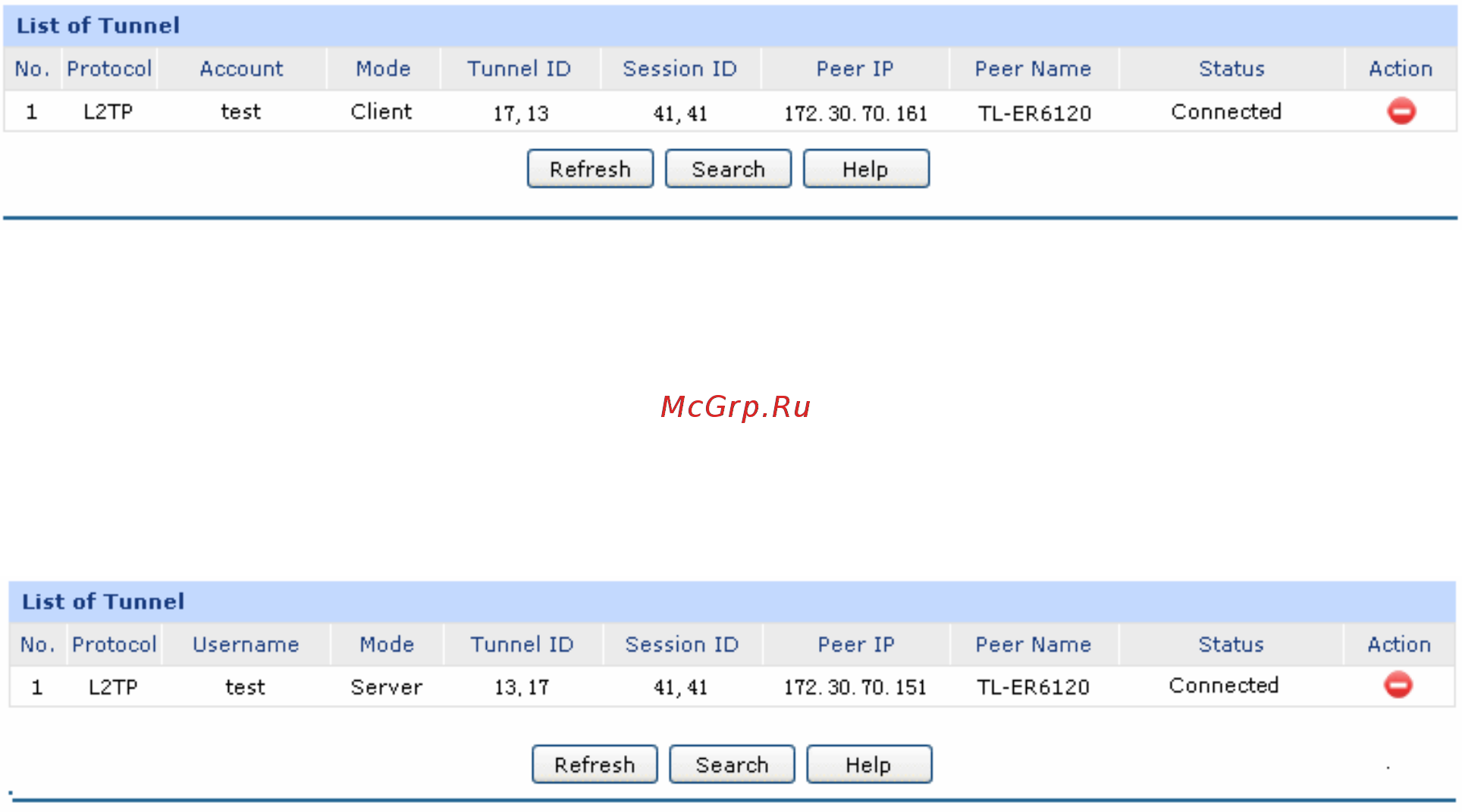

Figure 3-65 List of L2TP/PPTP Tunnel
Figure 3-65 displays the connection status of the NO.1 entry in the list of tunnel in Figure 3-64. This
tunnel has been successfully established. Each tunnel has a Tunnel ID and a Session ID. The ID value
in client corresponds to that in server. The connection information of this tunnel in the server is shown
as the figure below.
Every time a tunnel connection is established, a tunnel ID and a session ID are created. In a Router,
3.6 Services
oE server to specify account and IP address to users in LAN and
the ID values of different tunnels are different. A tunnel can create different ID values when it is
reconnected.
3.6.1 PPPoE Server
The Router can be configured as a PPP
thus you can control the dial-up of users for a high efficiency in network management.
