-8-
2.3.2 Rear Panel

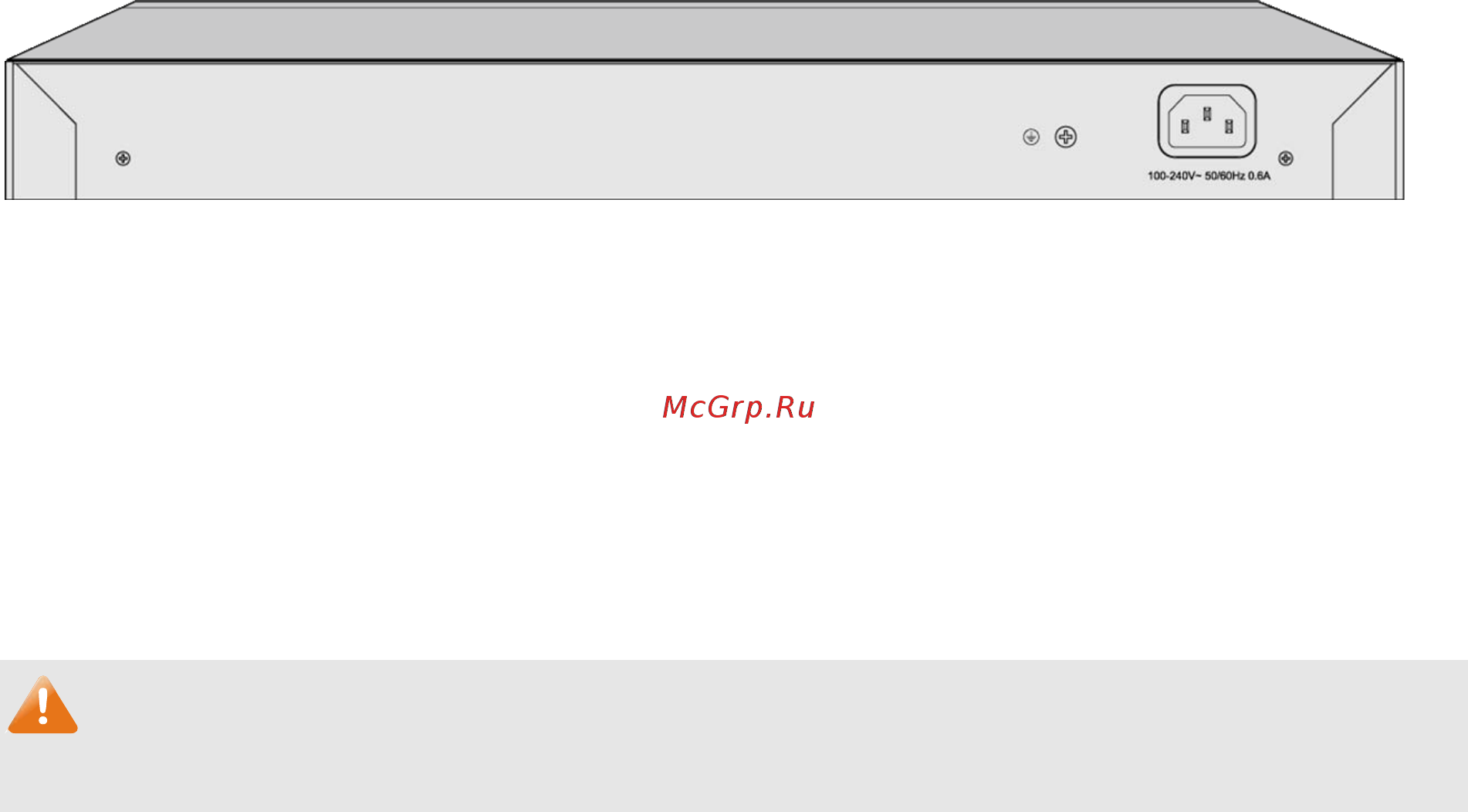

The rear panel of TL-ER6120 is shown as the following figure.
z
Power Socket
Connect the female connector of the power cord to this power socket, and the male connector to the AC
power outlet. Please make sure the voltage of the power supply meets the requirement of the input
voltage (100-240V~ 50/60Hz).
z
Grounding Terminal
The Router already comes with lightning protection mechanism. You can also ground the Router through
the PE (Protecting Earth) cable of AC cord or with Ground Cable.
Note:
Please use only the power cord provided with this Router.
