-46-
¾ NAT-DMZ
NAT-DMZ:
Enable or disable NAT-DMZ. NAT DMZ is a special service of NAT
application, which can be considered as a default forwarding rule. When
NAT DMZ (Pseudo DMZ) is enabled, all the data initiated by external
network falling short of the current connections or forwarding rules will be
forwarded to the preset NAT DMZ host.
Host IP Address:
Enter the IP address of the host specified as NAT DMZ server.
3.3.1.2 One-to-One NAT
On this page, you can configure the One-to-One NAT.
Choose the menu Advanced→NAT→One-to-One NAT to load the following page.

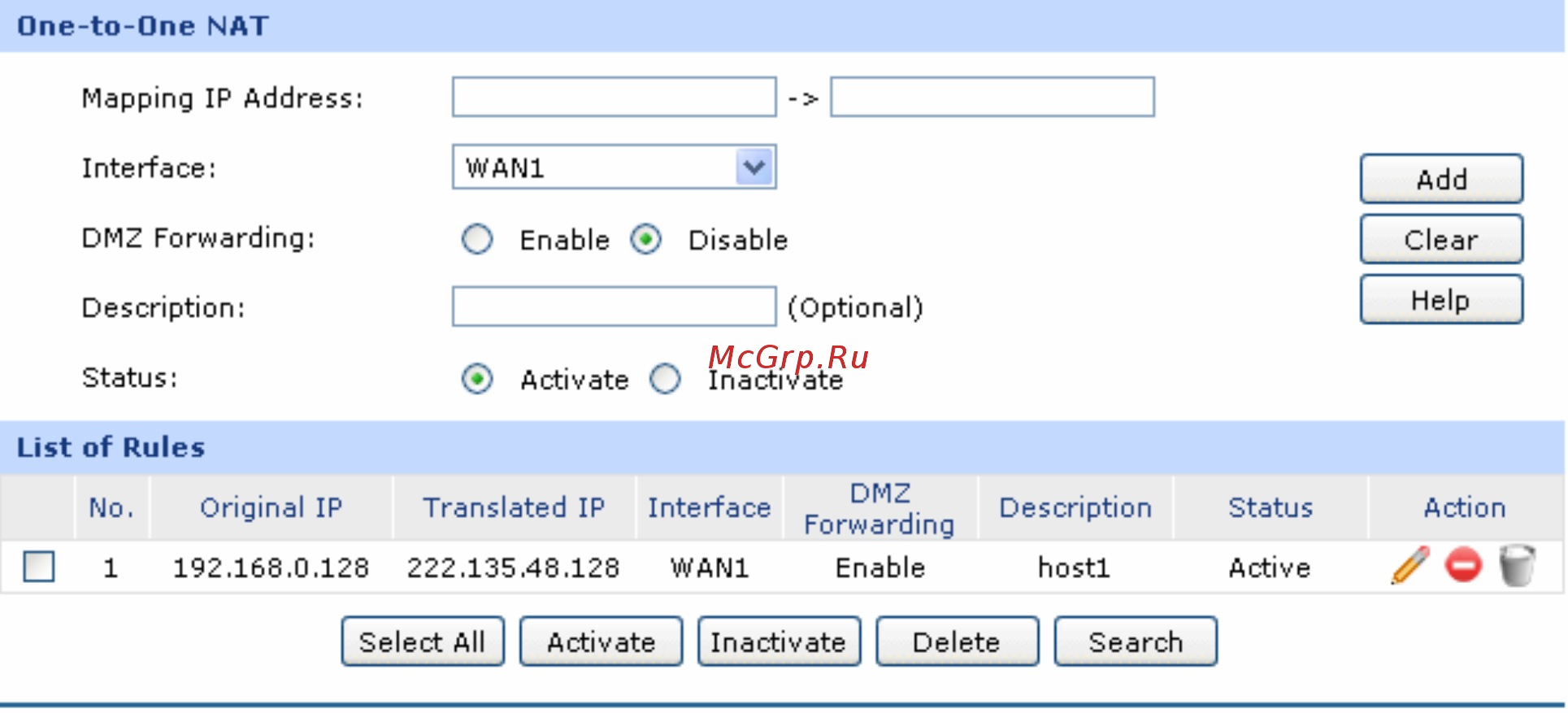

Figure 3-30 One to One NAT
Mapping IP Address: Enter the Original IP Address in the first checkbox and Translated
IP Address in the second checkbox. TL-ER6120 allows mapping from LAN
port to WAN port and DMZ in LAN Mode.
Interface: Select an interface for forwarding data packets.
DMZ Forwarding: Enable or disable DMZ Forwarding. The packets transmitted to the
Translated IP Address will be forwarded to the host of Original IP if DMZ
Forwarding is enabled.
Description: Give a description for the entry.
Status: Activate or inactivate the entry.
¾ List of Rules
In this table, you can view the information of the entries and edit them by the Action buttons.
