TL-R460 Cable/DSL Router User Guide

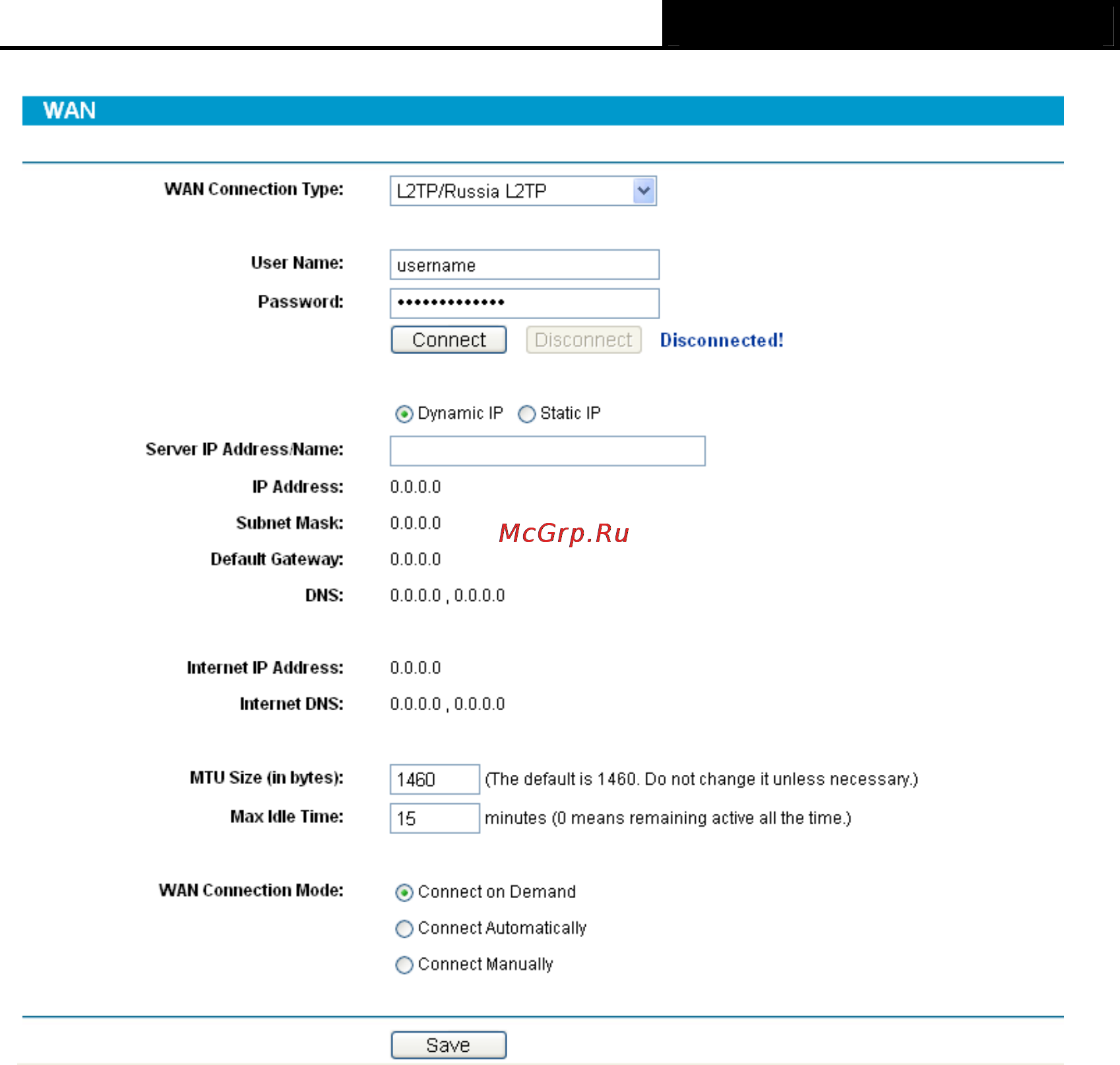

Figure 4-11

¾ User Name & Password - Enter the User Name and Password provided by your

ISP. These fields are case-sensitive.

¾ Connect & Disconnect - Click the button, you can handle the on-line connection

or disconnection.

¾ Dynamic IP & Static IP - Select the type of IP address under your ISP’s

introduction (We select Dynamic IP for example as shown in Figure 4-11).

¾ Server IP Address/Name - Please type the correct Server IP Address/Name which

your ISP provided.

¾ MTU Size (in bytes) - The default value is 1460, which is usually fine. For some

ISPs, you need modify the MTU. This should not be done unless you are sure it is

necessary for your ISP.

)

Note:

Please refer to 3 PPPoE for the explanations of Connect on Demand, Connect

Automatically, Connect Manually.

8. PPTP/Russia PPTP

If you are provided PPTP/Russia PPTP for ISP connection, your ISP will provides user

name, password and other information for you. Please select “PPTP/Russia PPTP” and
