TL-R460 Cable/DSL Router User Guide
35

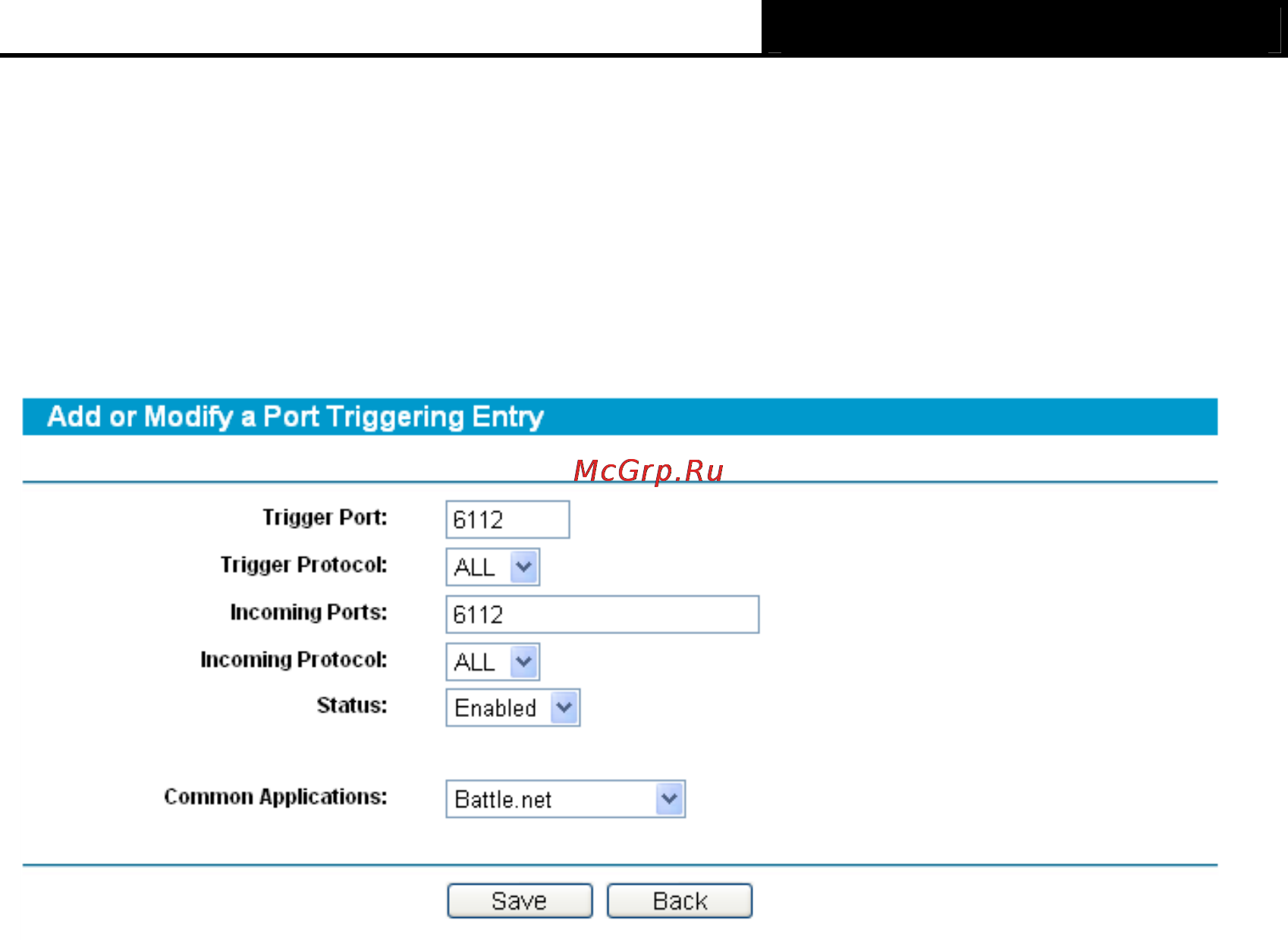

Step 2: Select the application you want from the “Common Applications”, then the
Trigger port and Incoming ports will be added to the corresponding field
automatically, you only need to configure the Trigger protocol and Incoming
Protocol for the entry; If the “Common Applications” does not contain the
applications that you want, please configure these options manually.
Figure 4-25
Step 3: After that, select Enabled to make the entry take effect.
Step 4: Click Save button to save the configuration.
)
Note:
1) If you want to add more than one reserved IP, please go to step 1 to continue.
2) When the trigger connection is released, the according opening ports will be
closed.
3) Each rule allowed to be used only by one host on LAN synchronously. The
trigger connection of other hosts on LAN will be refused.
4) Incoming Port Range cannot overlap each other.
Other configurations for the entries as shown in Figure 4-25:
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries.
Click the Delete All button to delete all the entries.
Click the Previous button to view the information on the previous screen, click the Next
button to view the information on the next screen.
4.5.3 DMZ
Choose menu “Forwarding→DMZ”, you can view and configure DMZ host on the
screen (shown in Figure 4-26).
The DMZ host feature allows one local host to be exposed to the Internet for a
