TL-R460 Cable/DSL Router User Guide

Step 1: Enable the “Firewall” and “IP Address Filtering” on the Firewall screen (show in

Figure 4-29), and then, you should select the Default IP Address Filtering Rule

"Allow the packets not specified by any filtering rules to pass through the

router".

Step 2: Click Add New…/Modify shown in Figure 4-30, you will see a new screen

shown in Figure 4-31.

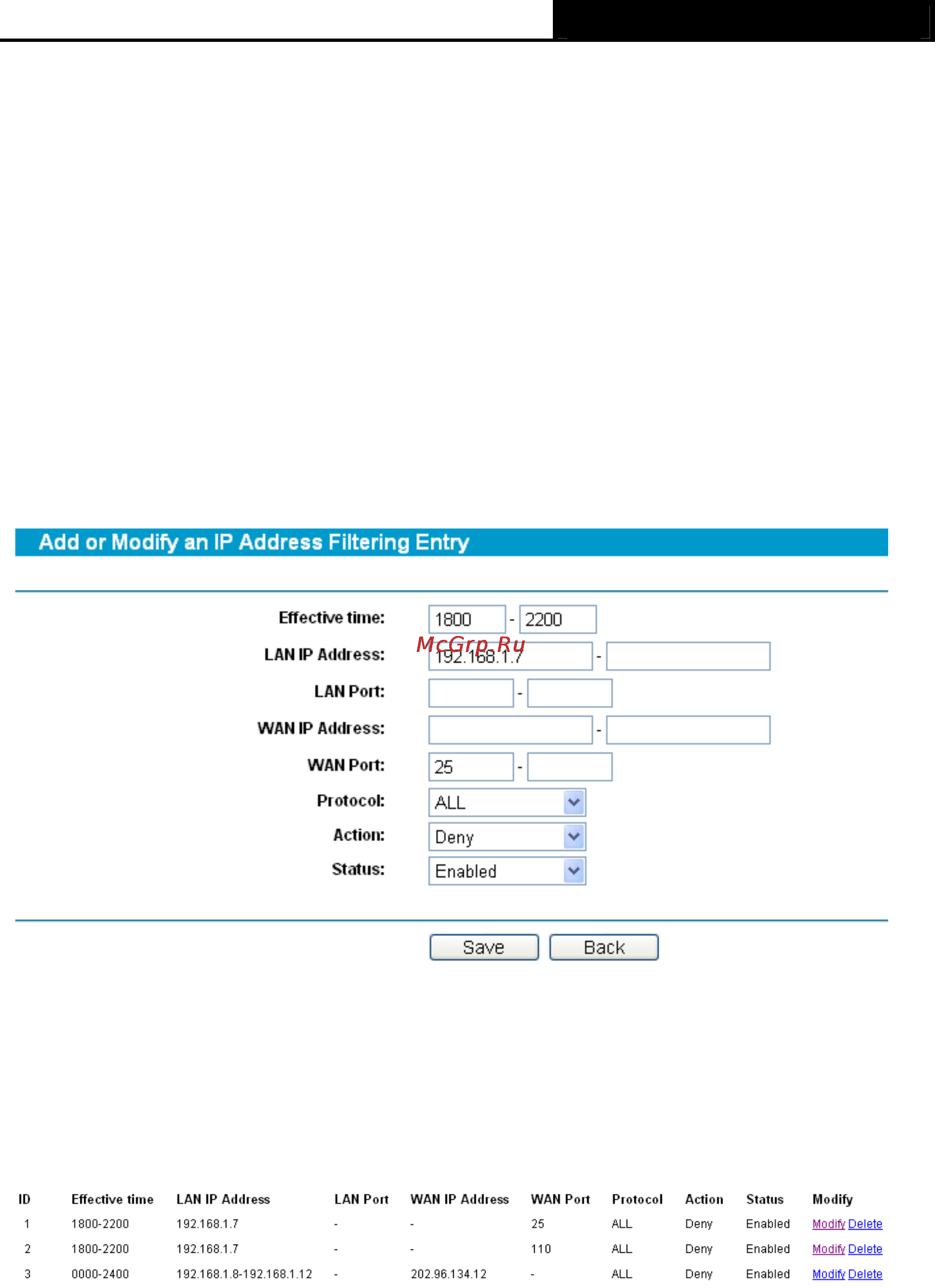

Step 3: Enter the “Effective time” that the rule will take effect as shown in Figure 4-31.

Step 4: Enter the “LAN IP Address”, “LAN Port”, “WAN IP Address” and “WAN Port” in

the corresponding field as shown in Figure 4-31.

Step 5: Select the “Protocol”, “Action” and “Status” for the rule as shown on the next

screen.

Figure 4-31

Step 6: Click the Save button to save this entry.

Step 7: Go to Step 2 to complete the other rules continually.

After you finish the configurations, you will see the rules in the table below:

Figure 4-32

)

Note:

Before adding an IP Address Filtering entry, you should enable the Firewall and the IP

Address Filtering function first (shown in Figure 4-29).

Other configurations for the entries as shown in Figure 4-30:

Click the Delete button to delete the entry.
