TL-R460 Cable/DSL Router User Guide

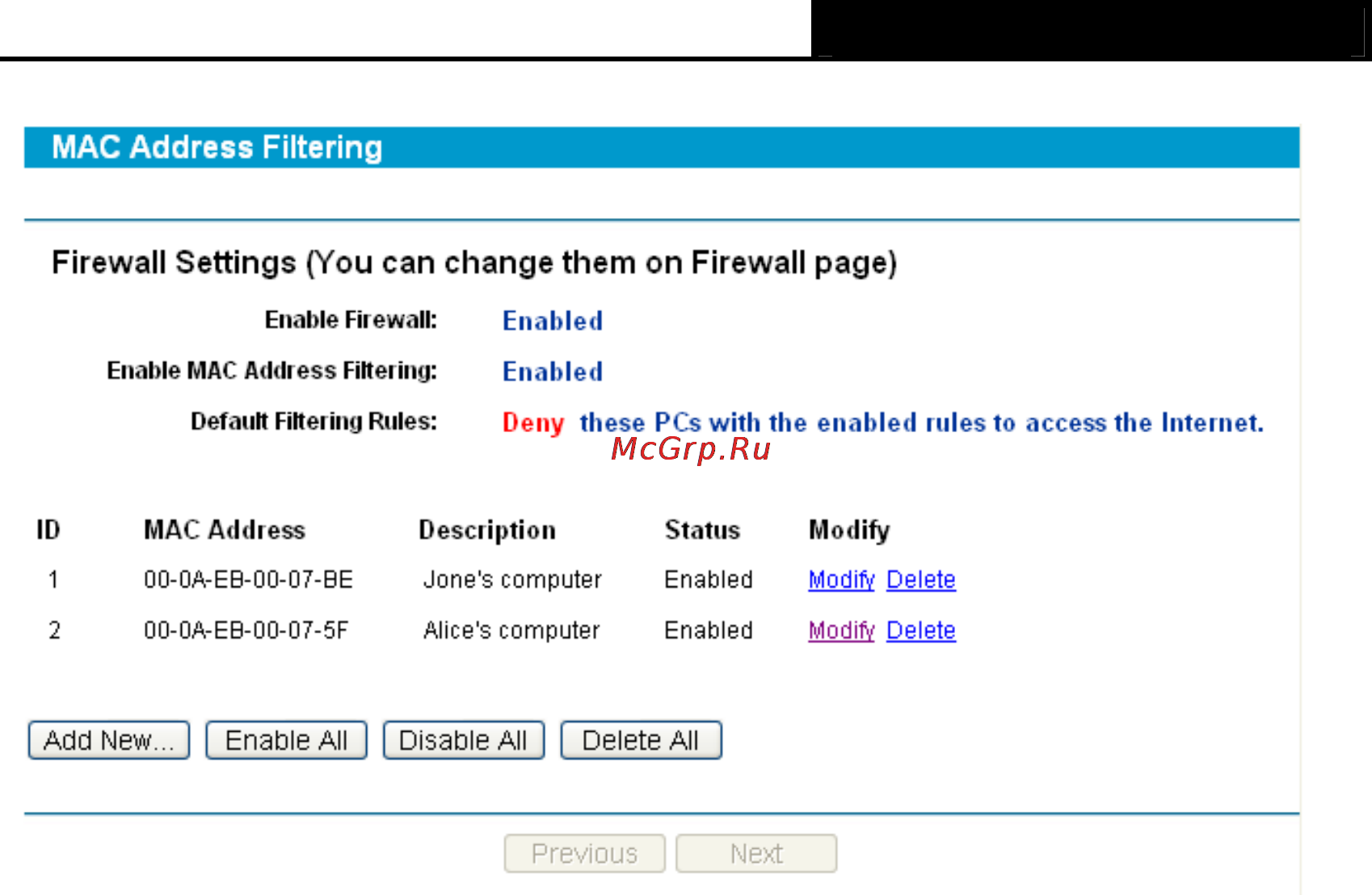

Figure 4-36

¾ MAC Address - .This is the PC’S MAC address which is controlled by the rule, its

format of is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example:

00-0E-AE-B0-00-0B.

¾ Description - This is the description about the PC, Fox example: John’s PC.

¾ Status - This field displays the status, Enabled means the rule is effective,

Disabled means the rule is ineffective.

To add or modify a Domain Filtering entry:

Fox example: If you want to block the PCs with MAC addresses 00-0A-EB-00-07-BE

and 00-0A-EB-00-07-5F to access the Internet, you can configure as follows.

Step 1: Enable the “Firewall” and “MAC Address Filtering” on the Firewall screen (show

in Figure 4-29). And then specify the Default MAC Address Filtering Rule "Deny

these PCs with enabled rules to access the Internet".

Step 2: Click Add New…/Modify shown in Figure 4-36, you will see a new screen

shown in Figure 4-37.

Step 3: Enter the appropriate MAC address and descriptions, then select the status as

shown in Figure 4-37.
