725Ex
Calibration Manual
20
Lower Display 4-Wire Resistance Measurement Tests
1. Press F on the UUT until Ω appears on the lower display. If necessary, use M to
get to the measure mode, and use X to get to the 4W mode. (MEASURE should
also appear on the lower display).
2. Set the 5520A to 2-wire output with 2-wire compensation off.
3. Make the connections shown in Figure 8.
4. Set the 5520A to source the resistance values in Table 10 and verify that the UUT
resistance readings are within the limits shown.
5. Press STBY on the 5520A.
aal09f.eps

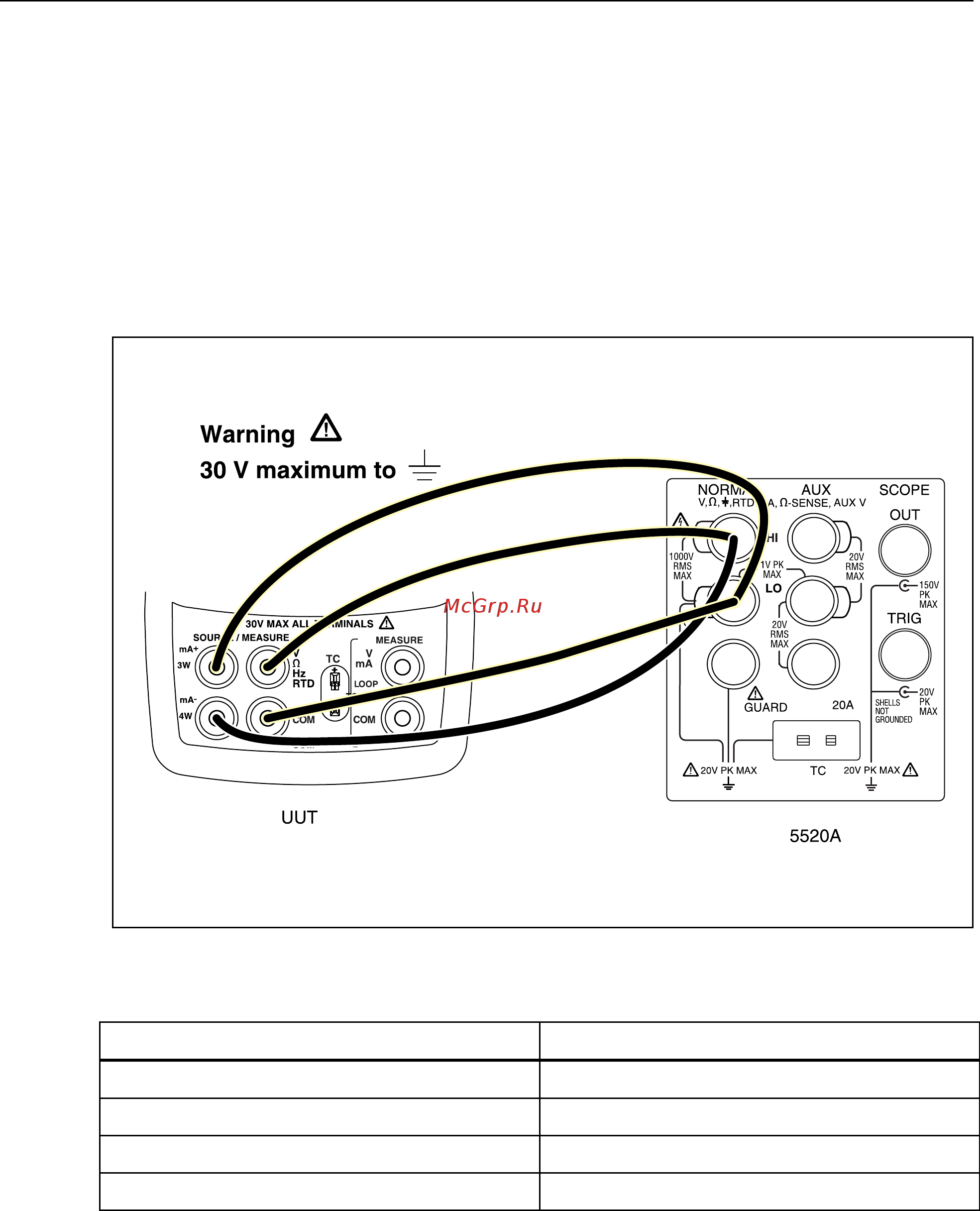

Figure 8. Lower Display 4-Wire Resistance Test Connections
Table 10. Lower Display 4-Wire Resistance Readings
5520A Outputs UUT Readings
15.00 Ω 14.90 Ω to 15.10 Ω
300.00 Ω 299.90 Ω to 300.10 Ω
1500.0 Ω 1499.5 Ω to 1500.5 Ω
3000.0 Ω 2999.0 Ω to 3001.0 Ω
