Multifunction Process Calibrator
Performance Tests
25
Lower Display mA Source Tests
1. Press M on the UUT until SOURCE appears on the lower display; then press V
until mA appears on the lower display. If necessary, press M until SOURCE
appears on the lower display.
2. Set the HP 3458A to measure dc current.
3. Connect the UUT and the HP 3458A as shown in Figure 11.
4. Use the arrow keys on the UUT to set the UUT to the currents in Table 14 and verify
that the HP 3458A readings are within the limits shown.
aal12f.eps

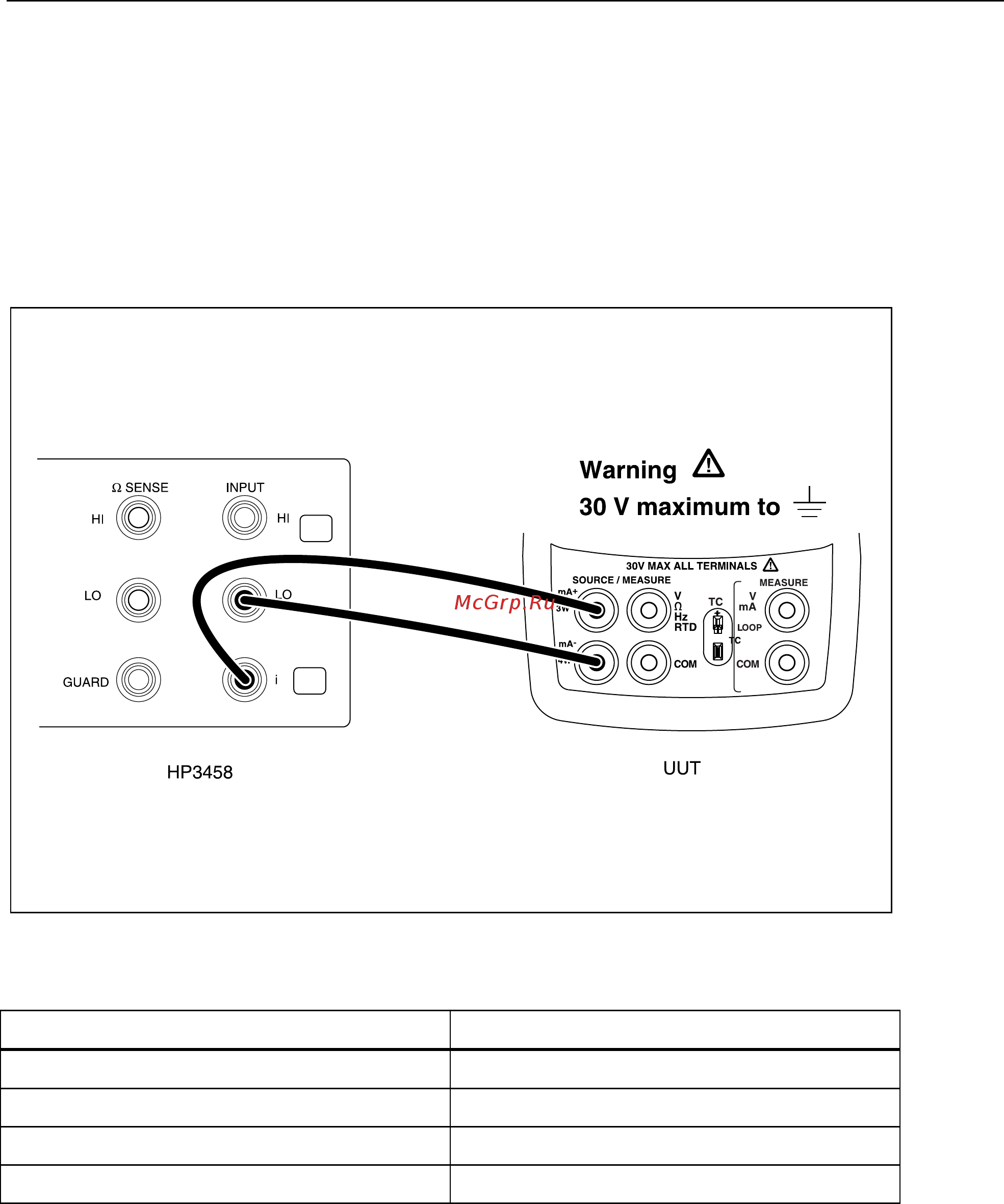

Figure 11. Lower Display mA Source Connections
Table 14. Lower Display mA Source Readings
UUT Outputs HP 3458A Readings
4.000 mA 3.9972 mA to 4.0028 mA
12.000 mA 11.9956 mA to 12.0044 mA
20.000 mA 19.9940 mA to 20.0060 mA
24.000 mA 23.9932 mA to 24.0068 mA
