Fluke 729 [22/46] V loop power performance check

729/729 FC

Calibration Manual

24V Loop Power Performance Check

To verify the 24V loop power function, see Figure 5:

1. Connect the Product red banana jack (V mA) to the 8508A HI VOLTS INPUT.

2. Connect the Product black banana jack (COM) to the 8508A LO VOLTS

INPUT.

3. Push  to get Measure Current in the lower display.

4. Move the cursor to second row of the display and highlight Measure Current.

5. Push  to enable loop power.

6. The reading of 8508A should be between 26 V and 30 V. If it is not, repair

may be necessary. See Contact Fluke.

7. Push  to disable loop power.

ien004.eps

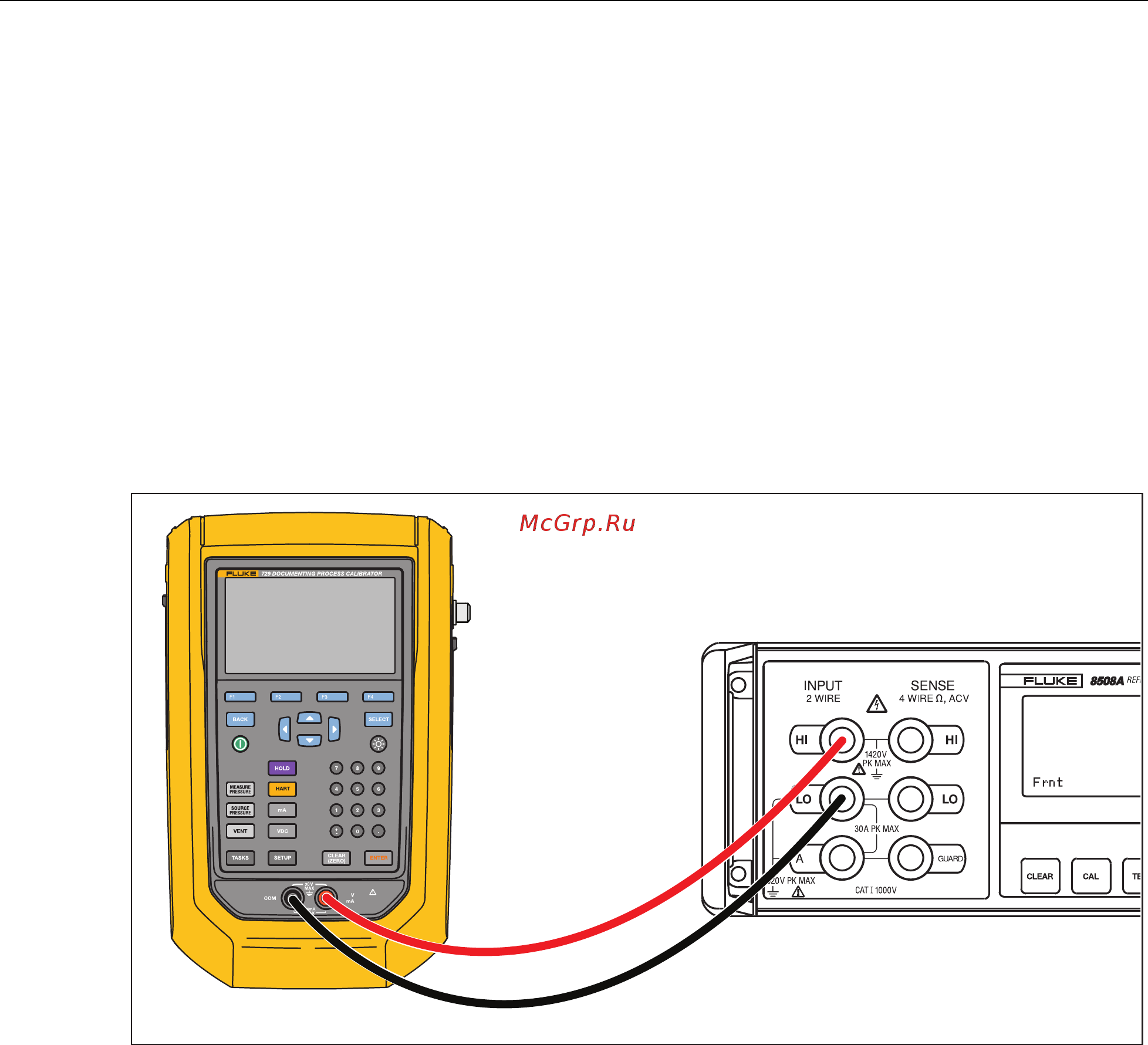

Figure 5. 24V Loop Power Verification Connections
