DES-3550 Fast Ethernet Layer 2 Switch
To add a new Access Rule, click the Add button above the Access Rule Table to view the Access Rule Configuration menu.

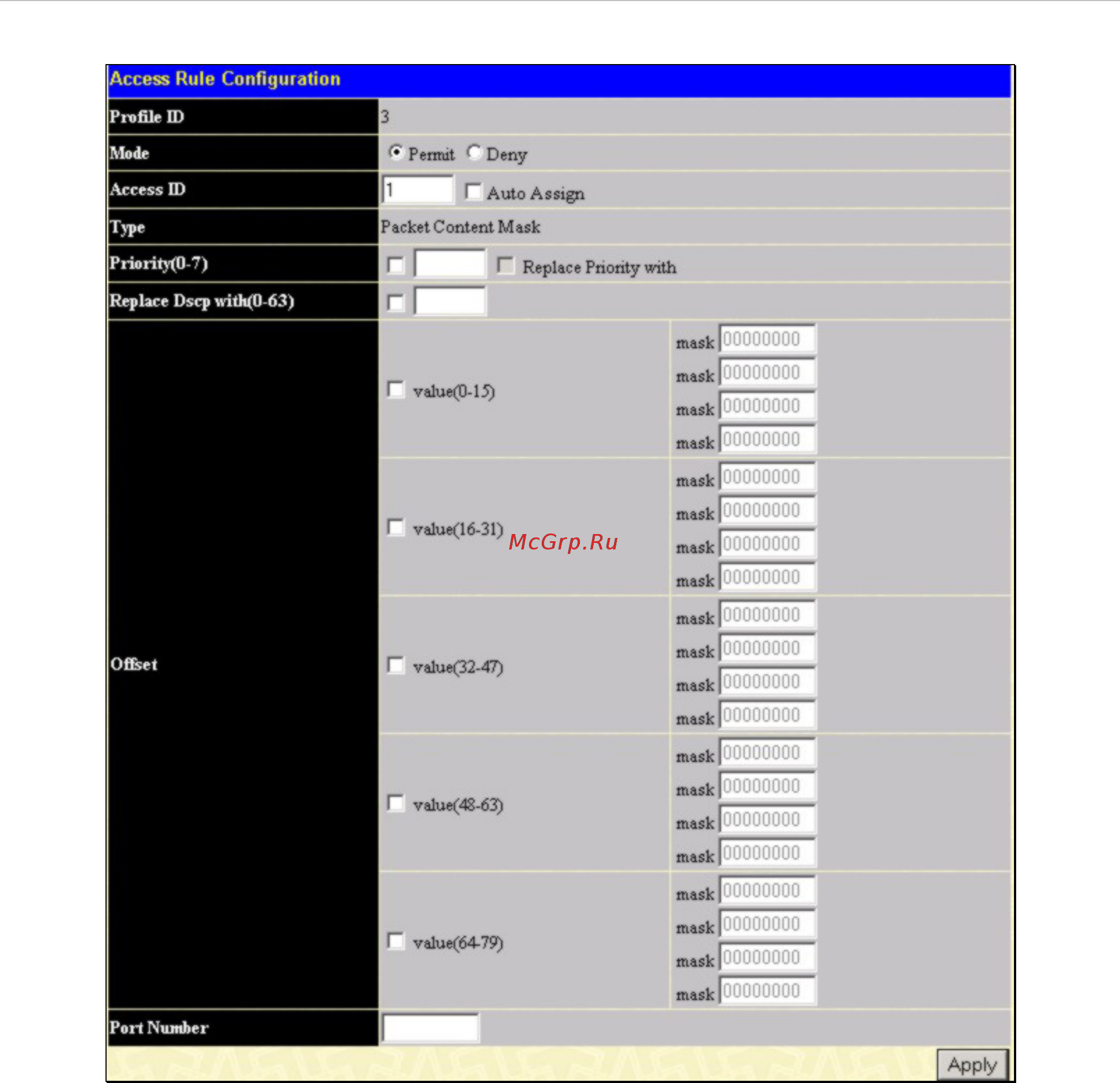

Figure 6- 64. Access Rule Configuration window (Packet Content Mask)
93
