DES-3550 Fast Ethernet Layer 2 Switch
VLAN Status
This allows the VLAN status for each of the Switch's ports to be viewed by VLAN. This window displays the ports on the
Switch that are currently Egress or Tag ports. To view the following table, open the Monitoring folder and click the
VLAN Status link.

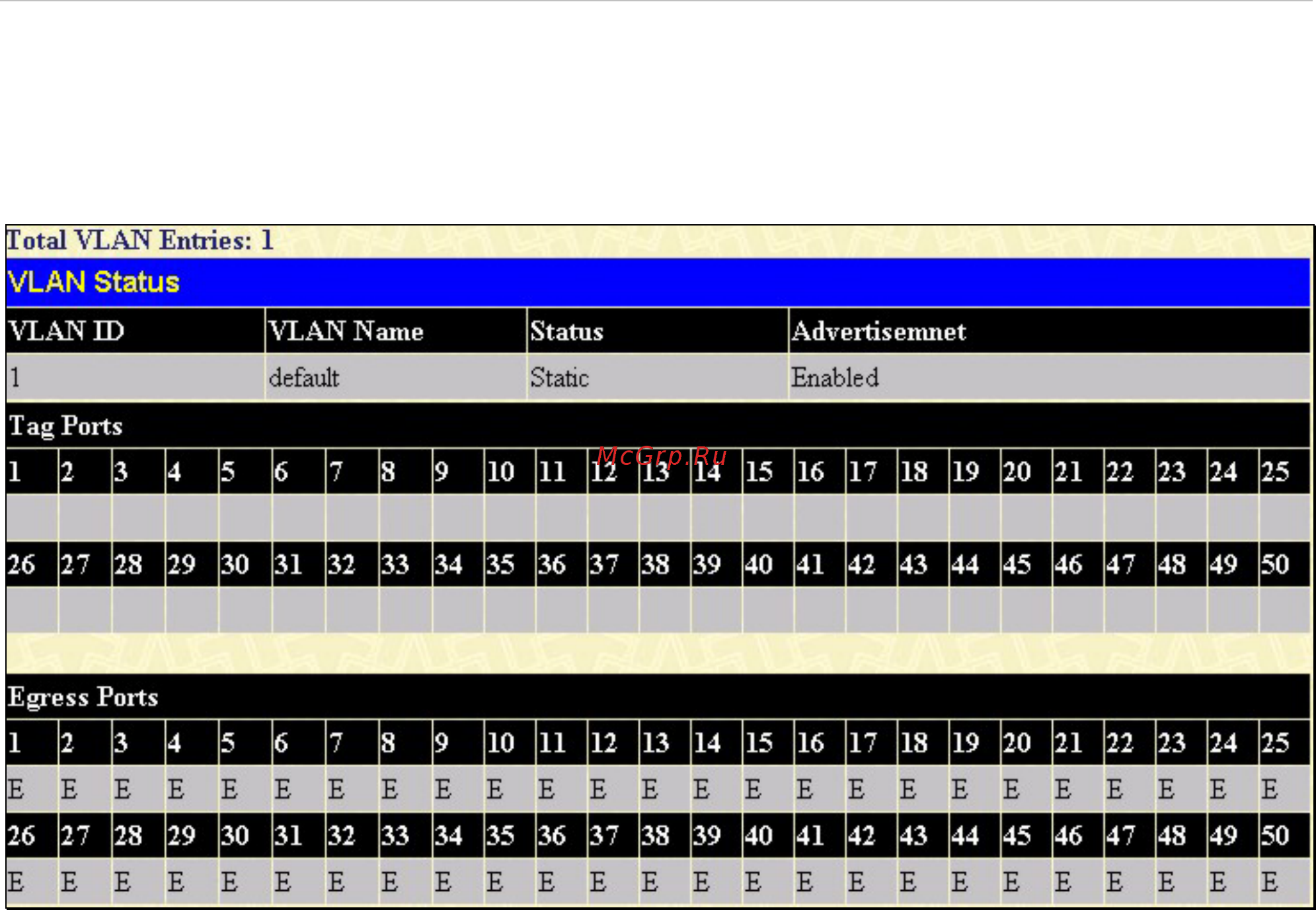

Figure 8- 19. VLAN Status window
168
