PAE System Control

Existing 802.1x port settings are displayed and can be configured using the windows below.

Port Capability

Click Port Access Entity > PAE System Control > Port Capability to view the following window:

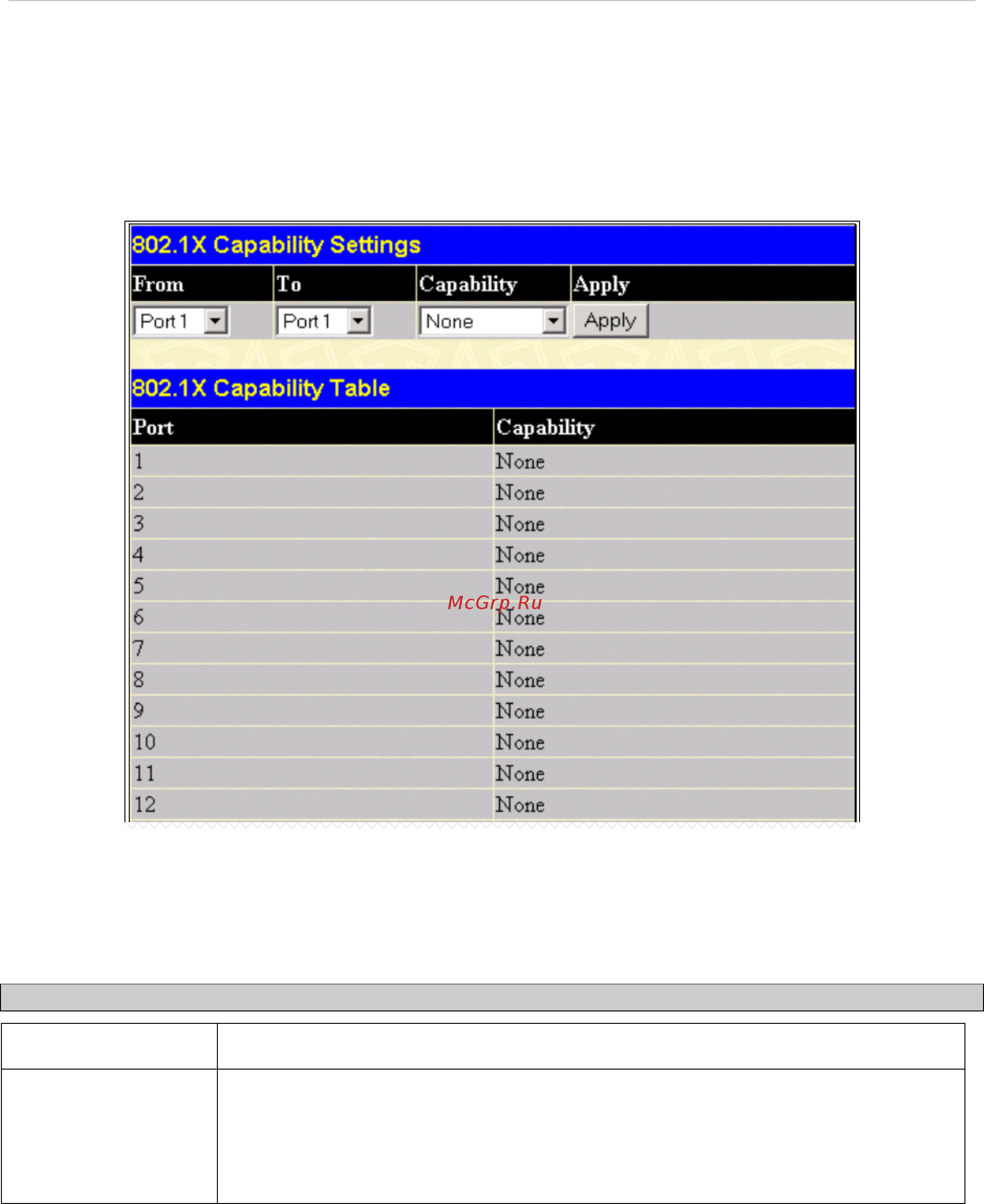

Figure 6- 75. 802.1x Capability Settings window

To set up the Switch's 802.1x port-based authentication, select which ports are to be configured in the From and To fields.

Next, enable the ports by selecting Authenticator from the drop-down menu under Capability. Click Apply to let your change

take effect.

Configure the following 802.1x capability settings:

Parameter Description

From and To

Ports being configured for 802.1x settings.

Capability

Two role choices can be selected:

Authenticator - A user must pass the authentication process to gain access to the

network.

None - The port is not controlled by the 802.1x functions.
