DES-3550 Fast Ethernet Layer 2 Switch

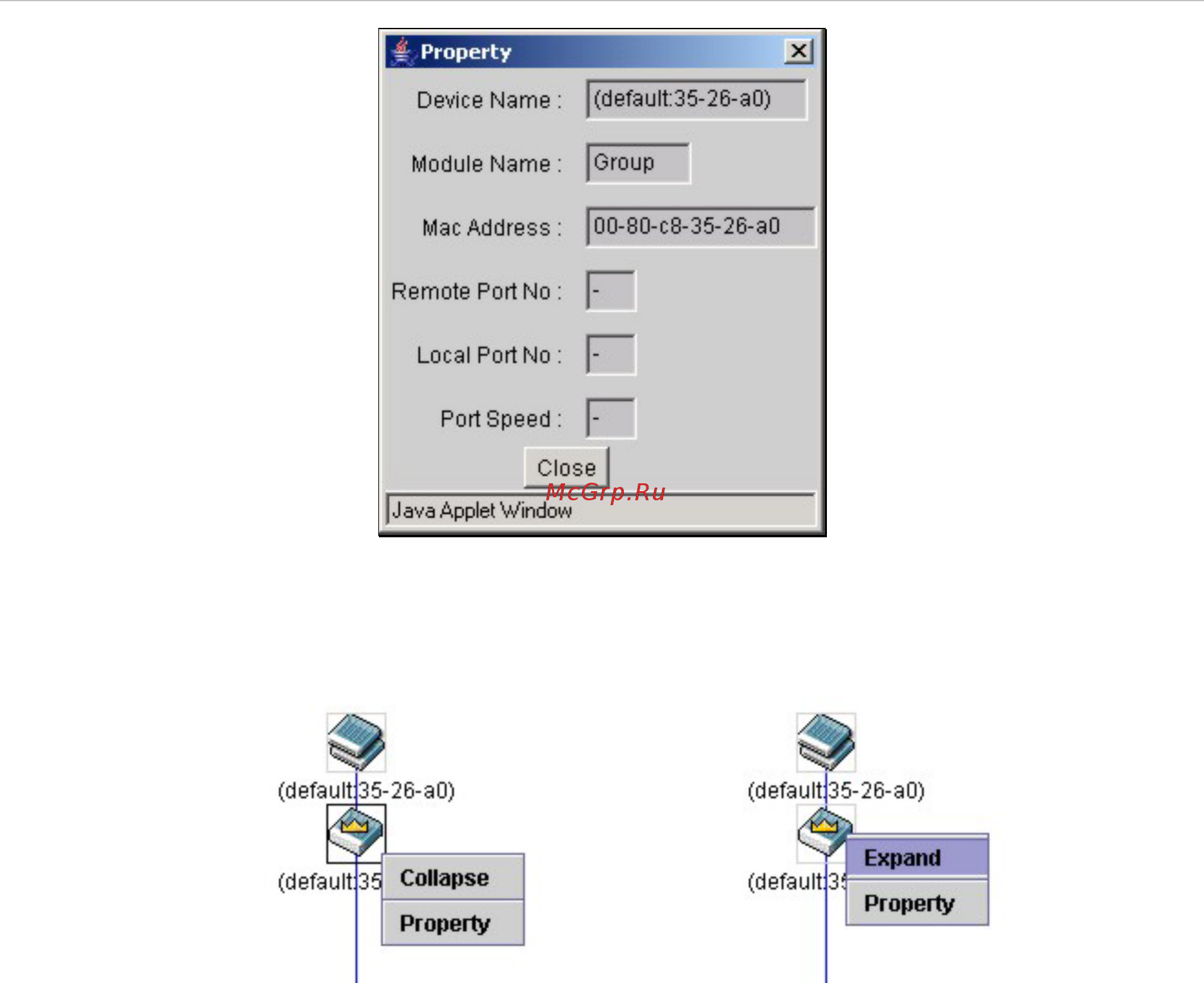

Figure 10- 9. Property window
Commander Switch Icon
Figure 10- 10. Right-Clicking a Commander Icon
The following options may appear for the user to configure:
− Collapse - to collapse the group that will be represented by a single icon.
− Expand - to expand the SIM group, in detail.
− Property - to pop up a window to display the group information.
186
