D-Link DES-3552 [25/260] Section 3
![D-Link DES-3828 [25/260] Section 3](/views2/1043702/page25/bg19.png)
DES-3550 Fast Ethernet Layer 2 Switch
Section 3
Connecting The Switch
Switch to End Node
Switch to Hub or Switch
Connecting To Network Backbone or Server
NOTE: All 48 high-performance NWay Ethernet ports can support both
MDI-II and MDI-X connections.
Switch to End Node
End nodes include PCs outfitted with a 10, 100 or 1000 Mbps RJ45 Ethernet/Fast Ethernet Network Interface Card (NIC)
and most routers.
An end node can be connected to the Switch via a twisted-pair Category 3, 4, or 5 UTP/STP cable. The end node should be
connected to any of the ports of the Switch.

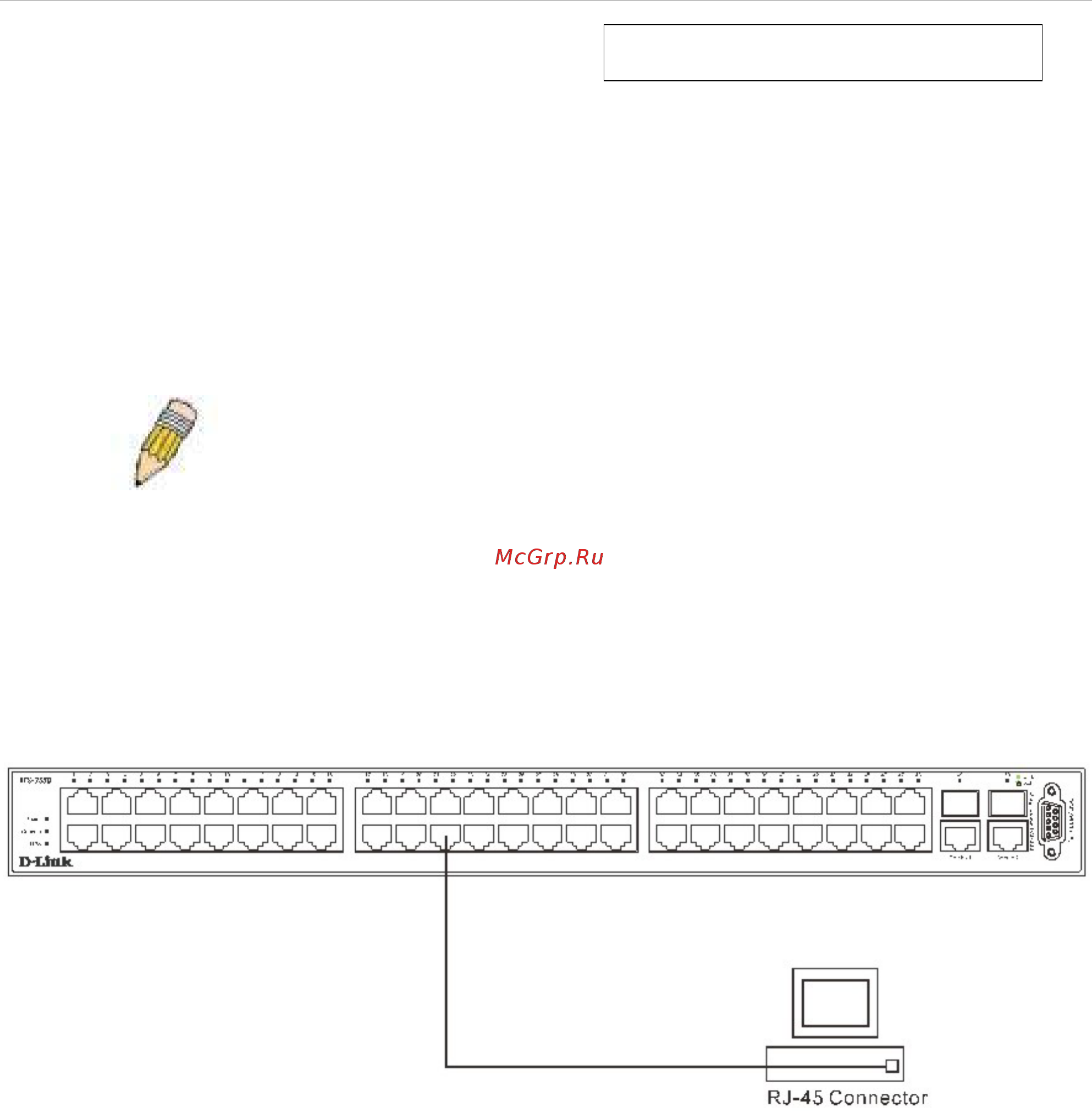

Figure 3- 1. Switch connected to an end node
The Link/Act LEDs for each UTP port will light green or amber when the link is valid. A blinking LED indicates packet
activity on that port.
11
