DES-3550 Fast Ethernet Layer 2 Switch
IP-MAC Binding Blocked
To view unauthorized devices that have been blocked by IP-MAC binding restrictions open the IP-MAC Binding Blocked
window show below. Click IP-MAC Binding Blocked in the IP-MAC Blocked folder on the Configuration menu to open
the IP-MAC Binding Blocked window.

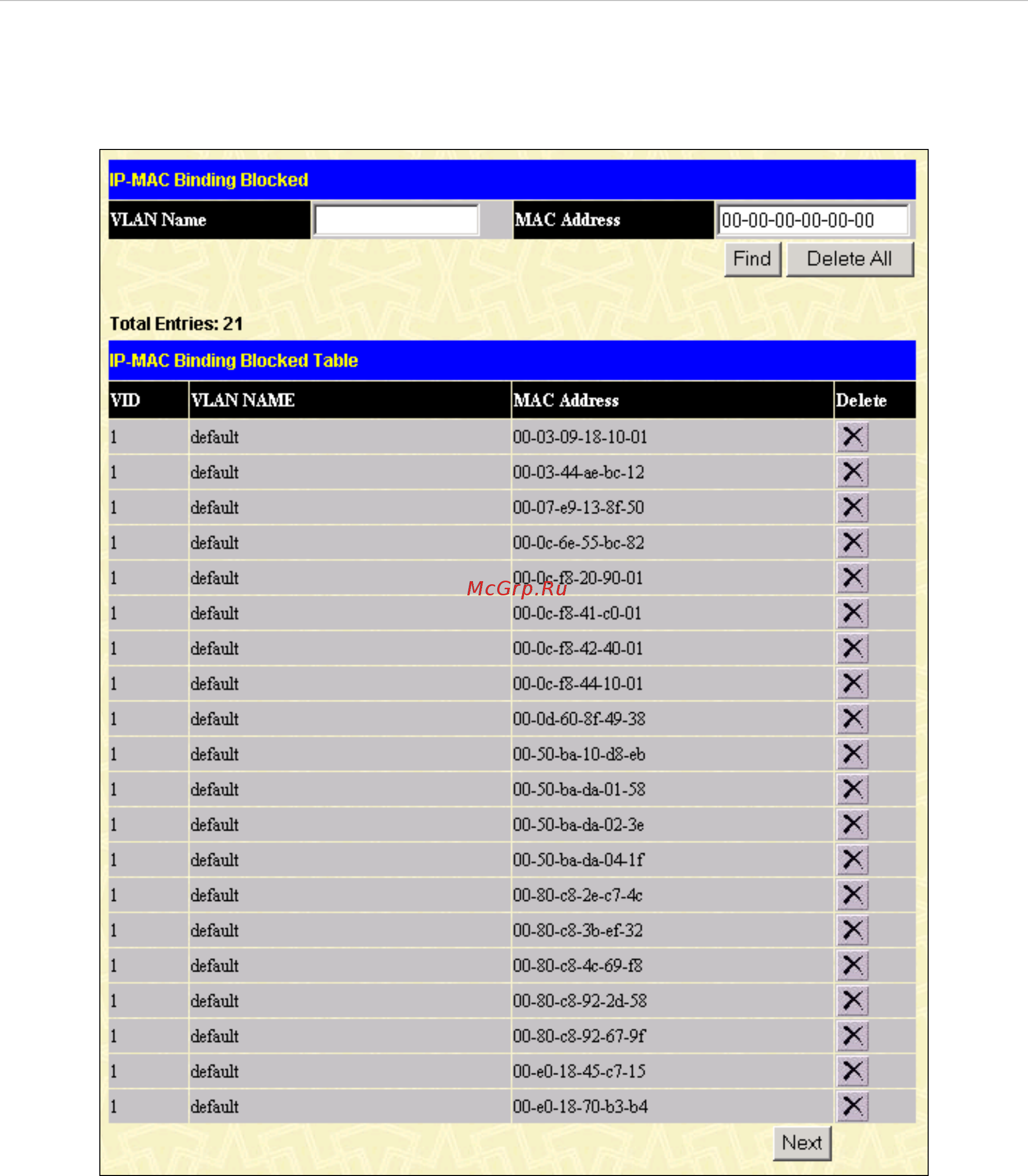

Figure 6- 84. IP-MAC Binding Blocked window
To find an unauthorized device that has been blocked by the IP-MAC binding restrictions, enter the VLAN name and MAC
Address in the appropriate fields and click Find. To delete an entry click the delete button next to the entry’s MAC address.
To delete all the entries in the IP-MAC Binding Blocked Table click Delete All.
111
