DES-3550 Fast Ethernet Layer 2 Switch
RFC1213 MIB II •
•
•
•
•
•
•
•
•
•
•
•
•
•
RFC1493 Bridge
RFC1757 RMON
RFC1643 Ether-like MIB
RFC2233 Interface MIB
Private MIB
RFC2674 for 802.1p
IEEE 802.1x MIB
RS-232 DCE console port for Switch management
Provides parallel LED display for port status such as link/act, speed, etc.
Ports
Forty-eight (48) high-performance (MDI-X/MDI-II) ports for connecting to end stations, servers, hubs and other
networking devices.
All UTP ports can auto-negotiate between 10Mbps and 100Mbps, half-duplex and full duplex, and feature flow
control.
Two 1000BASE-T Mini-GBIC combo ports for connecting to another switch, server, or network backbone.
RS-232 DCE Diagnostic port (console port) for setting up and managing the Switch via a connection to a console
terminal or PC using a terminal emulation program.
NOTE: For customers interested in D-View, D-Link Corporation's proprietary SNMP
management software, go to the D-Link Website (www.dlink.com.cn) and download the
software and manual.
Front-Panel Components
The front panel of the Switch consists of LED indicators for power and for each 10/100 Mbps twisted-pair ports, and two
1000BASE-T Mini-GBIC ports.

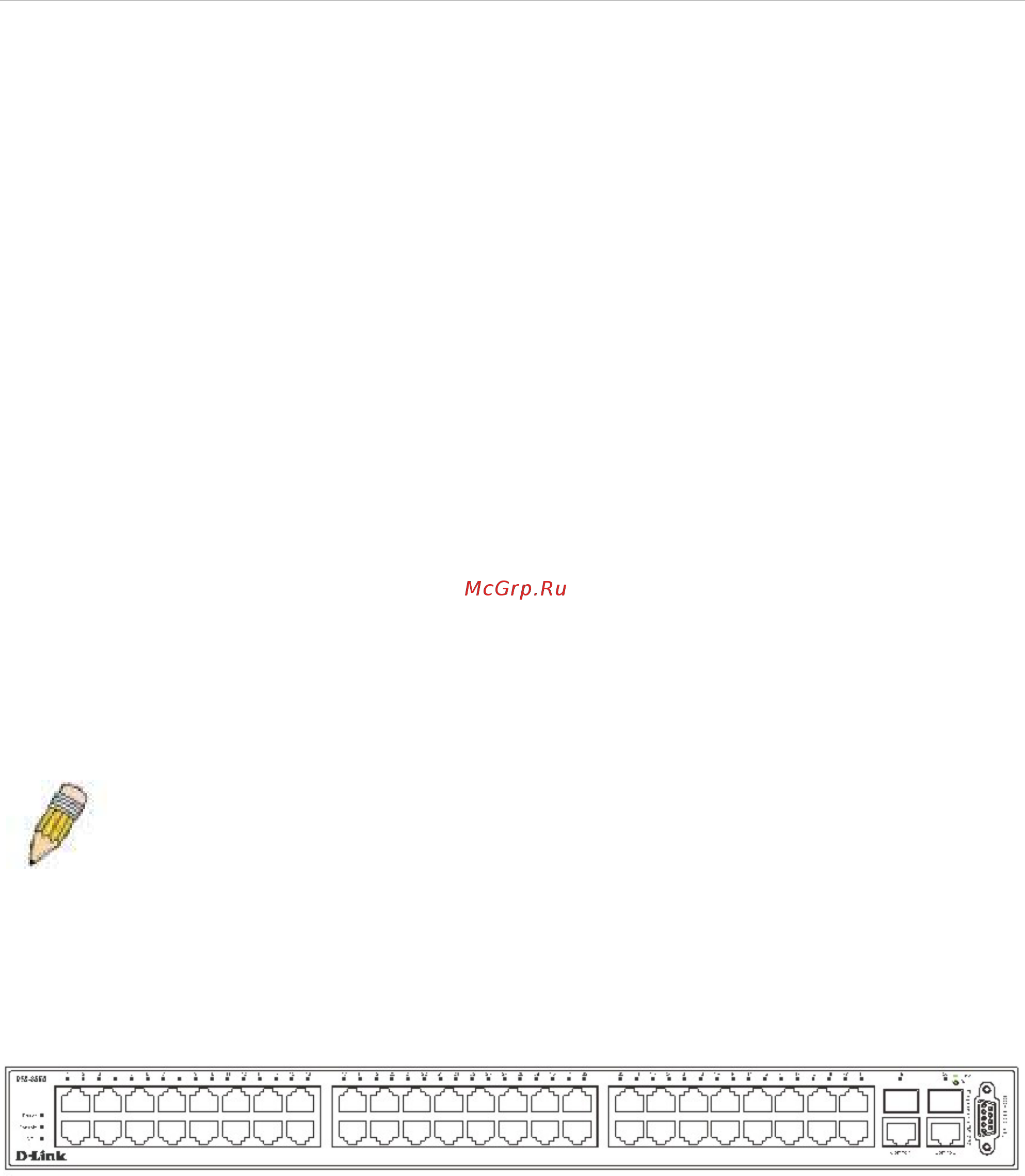

Figure 1- 1. Front Panel View of the DES-3550 as shipped
Comprehensive LED indicators display the status of the Switch and the network.
4
