DES-3550 Fast Ethernet Layer 2 Switch
IP-MAC Binding Table
The window shown below can be used to create IP-MAC binding entries. Click the IP-MAC Binding Table on the IP-MAC
Binding folder on the Configuration menu to view the IP-MAC Binding Setting window. Enter the IP and MAC addresses
of the authorized users in the appropriate fields and click Add. To modify either the IP address or the MAC address of the
binding entry, make the desired changes in the appropriate field and Click Modify. To find an IP-MAC binding entry, enter
the IP and MAC addresses and click Find. To delete an entry click Delete. To clear all the entries from the table click
Delete all.

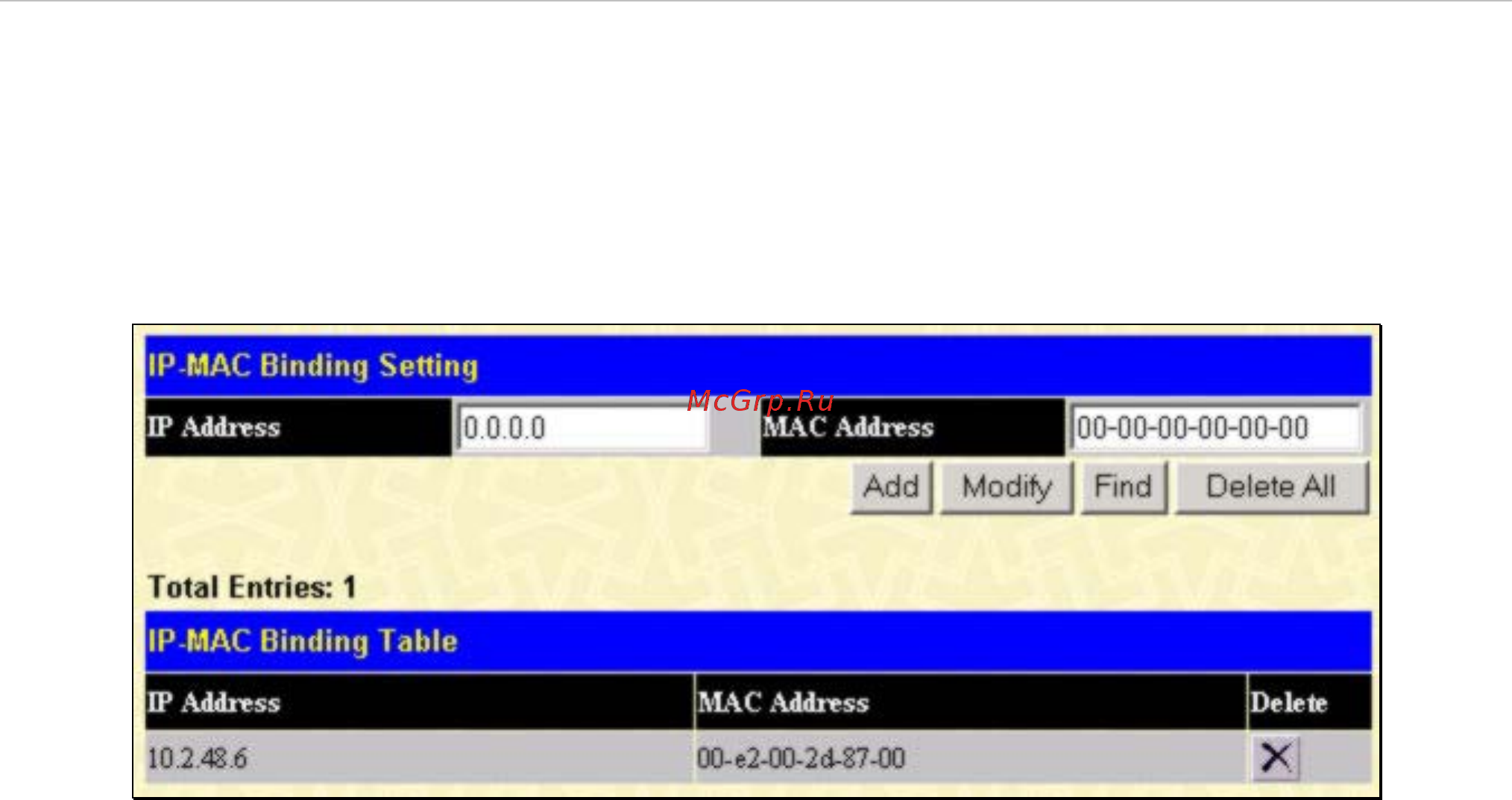

Figure 6- 83. IP-MAC Binding Table window
110
