DES-3550 Fast Ethernet Layer 2 Switch

Parameter Description

Server IP

Enter the IP address of the server from which you wish to download firmware.

File Name

Specify the path and filename of the firmware on the Server.

Type

Specify the purpose of the firmware:

Download: Clicking this radio button will specify a download to the Switch. This will be

the firmware that the Switch will immediately use.

Update: Clicking this radio button will save the firmware to the Switch's memory but

not configure the Switch for this firmware. The Switch may hold two firmware versions

specified as Section 1 and Section 2.

Information about firmware on the Switch can be viewed in the Firmware Management table in the same window. It holds

the following information:

Parameter Description

The user defined Section ID of the firmware on the Switch.

Boot Status

The firmware that is currently being run on the Switch will be identified in this field

with the term "Boot".

Version

The runtime version of the firmware.

Size

The size of the firmware, in bytes.

Date

The date that the firmware was added to the Switch.

From

The IP address of the Server from which the firmware came.

User

The name of the user who downloaded the firmware.

Set Boot

Click the Apply button in this field to set the firmware version to be used upon the

next boot up of the Switch.

Delete

Click the in this column to permanently delete the corresponding firmware from the

Switch.

Download Configuration File

To download a settings file from a TFTP server, click on the TFTP Services folder in the Maintenance folder and then

the Download Configuration File link:

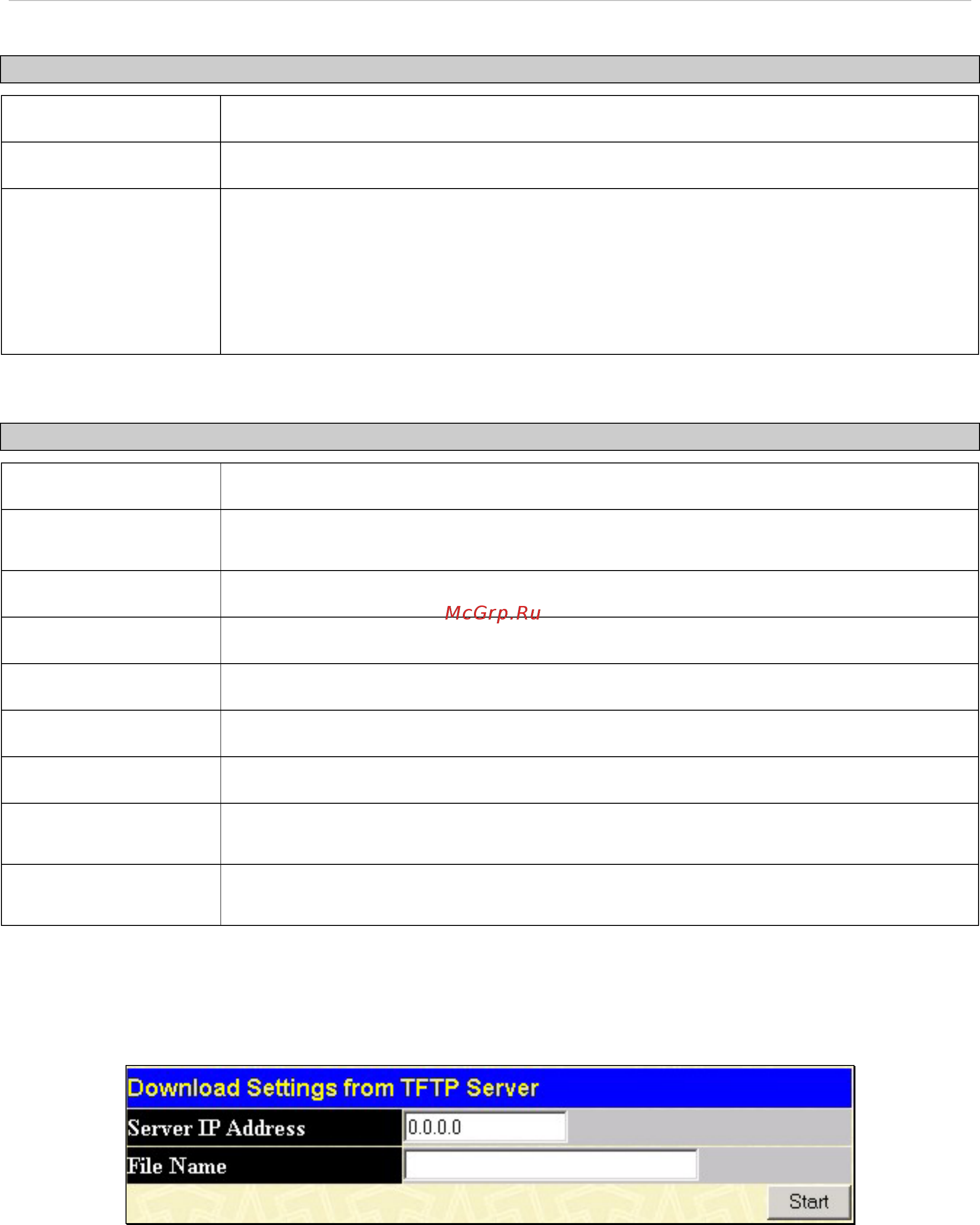

Figure 9- 2. Download Settings from TFTP Server window

Enter the IP address of the TFTP server and specify the location of the switch settings file on the TFTP server.

Click Start to record the IP address of the TFTP server and to initiate the file transfer.
