DES-3550 Fast Ethernet Layer 2 Switch
To view the settings of a previously correctly configured rule, click
in the Access Rule Table to view the following
window:

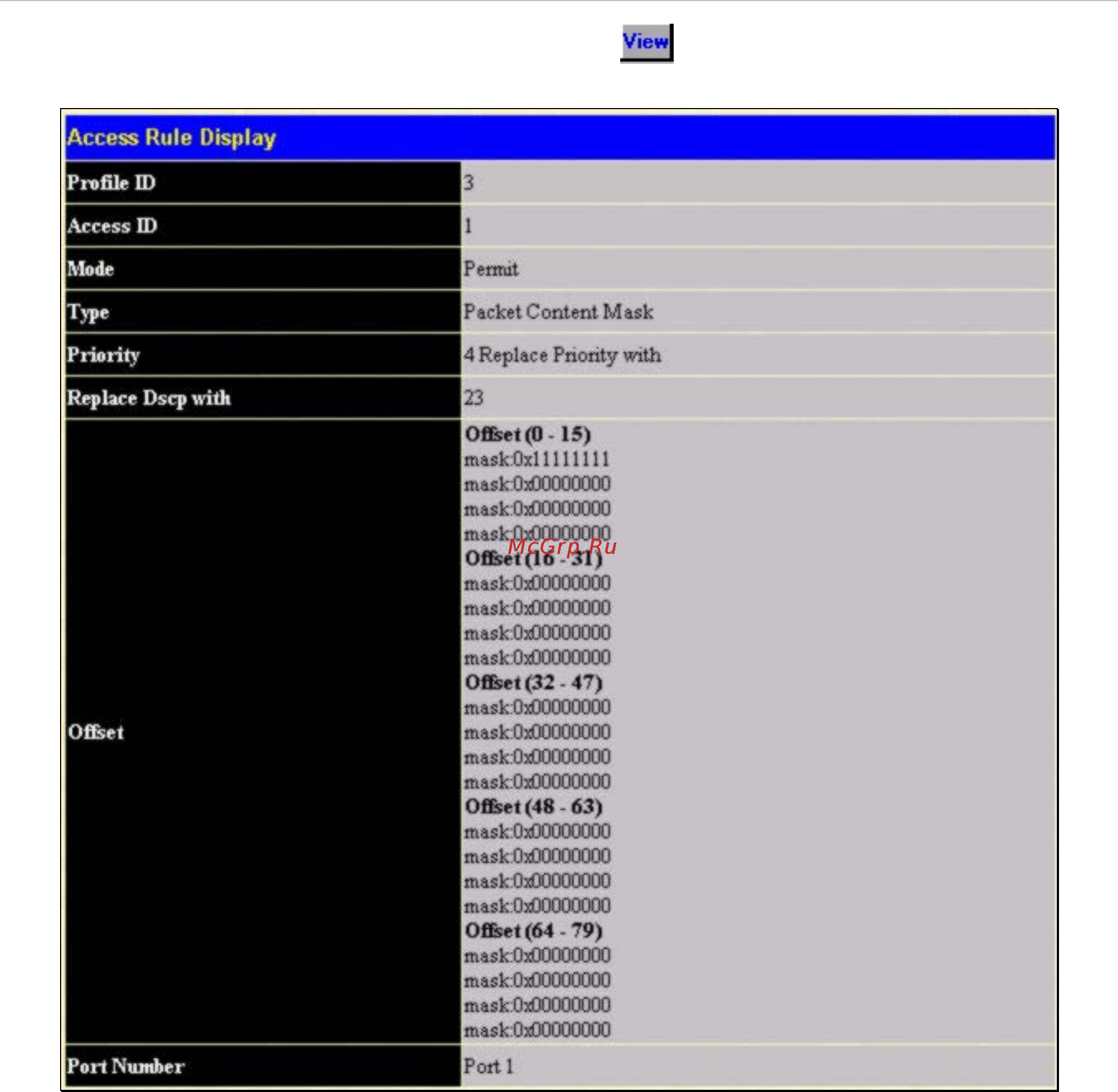

Figure 6- 65. Access Rule Display window (Packet Content)
95
