DES-3550 Fast Ethernet Layer 2 Switch

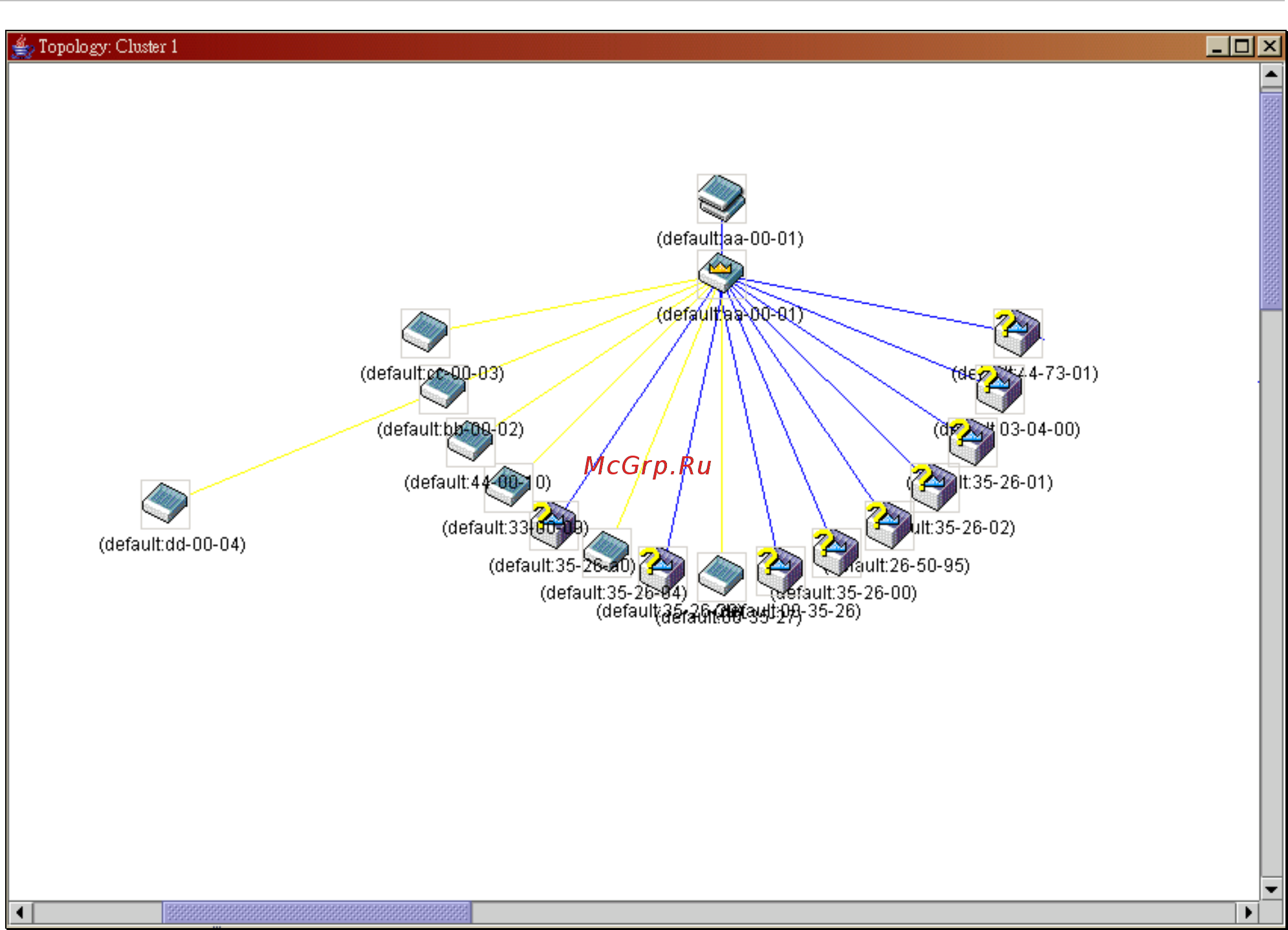

Figure 10- 5. Topology view
This window will display how the devices within the Single IP Management Group are connected to other groups and
devices. Possible icons in this screen are as follows:
