INSTALLATION

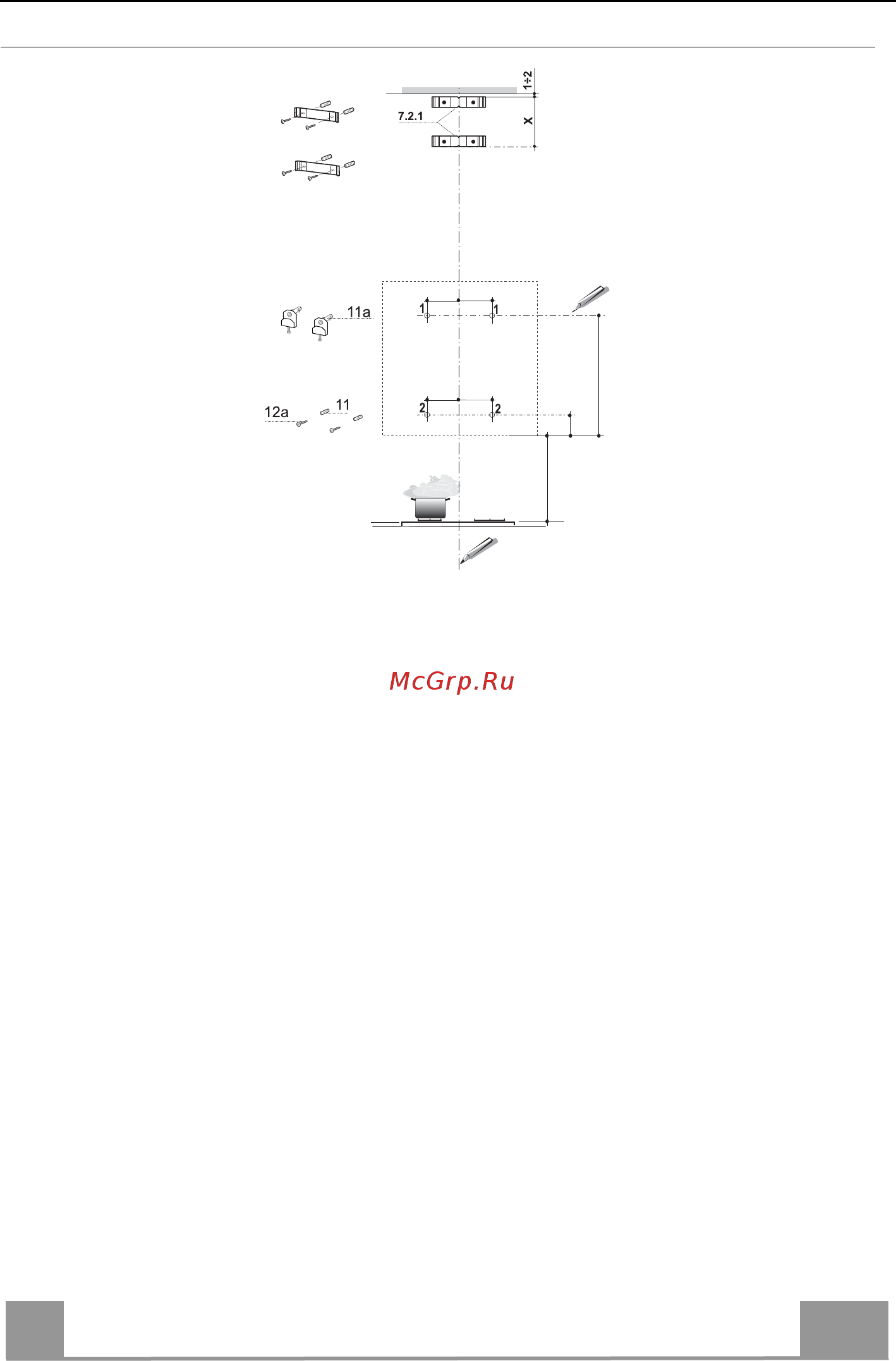

Drilling the Wall and Fixing the Brackets

650

455

240 240

200 200

Draw the following on the Wall:

• a Vertical line up to the ceiling or top surface, at the centre of the area in which the Hood is

to be fitted;

• a Horizontal line: 650 mm min. above the Hob;

• As shown in the drawing, mark a reference point 455 mm above the reference horizontal

line, and at a distance of 240 mm to the right of the vertical reference line.

• Repeat this operation on the other side, checking to ensure it is level.

• Drill the points marked using a ø 12 mm drill bit.

• Insert the wall plugs with screw and bracket 11a into the holes, tighten.

• As shown in the drawing, mark a reference point 75 mm above the reference horizontal line,

and at a distance of 200 mm to the right of the vertical reference line.

• Repeat this operation on the other side, checking to ensure it is level.

• Drill the points marked using a ø 8 mm drill bit.

• Insert the plugs 11 into the holes.

• Rest the Bracket 7.2.1 as indicated, 1-2 mm from the ceiling or surface above the hood, aligning

its centre (grooves) with the vertical reference line.

• Mark the centres of the holes in the bracket.

• Rest the Bracket 7.2.1 as indicated, X mm under the first bracket (X = height of the Upper

chimney provided), aligning its centre (grooves) with the vertical reference line.

• Mark the centres of the holes in the bracket.

• Drill the points marked using a ø 8 mm drill bit.

• Insert the plugs 11 into the holes.

• Fix the brackets using the screws 12a (4.2 x 44.4 ) provided.
