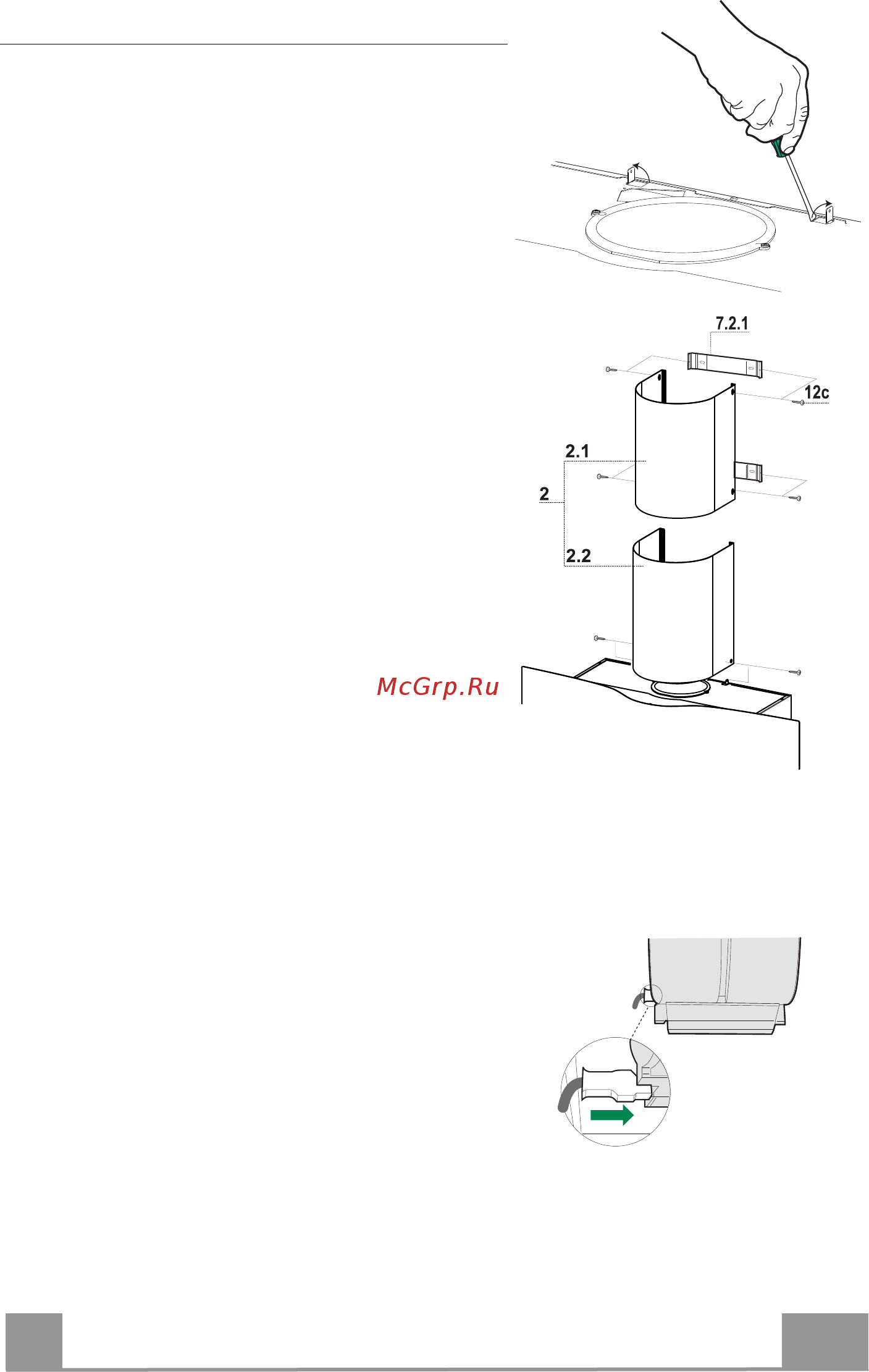

Fitting the Chimney

Lift the 2 tabs formed on the Hood Canopy close to the

air outlet opening.

Upper chimney

• Open the two side pieces out slightly, hook them up

behind the brackets 7.2.1 and bring them back

together again until they are in contact.

• Fix them to the sides of the Brackets using 4 Screws

12c (2.9 x 9.5), provided.

Lower chimney

• Open out the two Chimney side flaps, hook them up

between the upper chimney and the wall and then

close them up again until they touch.

• Fix the lower part to the Hood canopy tabs at the

sides, using 2 screws 12c (2.9 x 9.5) provided.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole

switch having a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Mainte-

nance) being sure that the connector of the feeding

cable is correctly inserted in the socket placed on the

side of the fan.
