xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide

150

After clicking the Sub-Ring Information link, the following window will appear:

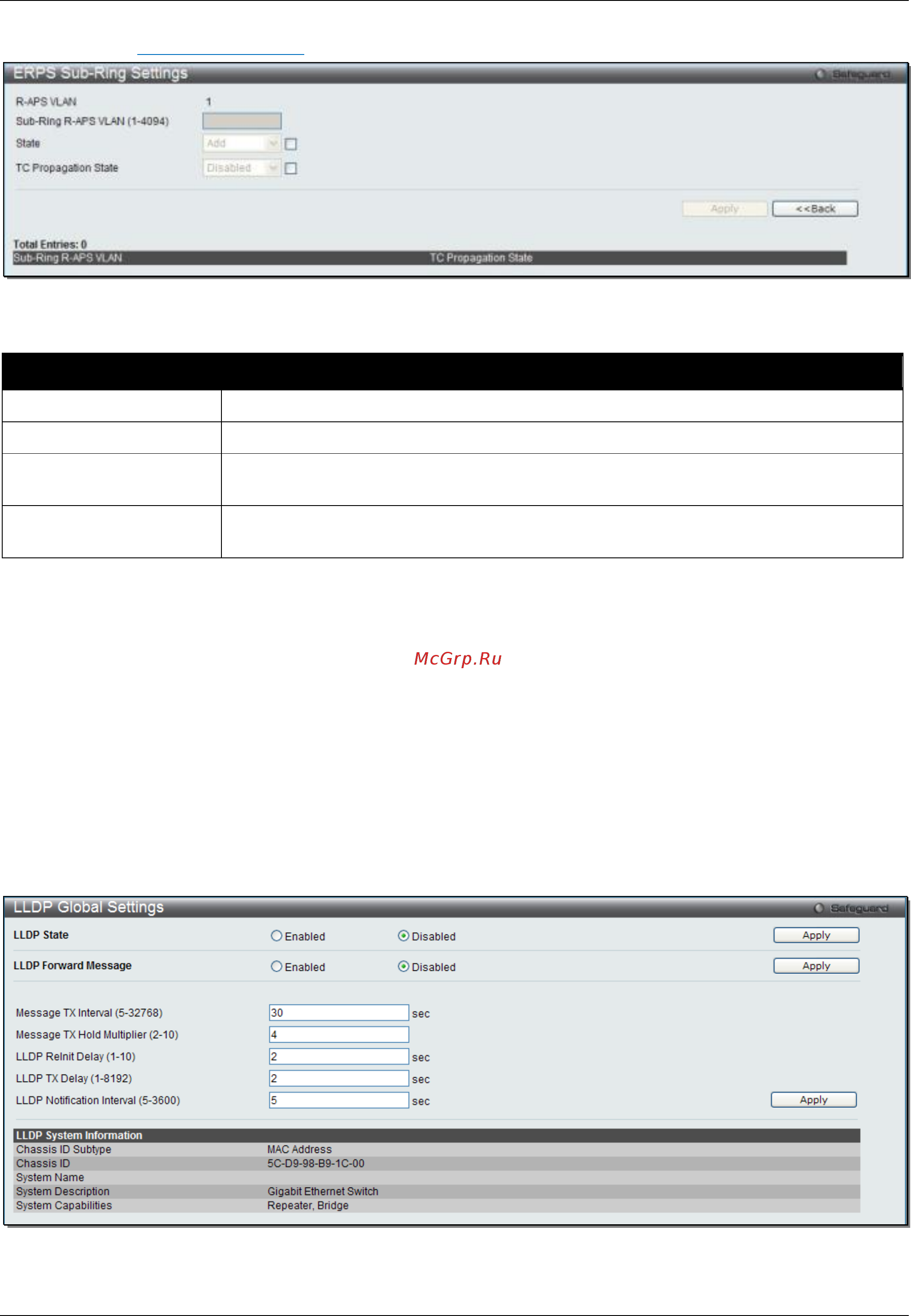

Figure 4-110 ERPS Sub-Ring Settings window

The fields that can be configured are described below:

Parameter Description

R-APS VLAN

Here the R-APS VLAN ID will be displayed.

Sub-Ring R-APS VLAN

Enter the Sub-Ring R-APS VLAN ID used here.

State Specify the ERPS Sub-Ring state here. Options to choose from are Add and

Delete.

TC Propagation State Specify the TC Propagation state here. Options to choose from are Enabled and

Disabled.

Click the Apply button to accept the changes made.

Click the <<Back button to return to the previous window.

LLDP

LLDP Global Settings

This window is used to configure the LLDP global parameters.

To view the following window, click L2 Features > LLDP > LLDP > LLDP Global Settings, as shown below:

Figure 4-111 LLDP Global Settings window

The fields that can be configured are described below:
