xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide

363

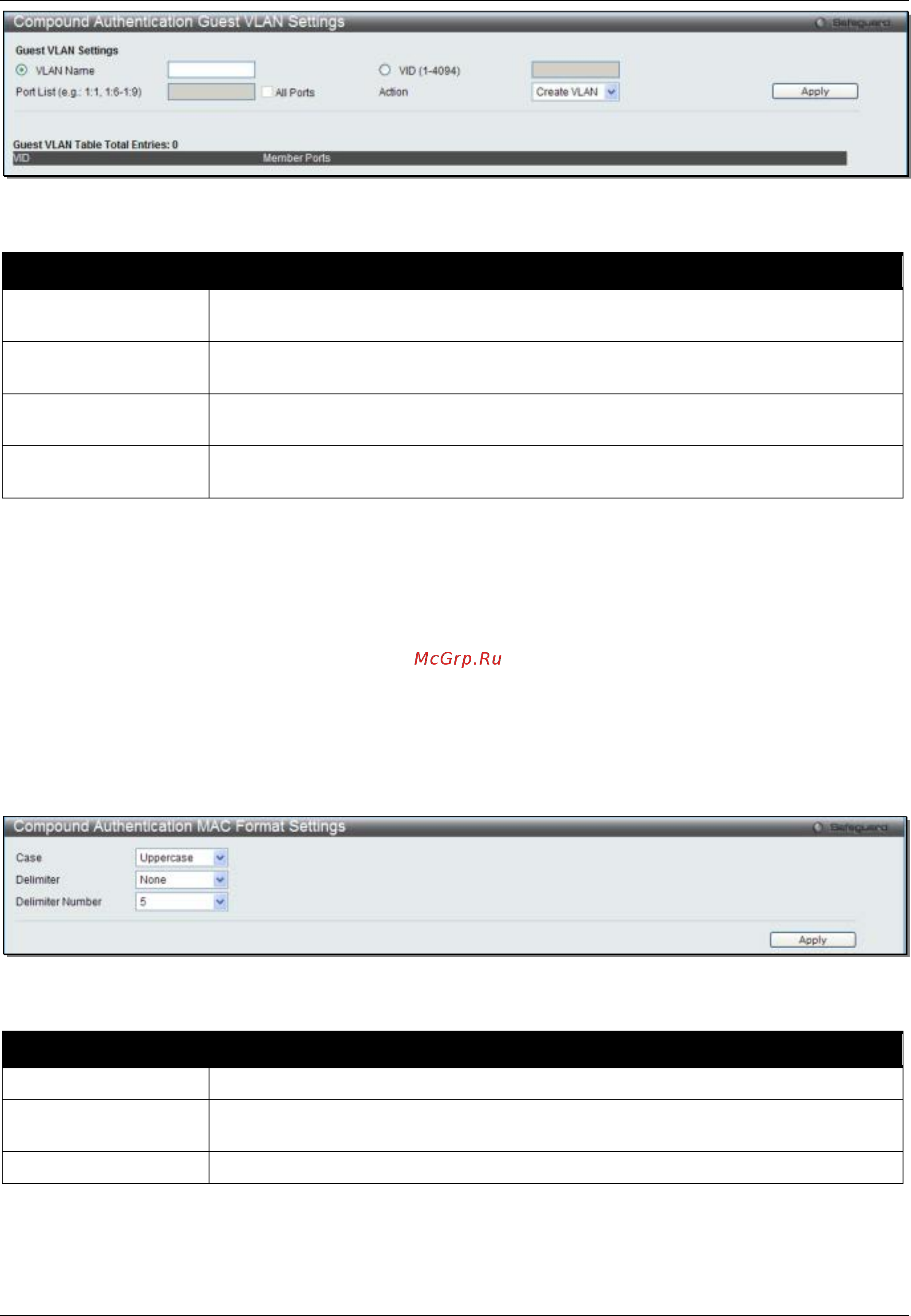

Figure 8-55 Compound Authentication Guest VLAN Settings window

The fields that can be configured are described below:

Parameter Description

VLAN Name

Click the button and assign a VLAN as a Guest VLAN. The VLAN must be an existing

static VLAN.

VID (1-4094)

Click the button and assign a VLAN ID for a Guest VLAN. The VLAN must be an

existing static VLAN before this VID can be configured.

Port List The list of ports to be configured. Alternatively, tick the All Ports check box to set

every port at once.

Action Use the drop-down menu to choose the desired operation: Create VLAN, Add Ports,

or Delete Ports.

Click the Apply button to accept the changes made.

Click the Delete button to remove the specific entry.

Once properly configured, the Guest VLAN and associated ports will be listed in the lower part of the window.

Compound Authentication MAC Format Settings (RI and EI

Mode Only)

This window is used to configure the MAC address format to be used for authenticating the user name via the

RADIUS server.

To view this window, click Security > Compound Authentication > Compound Authentication MAC Format

Settings as shown below:

Figure 8-56 Compound Authentication MAC Format Settings window

The fields that can be configured are described below:

Parameter Description

Case

Select to use uppercase or lowercase format.

Delimiter Select to have Hyphen, Colon or Dot when entering the MAC address. Select None

for not having any delimiter.

Delimiter Number

Select number of delimiters in the MAC address.

Click the Apply button to accept the changes made.
