xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
15

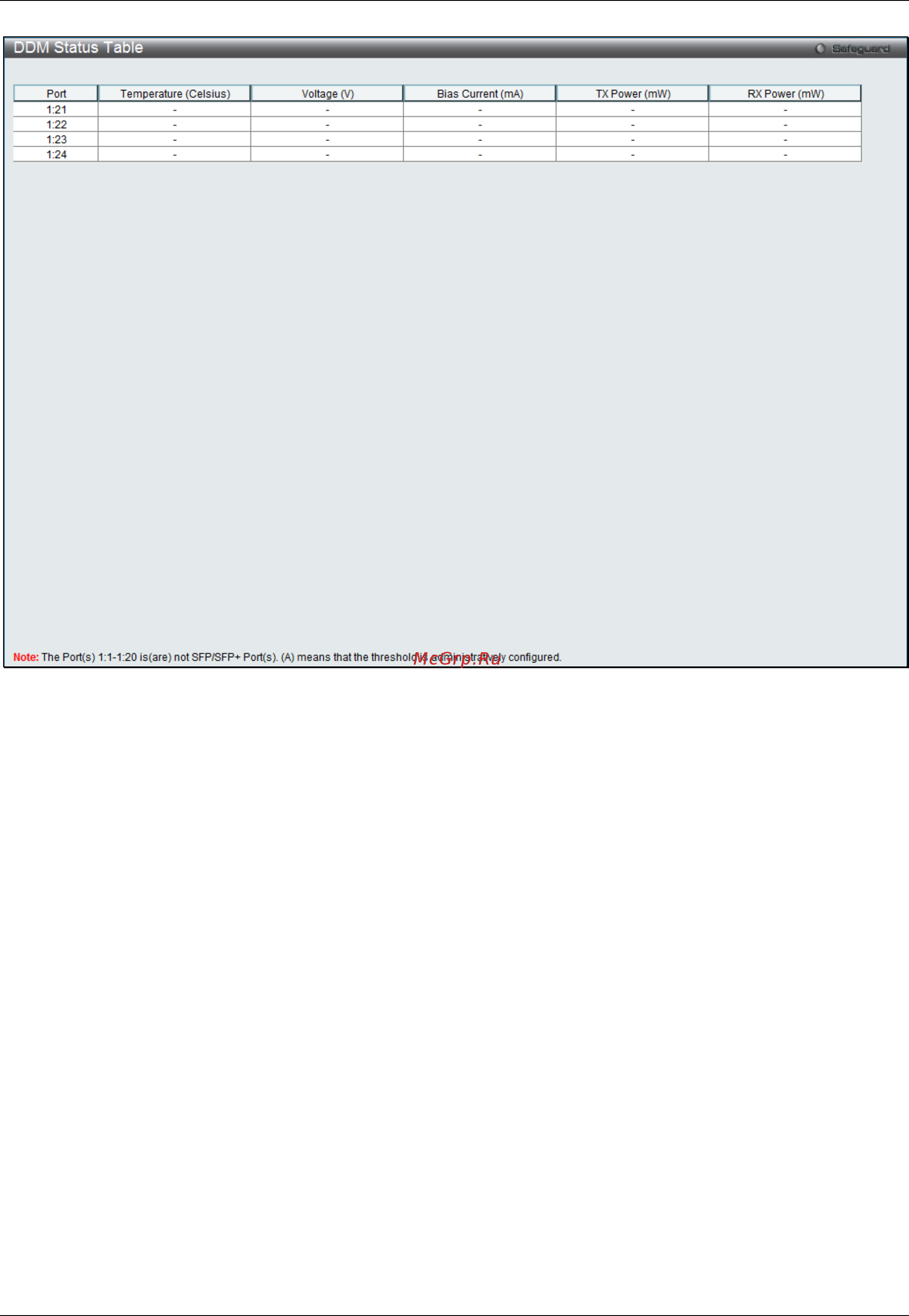

Figure 2-11 DDM Status Table window
Port Settings
This window is used to configure the details of the switch ports.
To view the following window, click System Configuration > Port Configuration > Port Settings, as shown
below:
