xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide

444

default value is one second.

Record Number Select number of times the Switch will be polled between 20 and 200. The default

value is 200.

Show/Hide

Check whether or not to display Port Util.

Click the Apply button to accept the changes made for each individual section.

Statistics

Port Statistics

Packets

The Web manager allows various packet statistics to be viewed as either a line graph or a table. Six windows are

offered.

Received (RX)

To select a port to view these statistics for, select the port by using the Port drop-down menu. The user may also

use the real-time graphic of the Switch at the top of the web page by simply clicking on a port.

To view this window, click Monitoring > Statistics > Port Statistics > Packets > Received (RX) as shown below:

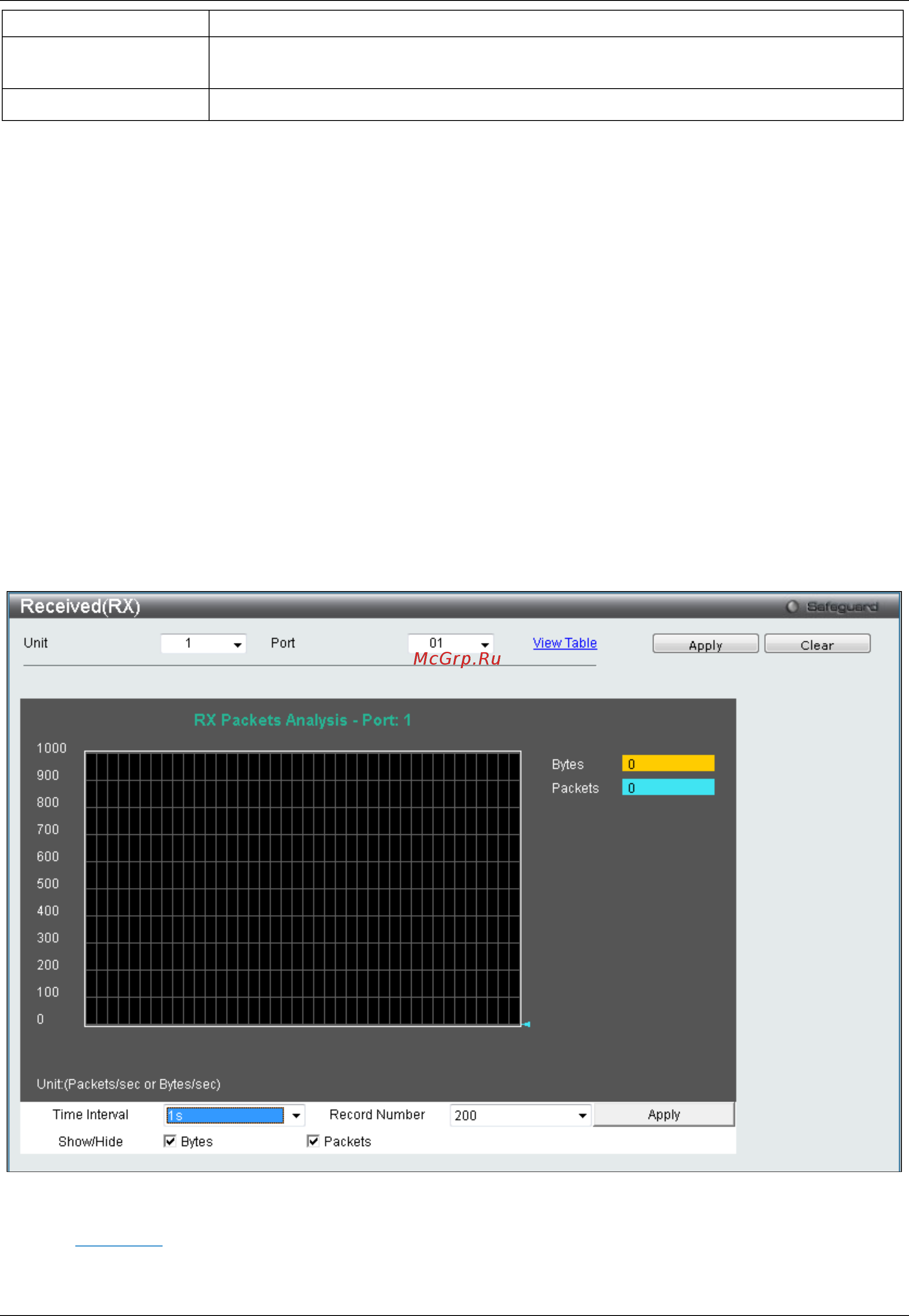

Figure 11-4 Received (RX) window (for Bytes and Packets)

Click the View Table link to display the information in a table rather than a line graph.
