choose from are values between 0-7.

Click the Apply button to accept the changes made.

Click the <<Back button to discard the changes made and return to the previous page.

CFM Port Settings

This window is used to enable or disable the CFM function on a per-port basis.

To view this window, click OAM > CFM > CFM Port Settings, as shown below:

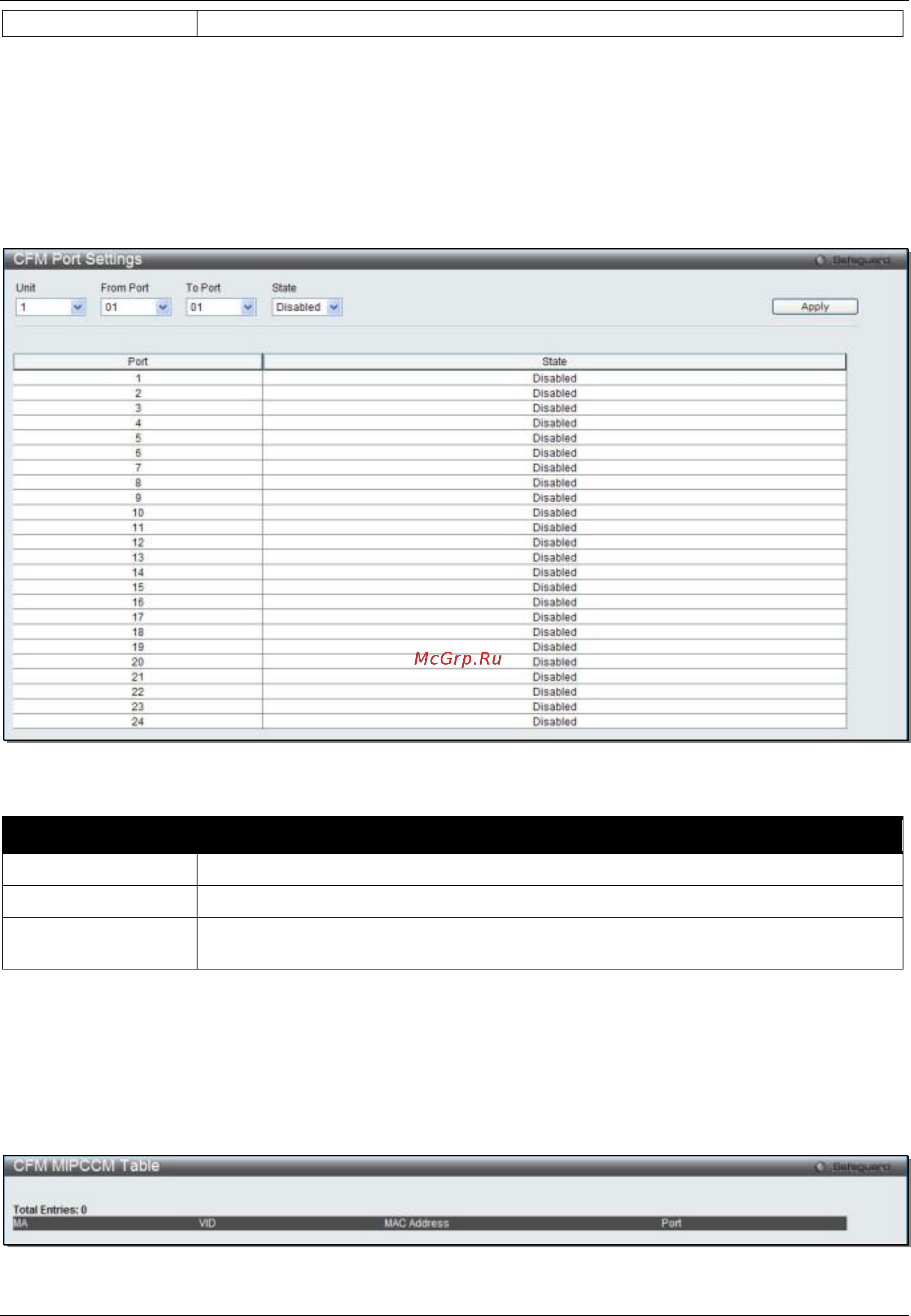

Figure 10-10 CFM Port Settings Window

The fields that can be configured are described below:

Parameter Description

Unit

Select the unit ID to be configured. (EI Mode Only)

From Port / To Port

Use the drop-down menus to select a range of ports to be configuration.

State

Use the drop-down menu to enable or disable the state of specific port regarding the

CFM configuration.

Click the Apply button to accept the changes made.

CFM MIPCCM Table

This window is used to show the MIP CCM database entries.

To view this window, click OAM > CFM > CFM MIPCCM Table, as shown below:

Figure 10-11 CFM MIPCCM Table Window
