xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
374
To view this window, click Security > DHCP Server Screening > DHCP Server Screening Port Settings as
shown below:

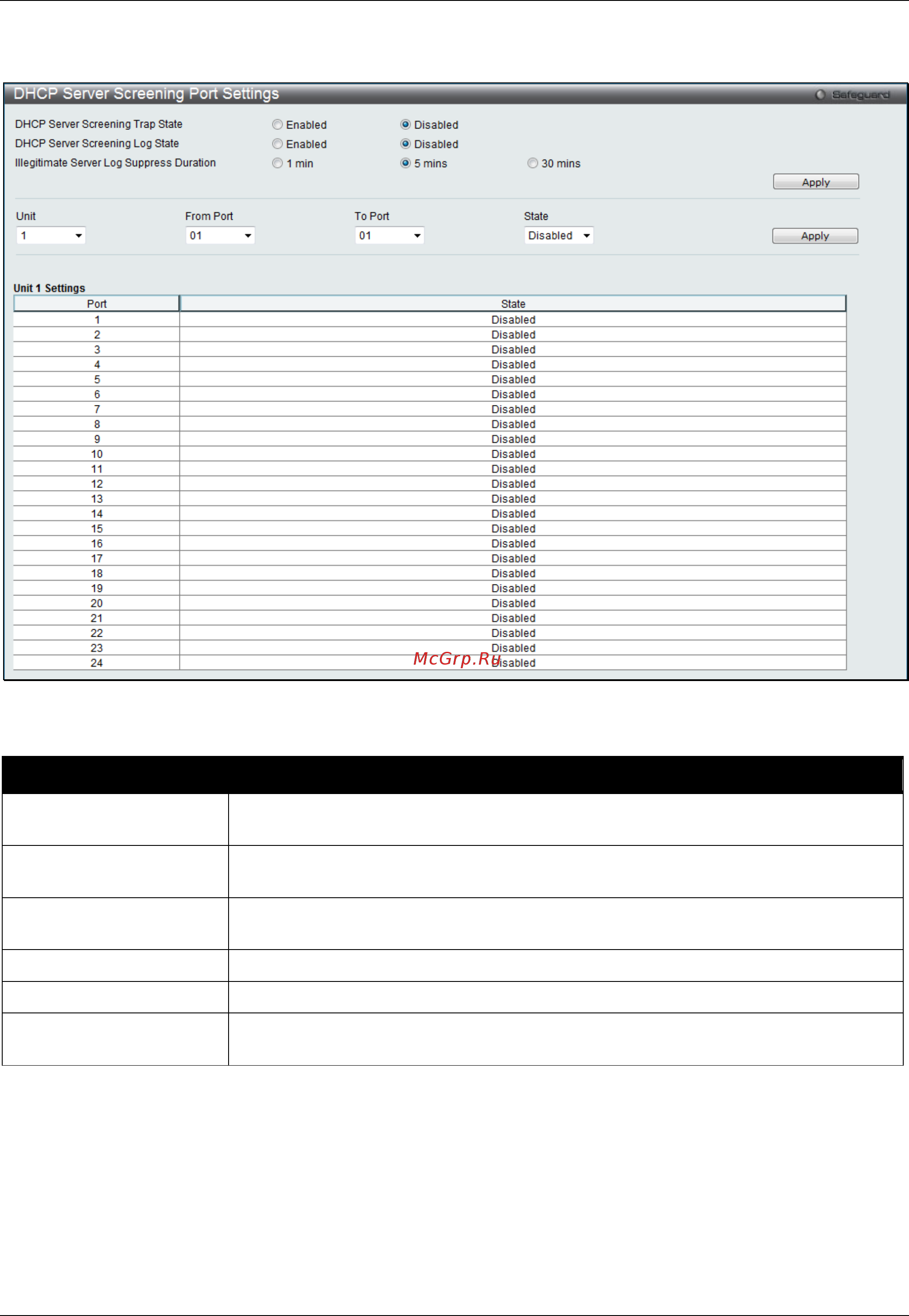

Figure 8-68 DHCP Server Screening Port Settings window
The fields that can be configured are described below:
Parameter Description
DHCP Server Screening
Trap State
Click to enable or disable the DHCP server screening trap state.
DHCP Server Screening
Log State
Click to enable or disable the DHCP server screening log state.
Illegitimate Server Log
Suppress Duration
Choose an illegal server log suppress duration of 1 minute, 5 minutes, or 30
minutes.
Unit
Select the unit you want to configure. (EI and SI Mode Only)
From Port / To Port
Use the drop-down menus to select a range of ports to be configured.
State Choose Enabled to enable the DHCP server screening or Disabled to disable it.
The default is Disabled.
Click the Apply button to accept the changes made for each individual section.
DHCP Offer Permit Entry Settings
Users can add or delete permit entries in this window.
To view this window, click Security > DHCP Server Screening > DHCP Offer Permit Entry Settings as shown
below:
