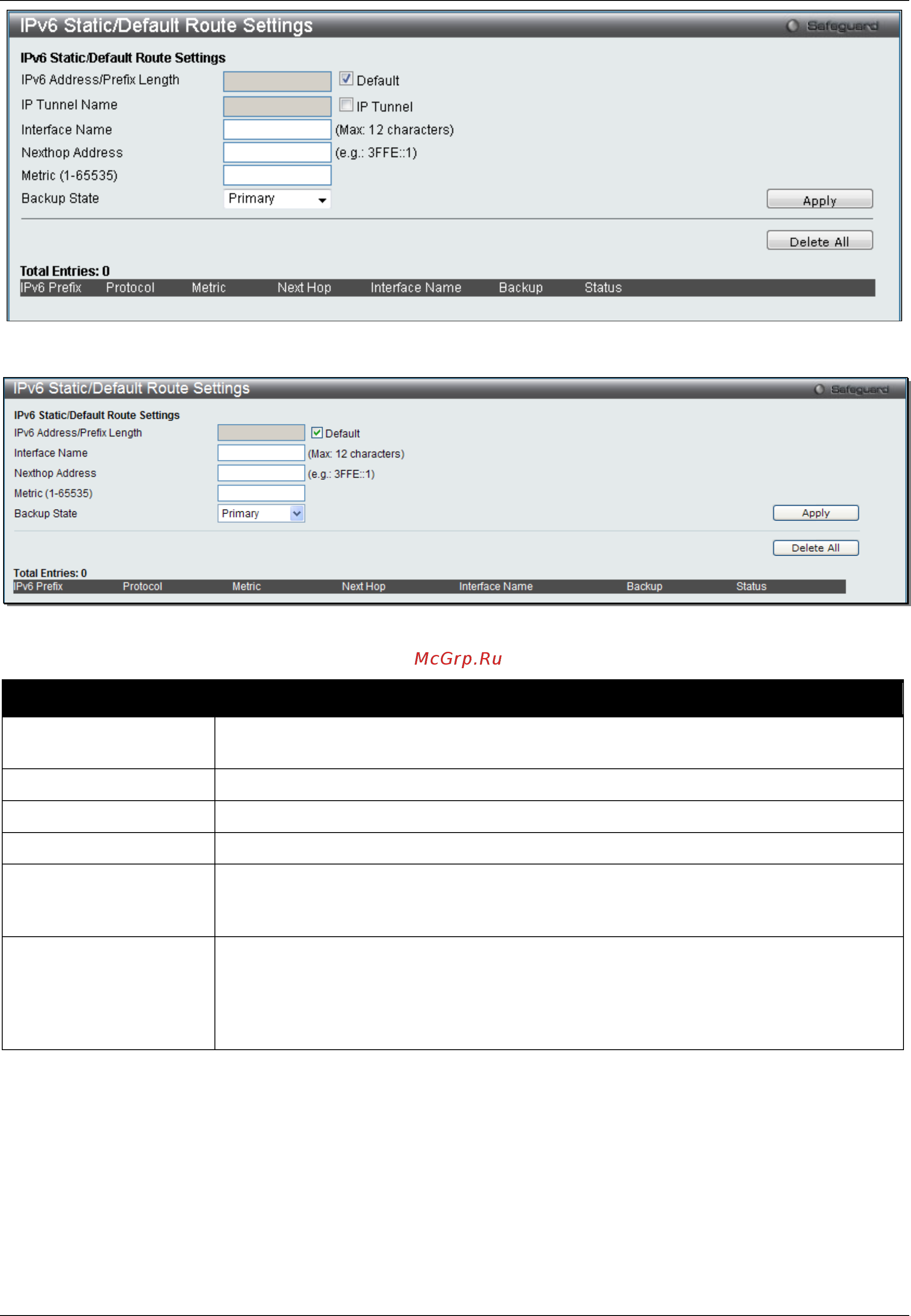

Figure 5-8 IPv6 Static/Default Route Settings window (RI Mode Only)

Figure 5-9 IPv6 Static/Default Route Settings window (EI Mode Only)

The fields that can be configured are described below:

Parameter Description

IPv6 Address/Prefix

Length

This field allows the entry of an IPv6 address to be assigned to the static route. Tick

the Default check box to assign to the default route.

IP Tunnel Name

Tick the IP Tunnel option and enter the IP tunnel name used here. (RI Mode Only)

Interface Name

The IP Interface where the static IPv6 route is created.

Nexthop Address

The corresponding IPv6 address for the next hop gateway address in IPv6 format.

Metric (1-65535)

The metric of the IPv6 interface entered into the table representing the number of

routers between the Switch and the IPv6 address above. Metric values allowed are

between 1 and 65535.

Backup State

Each IP address can only have one primary route, while other routes should be

assigned to the backup state. When the primary route failed, the Switch will try the

backup routes according to the order learnt by the routing table until route success.

This field represents the backup state for the IPv6 configured. This field may be

Primary or Backup.

Click the Apply button to accept the changes made.

Click the Delete button to delete the corresponding entry.

Click the Delete All button to remove all the entries listed.

IPv6 Route Table

This window is used to display the current IPv6 routing table or specified route entries.

To view the following window, click L3 Features > IPv6 Route Table, as shown below:
