Installation
Please read the following carefully when installing this unit.
Optional Projection Lens
Mount the optional projection lens (P. 60). For details on mounting the lens, please consult your authorized dealer.

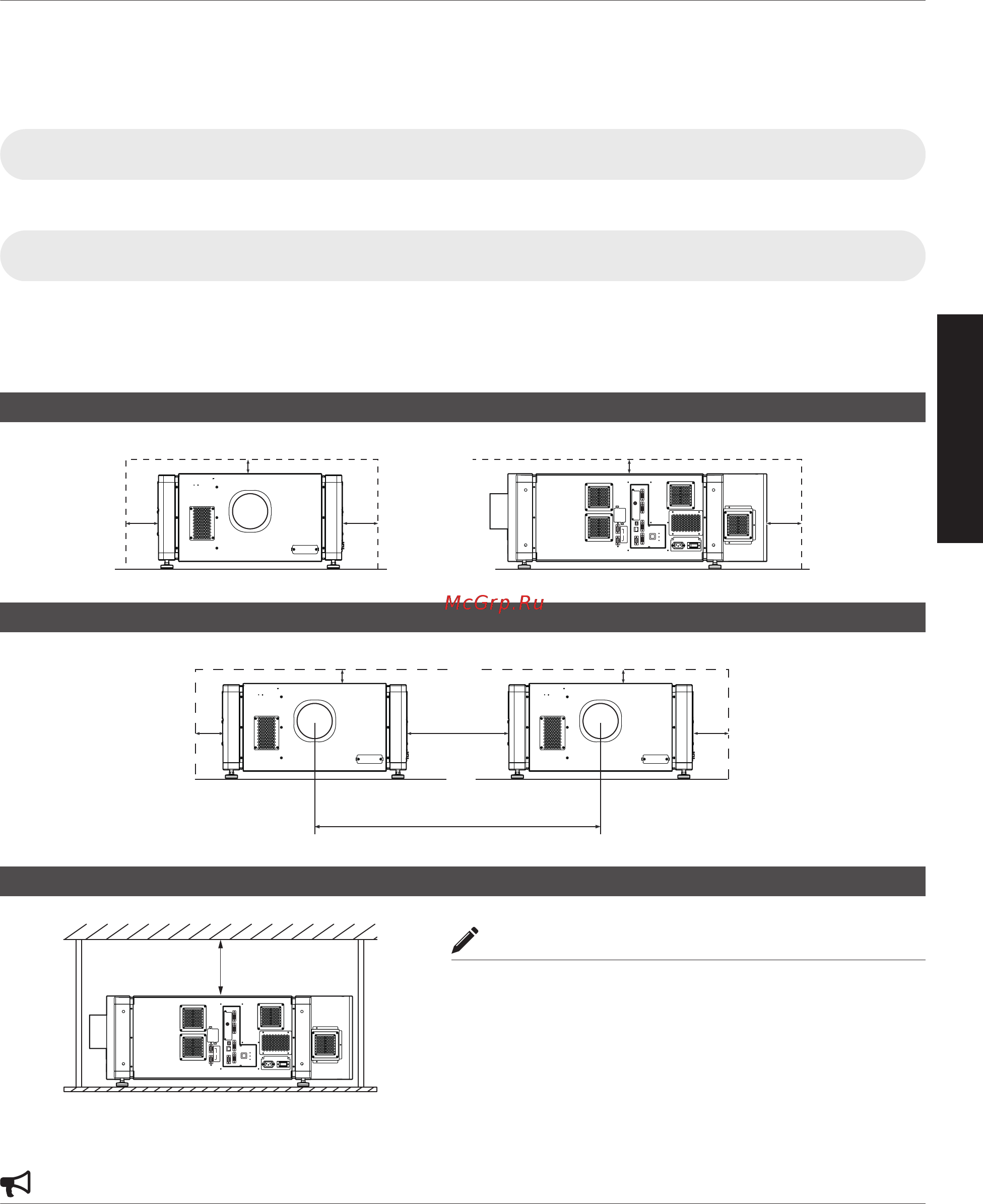

Minimum Space Required
Do not use a cover that may enclose this unit or block the air inlets/vent holes. Allow sufficient space around this unit.
When this unit is enclosed in a space with dimensions as indicated below, ventilate accordingly so that the internal and
external temperatures are the same.
When using one set of projector
.
OPERATE I/B
DVI 3
USB
LAN
RS-232C
STANDBY/ON
LAMP
WARNING
DVI 4
DVI 1
DVI 2
e-shift Sync
RS-232C
1
2
300 mm
600 mm 600 mm
600 mm
300 mm
When using two sets of projectors side by side
.
300 mm
1300 mm
640 mm
600 mm 600 mm
300 mm
When the projector is suspended
MEMO
0
To prevent the projector from falling or toppling, it is
recommended that
the holder be fastened to the unit using
bolts.
0
To mount
the projector to the ceiling, mount a special shelf
to the ceiling, followed by installing the unit on the shelf.
For safety and maintenance purposes, equipment that
eases adjustment to a suitable height for maintenance is
required.
CAUTION
0
Special expertise and techniques are required for mounting this unit. Be sure to ask your dealer or a specialist to
perform mounting.
OPERATE I/B
DVI 3
USB
LAN
RS-232C
STANDBY/ON
LAMP
WARNING
DVI 4
DVI 1
DVI 2
e-shift Sync
RS-232C
1
2
300 mm and
above
11
Connection and Installation
