JVC DLA-VS4810 [19/64] Dvi 3 dvi 1

DVI 3DVI 1

DVI 1

DVI 4DVI 3DVI 2DVI 1

DVI 1

DVI 4DVI 3

DVI 2

Cross4 Stripes

2 StripesNormal

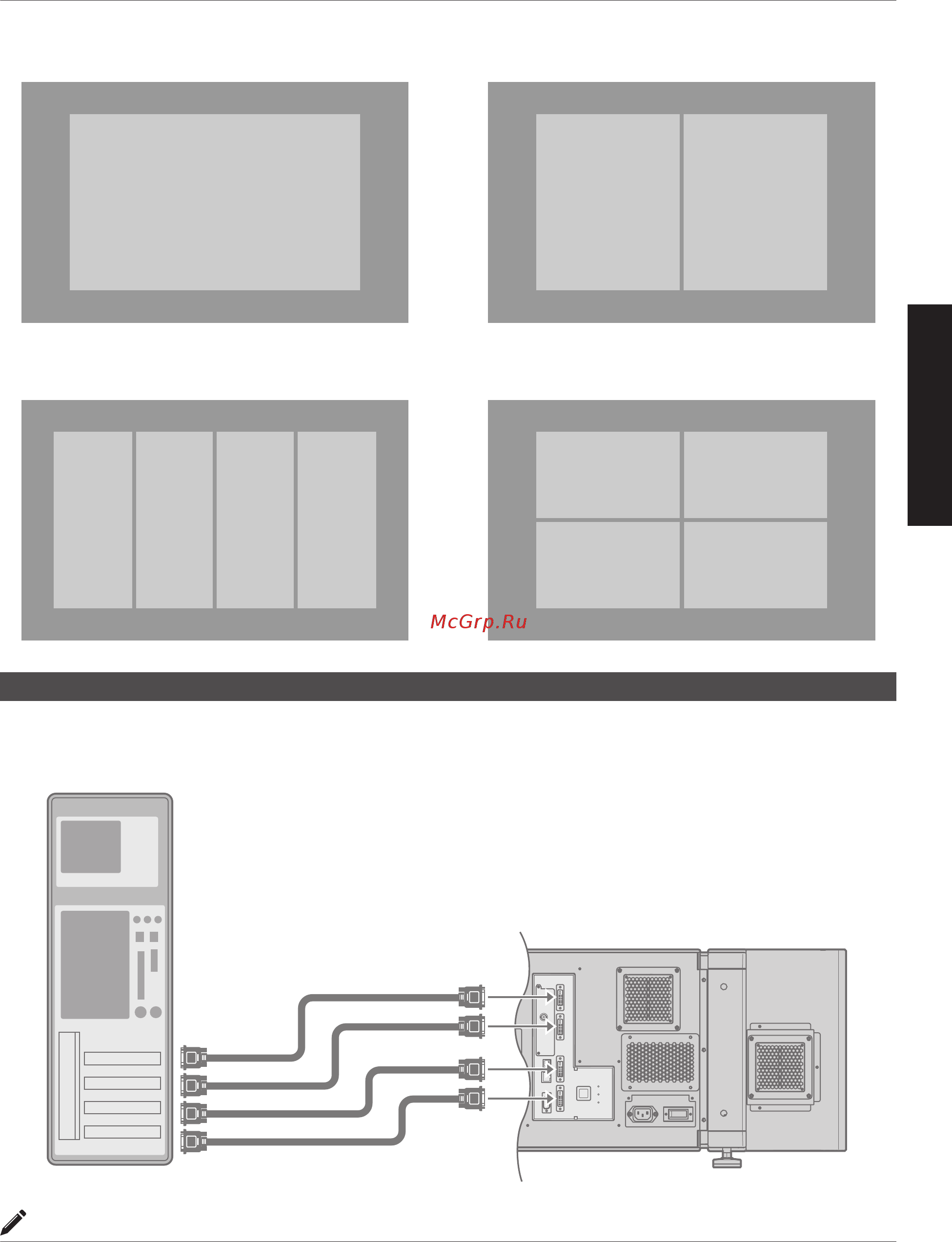

Connection During Single-Screen Mode Display

Below is the connection example for four-channel signals from the computer.

For two-channel signals from the computer, connect to the [DVI 1] and [DVI 3] terminals of this projector.

OPERATE I/B

DVI 3

USB

LAN

RS-232C

STANDBY/ON

LAMP

WARNI NG

DVI 4

DVI 1

DVI 2

e-shift Sync

RS-232C

DVI-D Cable

(Sold Separately)

To DVI

Terminal

Desktop Computer

MEMO

Depending on your DVI-D cable, the signal may attenuate and the image become unstable.

Use of DVI-D cables compliant with the DDWG standard is recommended.

Connection and Installation
