4

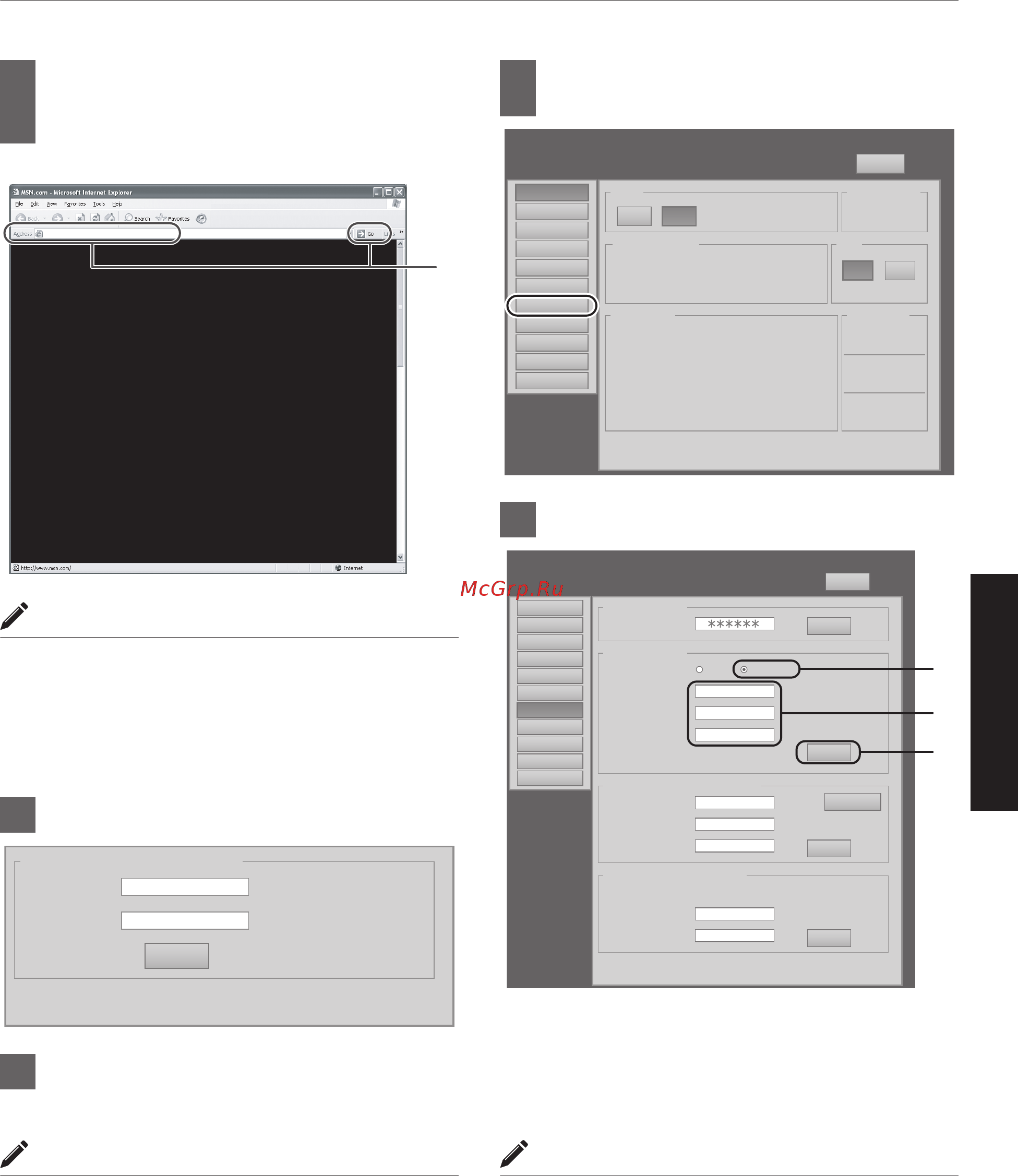

Enter “http://192.168.0.2” in the
address field of the Internet Explorer,
and click “Go”
0
A login screen for this projector appears.
.
http://192.168.0.2
4
MEMO
0
When “LAN
Setting” in Internet Explorer is set to “Use
a proxy server for your LAN” it may not be possible to
designate addresses directly. Change the proxy
settings.
0
If a
“Security Warning” screen appears, click “OK” and
continue.
5
Enter “advanced” in “Login Name”
.
Input Your Login Name & Password
Login Name advanced
Password
LOGIN
6
Click “LOGIN”
0
The “Main” menu for this projector appears.
MEMO
0
You can alter the user name and password in the
“Admin.Network” menu. Specify a user name and
password of not more than eight single-byte
alphanumeric characters. (P. 43)
0
If you have forgotten the password, please consult
your authorized dealer.
7
Click “Admin.Network” in the “Main”
menu
.
Main
DVI Rate(Hz) Pixel H Pixel V Link
1 60.00 2048 2400 Dual
2
3 60.00 2048 2400 Dual
4
Setting
Convergence
Lens
Option
Admin.Network
Admin.E-Mail
Admin.Option
Admin.Signal
License
Logout
host PJ-1
user: advanced
Power
Signal Status
Warning Status
Temperature
10h59m
Light Source Time Hide
Exhaust
30.3 deg.C
Intake
30.3 deg.C
Inside
30.3 deg.C
ON OFF
ONOFF
PROJECTION None
8
Set the IP address for this projector
.
Main
Setting
Convergence
Lens
Option
Admin.Option
Admin.Signal
Admin.Network
Admin.Mail
Logout
host PJ-1
user: advanced
Host Name Setting
SET
Host Name
PJ
IP Address Setting
SET
DHCP Client DHCP
IP Address 192.168.1.100
User Login Name/Password Change
SET
Initialize
User Name root
New Password
Confirm
New Password
Admin. Login Password Change
SET
User Name advanced
New Password
Confirm
New Password
Subnet Mask 255.255.255.0
Default Gateway 192.168.1.1
Mac Address 01:23:45:67:89:AB
STATIC IP
License
A
B
C
A
Select “STATIC IP” in “DHCP Client”
B
Enter the
values for “IP Address”, “Subnet Mask”
and “Default Gateway”
C
Click “SET”
MEMO
0
Access
from
computers may not be successful as this
projector’s IP address has been changed. Set and
change the computer’s IP address when accessing
this projector.
