JVC DLA-VS4810 [38/64] 3 setting menu
![JVC DLA-VS4810 [38/64] 3 setting menu](/views2/1461790/page38/bg26.png)

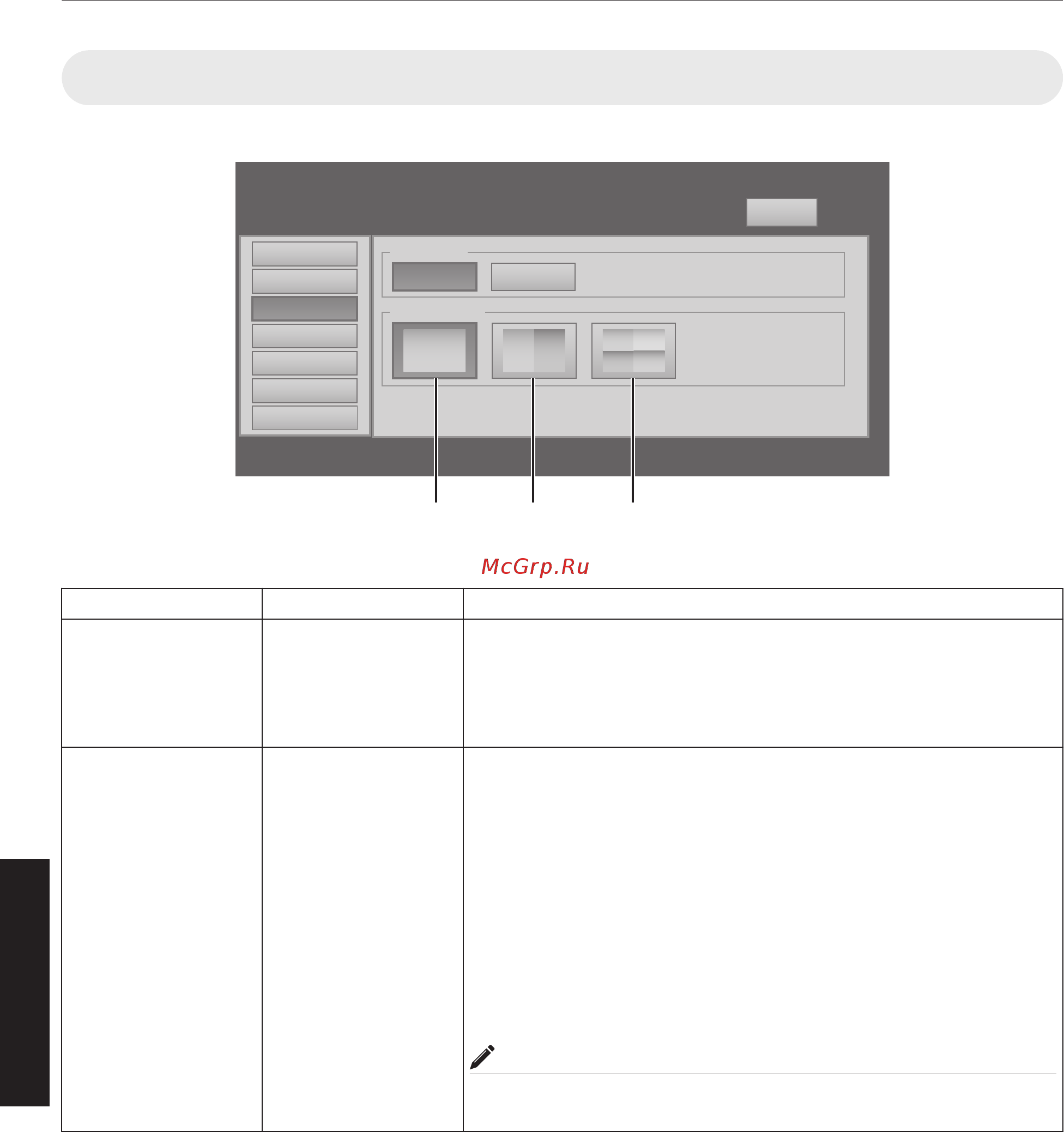

(3) Setting Menu
This menu is used for specifying the input level of the terminal and the display mode.
.
Setting
Convergence
Lens
Option
Logout
host PJ-1
user: root
Input Level
Main
0-255(PC)
Display Mode
16-235
11
3
3
12
4
License
Single Double Cross
R indicates the factory default.
Item Setting Value Description
Input Level R 0-255(PC)
16-235
For specifying the input level of the video signals.
0-255(PC) :
Set to this value under normal circumstances. (Signal
level 0 to 255)
16-235 : For specifying when the signal level is between 16 and
235.
Display Mode R Single
Double
Cross
For specifying the display mode of the projection screen.
Single : Displays input signals on a single screen.
Double : Displays two different input signals on two screens.
The left screen displays images of the [DVI 1] terminal,
and the right screen displays images of the [DVI 3]
terminal.
Cross : Displays four different input signals on four screens.
The top left screen displays images of the [DVI 1]
terminal, the top right screen displays images of the [DVI
2] terminal, the bottom left screen displays images of the
[DVI 3] terminal, while the bottom right screen displays
images of the [DVI 4] terminal.
MEMO
0
Please refer to “Connecting Video Signals of the Computer”
for
details. (P. 18 to 21)
38
Operation and Settings
