JVC DLA-VS4810 [5/64] For the customers in the u s a and canada caution

For the customers In the U.S.A. and Canada

CAUTION

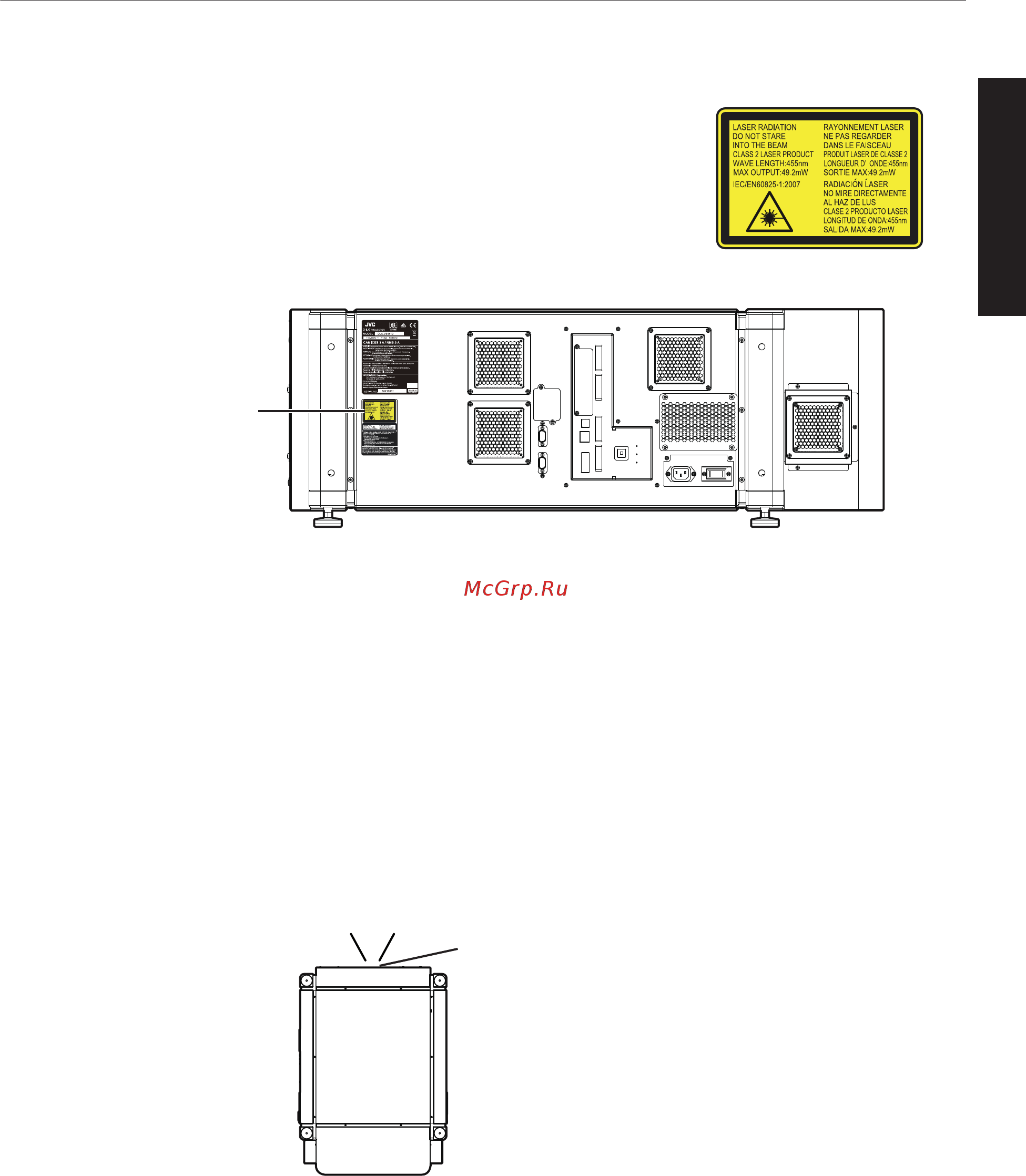

Location information of the labels

LASER RADIATION

DO NOT STARE INTO THE BEAM

CLASS 2 LASER PRODUCT

Do not look into the lens while in use.

Light source specifications

30 W Laser diodes ×12

Wavelength 450 - 460 nm

Maximum output is 49.2 W

WARNING

Beam divergence angle from lens of this unit

Laser emission port

Wide : α=25.9°

Tele : α=15.4°

CAUTION

Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

This Projector is classified as a CLASS 2 LASER PRODUCT.

This CLASS 2 LASER PRODUCT label and Caution label is located on the

Rear Side surface of the projector.

LASER CAUTION

LABEL
