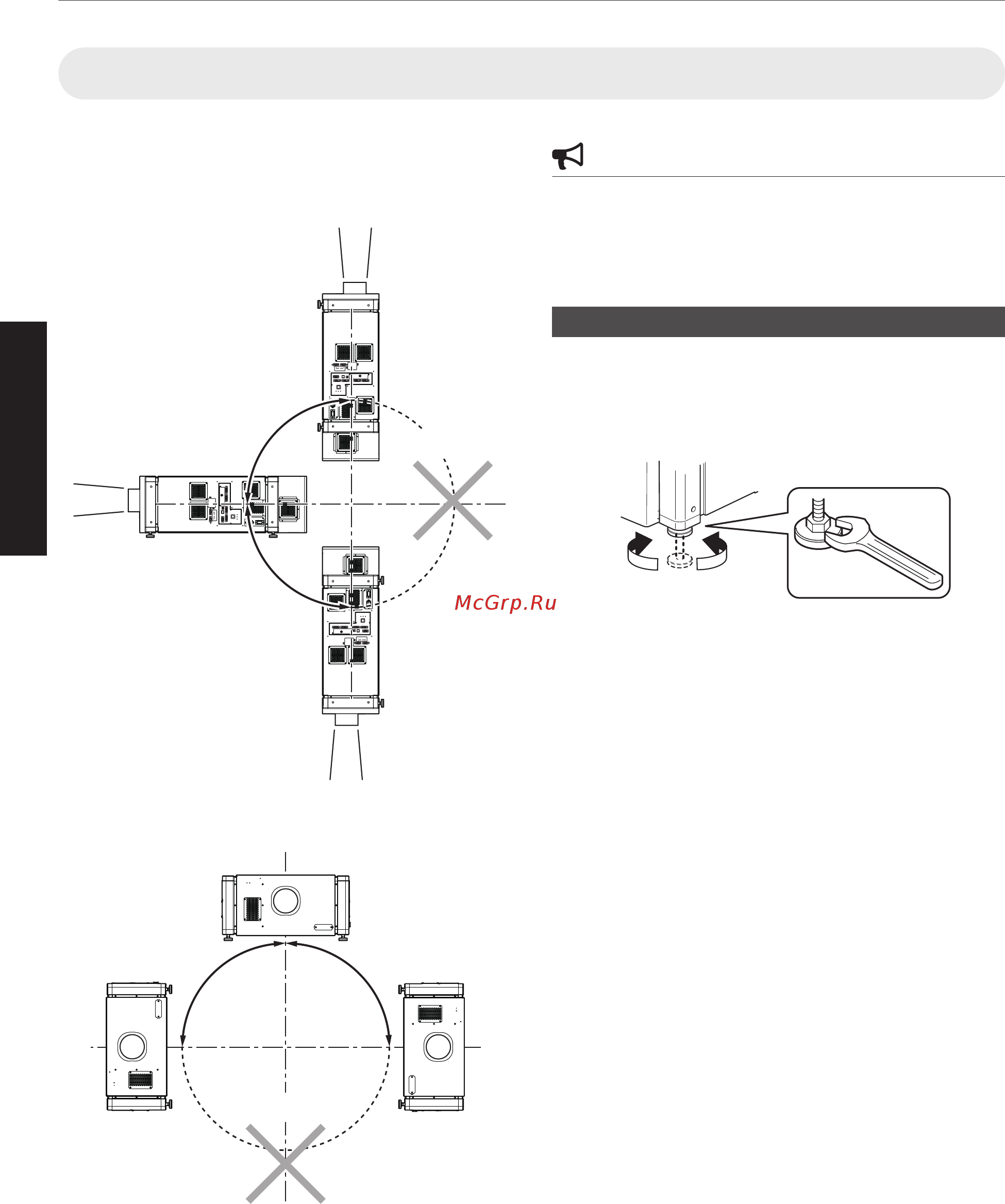

Projector Installation Angle
You can install this projector between ±90°
both
vertically
and horizontally.
Vertical Angle
.
OPERATE I/B
DVI 3
USB
LAN
RS-232C
STANDBY/ON
LAMP
WARNING
DVI 4
DVI 1
DVI 2
e-shift Sync
RS-232C
1
2
OPERATE I/B
DVI 3
USB
LAN
RS-232C
STANDBY/ON
LAMP
WARNING
DVI 4
DVI 1
DVI 2
e-shift Sync
RS-232C
1
2
OPERATE I/B
DVI 3
USB
LAN
RS-232C
STANDBY/ON
LAMP
WARNING
DVI 4
DVI 1
DVI 2
e-shift Sync
RS-232C
1
2
+90°
-90°
*Not applicable
Horizontal Angle
.
+90°
-90°
*Not applicable
CAUTION
0
Special expertise and techniques are required for
mounting this unit. Be sure to ask your dealer or a
specialist to perform mounting.
0
The projector cannot be installed upside down.
Adjusting the Inclination
Adjust the horizontal angle of the projector.
Lift the projector and turn the nut of the adjustable foot
with a spanner in the direction indicated by the arrow to
extend or
retract the foot. The adjustable range is 20 mm.
.
RetractExtend
