7
Installation on Linux System
Pharos Control is a Java application, which requires Java Runtime Environment (JRE). Make sure
that your Linux system has been installed with JRE 1.7 or 1.8.
1. Go to
https://www.tp-link.com/en/download/Pharos-Control.html
and download the software
package for Linux. Decompress the package and you can find three software files: one for Deb
system and two for RPM system (32-bit and 64-bit). Determine your Linux system type and
choose the proper software file.
2. Go to the download path of the software and enter the command line.
For Deb: sudo dpkg -i PharosControl-2.0.0-1.ub16.deb
For 32-bit RPM: sudo rpm -ih PharosControl-2.0.0-1.fc25.i686.rpm
For 64-bit RPM: sudo rpm -ih PharosControl-2.0.0-1.fc25.x86_64.rpm
3. Enter your system password.
1.3 Log in to Pharos Control
Launch the software and follow the instructions to complete the basic configuration and then log in
to the management interface.
1.3.1 Launch Pharos Control Server
Launch on Windows System

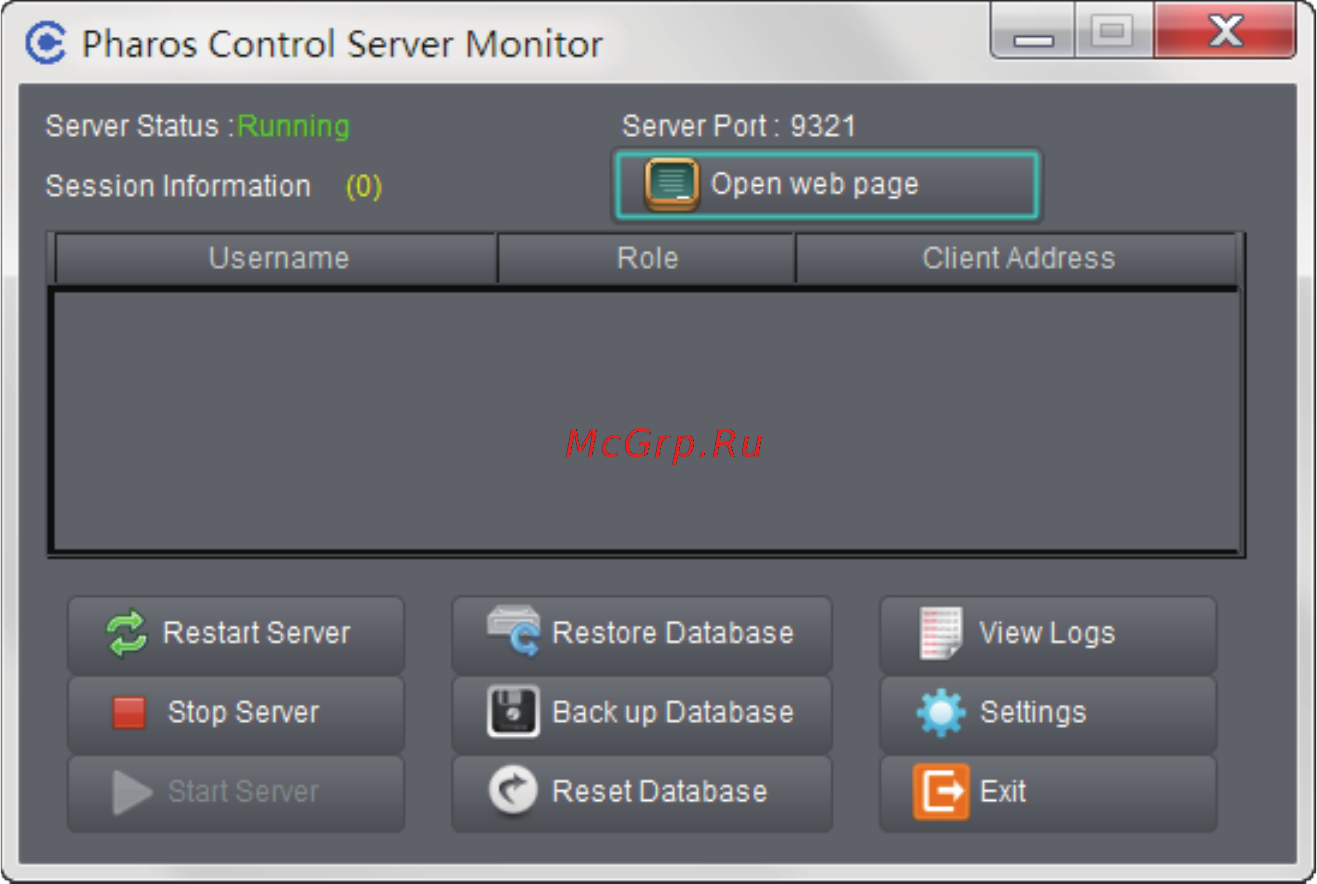

For Windows system, double-click the software icon to launch Pharos Control server. Then the
following window will pop up. You can minimize the window but do not close it.
