10
Tips:
Other hosts which are able to reach the Control Host can also manage the devices via remote access. For
example, when the IP address of the Control Host is 192.168.0.100 and the server port number is 9321, you
can enter http://192.168.0.100:9321/login or http://192.168.0.100:9321 in the web browser of other hosts to
log in to the management interface and manage the devices.
1.4 Add the Devices to be Managed
Before managing the devices, you need to add them to Pharos Control. There are two methods:
discovering the devices automatically and adding them manually.
1.4.1 Discover the Devices Automatically
Pharos Control can discover all Pharos devices currently connected to the network. Follow the
steps below to discover and add the devices to Pharos Control:

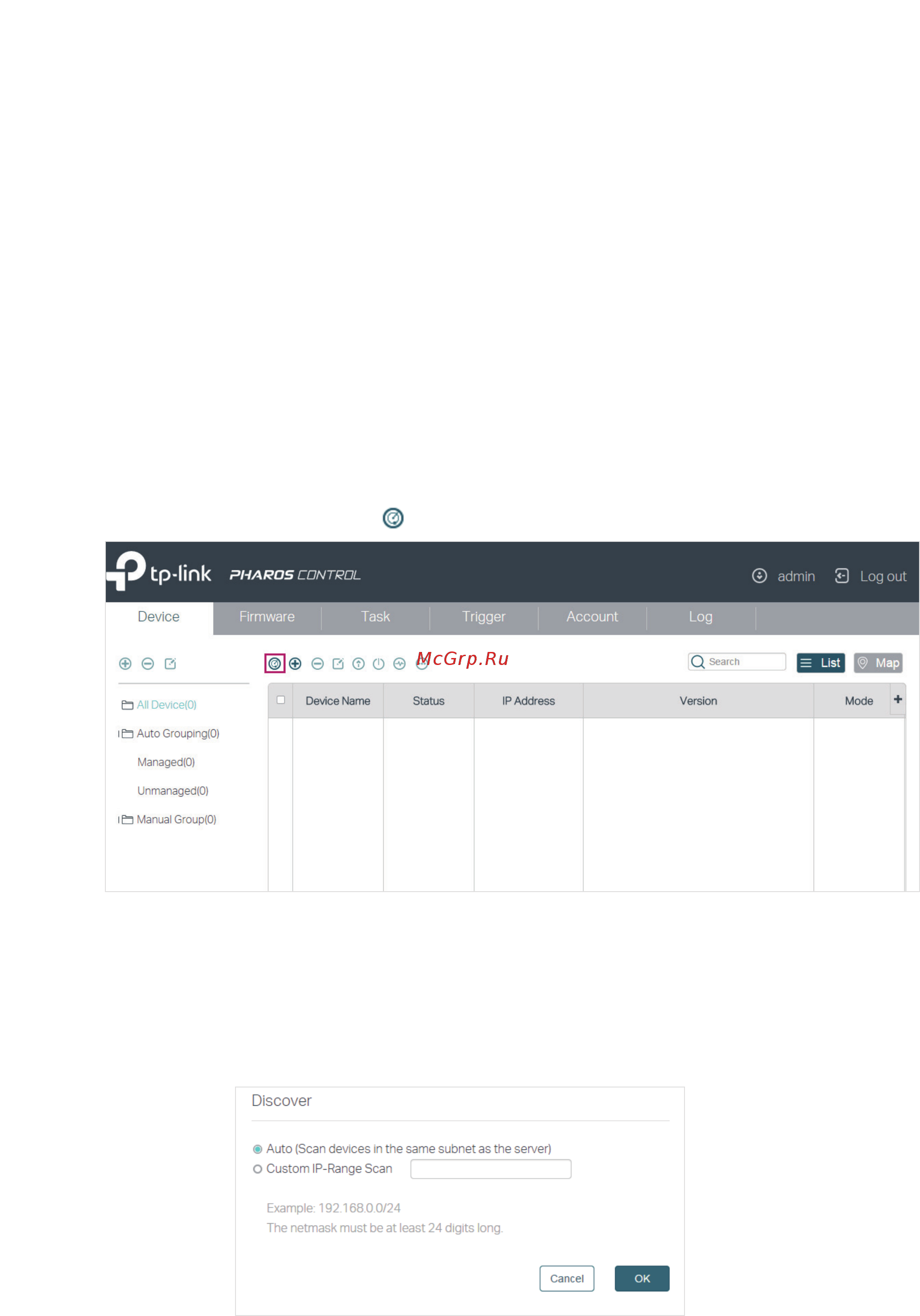

1. Go to the Device page, and click
.
2. In the pop-up window, select your desired scanning method, and click OK. There are two
methods provided: Auto and Custom IP-Range Scan. With Auto selected, Pharos Control will
scan the devices in the same subnet. With Custom IP-Range Scan selected, you can specify
the IP range of the devices, and Pharos Control will scan the devices in the IP range. Custom IP-
Range Scan should be selected if you want to scan the devices in a different subnet.
