Tp-Link CPE610 V1 [43/55] Specify a name for the task
![Tp-Link CPE610 V1 [43/55] Specify a name for the task](/views2/1467703/page43/bg2b.png)
40
1 ) Specify a name for the task.

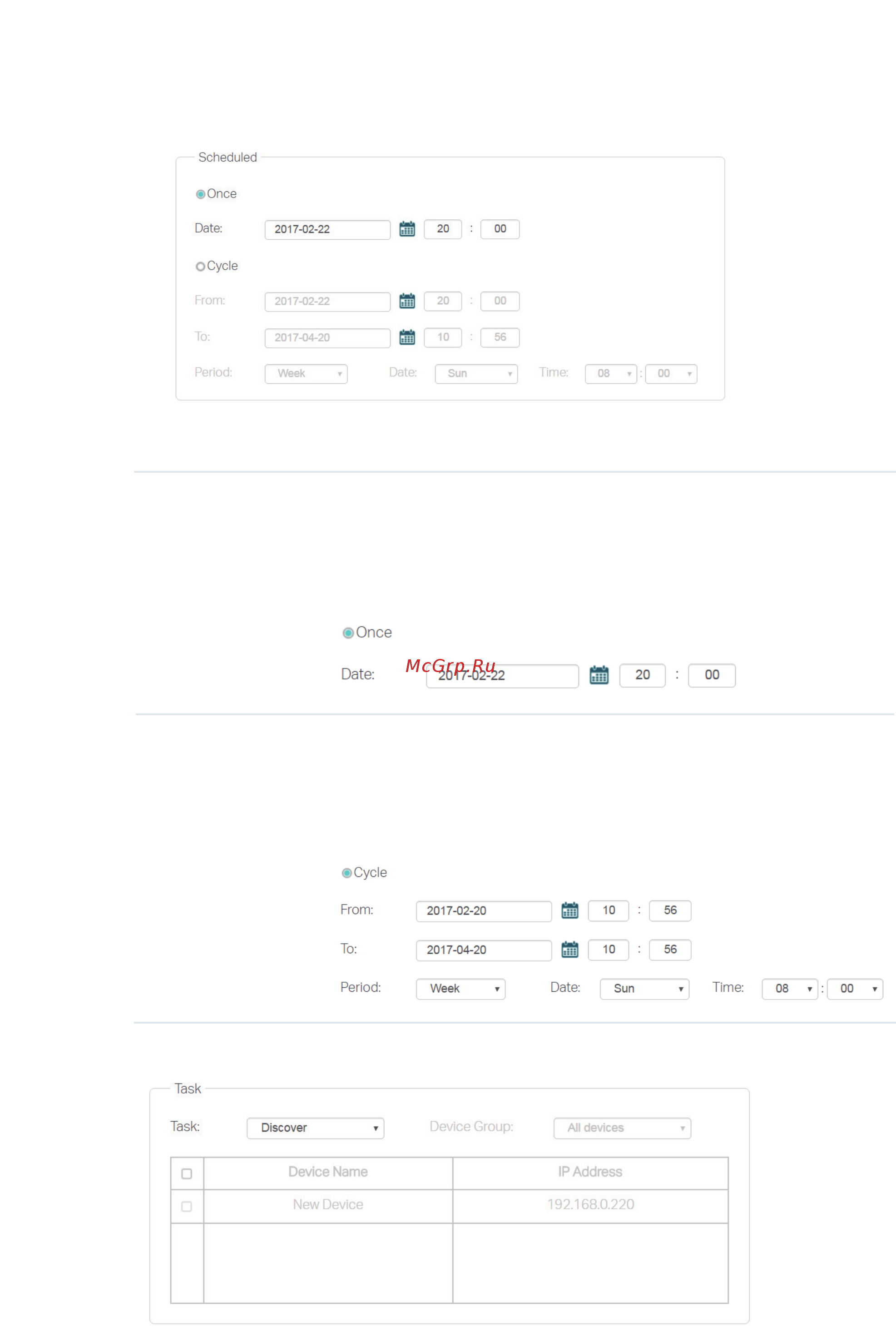

2 ) Congure the Scheduled parameters:
The following table introduces the conguration options.
Once Enable this option and specify a point in time. The task will be performed
at the specified time.
For example, the following configuration indicates that the task will be
performed at 8pm on Feb 22nd, 2017. And the task will be performed only
once.
Cycle Enable this option and specify a time range and the task interval. During
the time range, the task will be performed at every interval.
For example, the following configuration indicates that from Feb 20th,
2017 to Apr 20th, 2017, the task will be performed at 8 am each Sunday
morning.
3 ) Select a task type and congure the corresponding options.
